Wonwoo WCA-H308 IR Rugged 2MP PTZ Camera – Sony CMOS, 30x Optical Zoom, 1080p60, WDR, Defog, DIS, H.265/H.264, Triple Stream, Edge Storage, IPv6, ONVIF

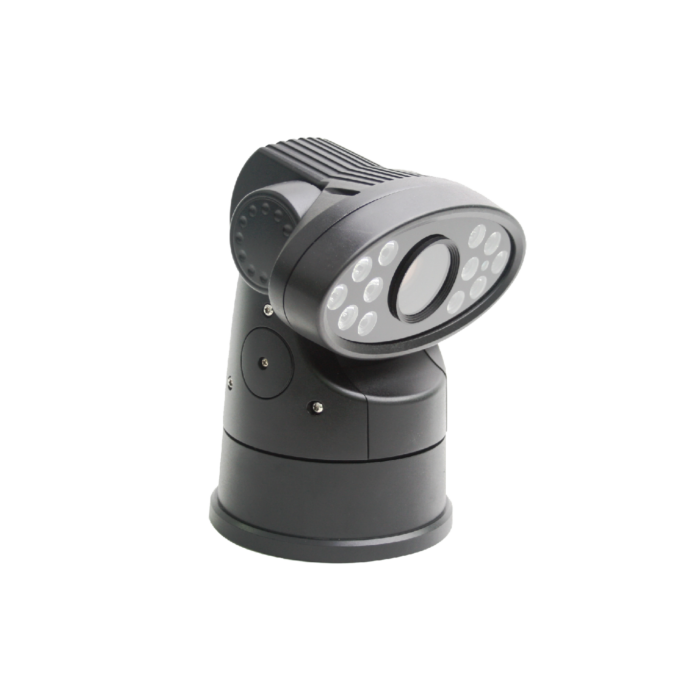

The NDAA compliant Wonwoo WCA-H308 is a high-performance 2MP PTZ camera featuring a 1/2.8" Sony CMOS sensor delivering crisp 1080p resolution up to 60fps. It integrates a powerful 30x optical zoom lens (4.6mm–136mm, F1.63–F4.85) with an additional 32x digital zoom for precise monitoring across vast distances. Designed for rugged environments, it supports continuous 360° pan rotation and tilt from 345° to 90°, with pan speed up to 110°/sec and tilt speed up to 60°/sec with 0.3° accuracy.
Equipped with 12 IR LEDs, it provides night vision up to 120 meters. Advanced imaging features include Day/Night ICR, Wide Dynamic Range (WDR), digital noise reduction (DNR), digital image stabilization, defog, and high light compensation to maintain clarity in challenging lighting conditions. The camera supports privacy masking and mechanical auto flip for versatile installation.
Networking capabilities include IPv4/IPv6, triple streaming with H.265/H.264/MJPEG codecs, and ultra-low latency under 200ms at 2MP video streaming. It supports edge storage up to 64GB via MicroSD/SDXC cards and is ONVIF-compliant for seamless integration. Robust security protocols (MD5, SSL, SHA256) and flexible network features (HTTP, RTP/RTSP, TCP/IP, FTP, DHCP, SNMP) ensure reliable and secure remote access.
Powered by DC 12–24V with a max consumption of 40W, the aluminum housing measures 177x212x145mm and weighs 2.86kg. Operating temperature ranges from -20°C to +50°C with 10–90% RH.
Features:
- 1/2.8" Sony CMOS sensor, 2.13MP active pixels
- Full HD 1080p up to 60fps video output
- 30x optical zoom (4.6–136mm) + 32x digital zoom
- 12 IR LEDs for night vision up to 120m
- Wide Dynamic Range (WDR) & Digital Noise Reduction (DNR)
- Digital Image Stabilization (DIS) & Defog function
- 360° continuous pan; tilt 345° to 90° with 0.3° accuracy
- Triple stream support: H.265, H.264, MJPEG
- Edge storage support up to 64GB (MicroSD/SDXC)
- IPv4/IPv6, ONVIF compliant, secure streaming protocols
- Rugged aluminum housing, operating temp -20°C to 50°C
Applications:
- Outdoor and industrial surveillance
- Critical infrastructure monitoring
- Traffic and perimeter security
- Low-light and night time monitoring
- Large facility or campus security
- Integration with VMS and network security systems
| Image Sensor | 1/2.8" Sony CMOS |
| Total Pixels | 1945(H) × 1109(V) = 2.16M |
| Active Pixels | 1945(H) × 1097(V) = 2.13M |
| Video Format | 1080p@60/50fps, 1080p@30/25fps, 720p@60/50fps, 720p@30/25fps |
| Min. Illumination (Color) | 0.005 lux / DSS 0.00125 lux |
| Min. Illumination (BW) | 0.0008 lux / DSS 0.0002 lux |
| S/N Ratio | More than 50dB (AGC off) |
| Video Output | Network, CVBS |
| Lens Type | 30x Day & Night Zoom Lens |
| Zoom Ratio | Optical 30x, Digital ×32 |
| Focal Length | 4.6 mm ~ 136.0 mm |
| Aperture Ratio | F1.63 (Wide) ~ F4.85 (Tele) |
| Angle of View (Wide) | 73.3° (D), 65.4° (H), 38.3° (V) |
| Pan | 360° Continuous |
| Pan Speed | 110°/sec, 0.3° Accuracy |
| Tilt Range | Bottom 15°–270°, Top 345°–90°, proportional to zoom |
| Tilt Speed | 60°/sec, 0.3° Accuracy |
| Presets | 255 points, <0.1° Accuracy |
| Day & Night | Auto / Day / Night (ICR) |
| WDR / BLC / HLC / ACE | On / Off / Auto |
| DNR | Auto / Off / Low / Middle / High |
| Defog | On / Off |
| Image Stabilization | Digital Image Stabilization (DIS) |
| Privacy Mask | 8 zones |
| Digital Slow Shutter | Off / ×2 / ×4 / ×8 (60fps/50fps mode only) |
| White Balance | Auto / Manual / Indoor / Outdoor |
| Shutter Speed | 1/30(25) to 1/30,000 sec |
| Electronic Zoom | On / Off |
| Digital I/O | 2 Alarm Inputs |
| Remote Control Interface | RS-422/485, Pelco-D, Pelco-P, Wonwoo, EZP |
| Network | RJ-45 10/100BASE-T |
| Video Compression | H.265, H.264, MJPEG |
| Max Frame Rate | 60fps @ 1920x1080 |
| Streaming Protocols | HTTP, RTP/RTSP, TCP/IP (v4/v6), UDP, FTP, Telnet, HTTPS |
| Storage | MicroSD/SDXC up to 64GB |
| Security | MD5, iptables, SSL, SHA256 |
| Web Viewer Compatibility | IE 8+, Edge, Firefox, Chrome, Safari |
| Power Source | DC 12V~24V |
| Power Consumption | Max 40W |
| Operating Temperature | -20°C to +50°C, 10%~90% RH |
| Material | Aluminum |
| Dimensions (W×H×D) | 177 × 211.8 × 145 mm |
| Weight | 2.86 kg |
