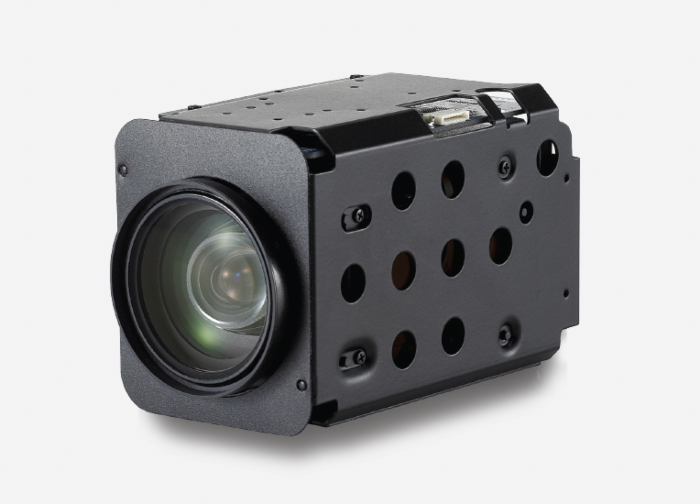

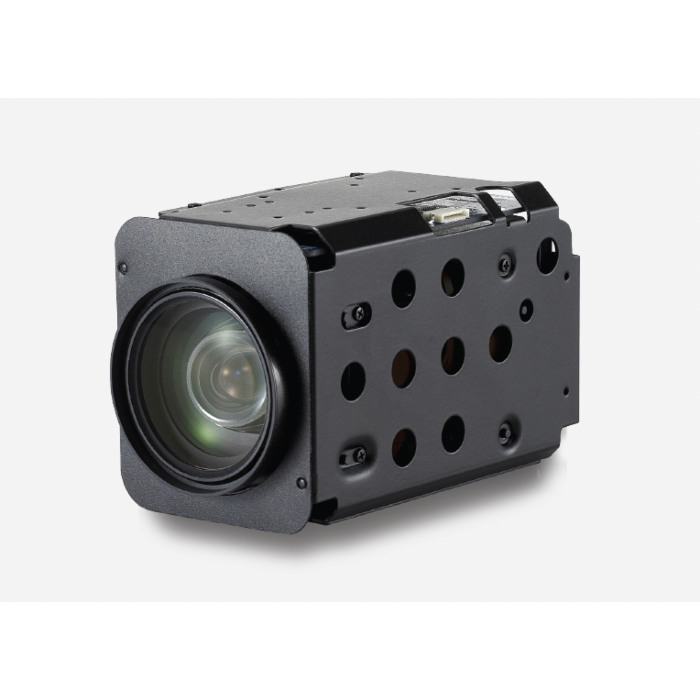

Wonwoo MM-G405 3MP HD 40x Zoom Block Camera Global Shutter with 1/3.1" Sony CMOS Sensor
The Wonwoo MM-G405 is a high‑performance 40x zoom camera module built around a 1/3.1" 3 MP Sony CMOS sensor, delivering crisp full HD imagery at up to 1080p 60 fps. With a robust day/night ICR mechanism, powerful 2D/3D digital noise reduction, and digital image stabilization, this full HD block camera provides reliable performance in diverse lighting conditions, from low‑light surveillance to high‑speed inspection tasks.
Engineers and integrators can take advantage of 40x optical zoom (4.25–170 mm), 32x digital zoom, privacy masking, high light compensation, and intelligent motion detection to build flexible, long‑range vision systems. The Wonwoo MM-G405 supports VISCA and Pelco‑D/P control protocols, offers LVDS and CVBS video outputs, and operates from 9–15 VDC, making it an ideal drop‑in zoom module for security, transportation, industrial inspection, and traffic monitoring projects worldwide.
Features:
- NDAA Compliant
- 1/3.1" 3 MP Sony CMOS progressive scan sensor
- Full HD resolution: 1080p 60/50/30/25 fps, 720p 60/50/30/25 fps
- 40x optical zoom, 4.25–170 mm focal length
- 32x digital zoom (up to 1280x effective zoom)
- Fast F1.6 (wide) to F4.95 (tele) aperture
- Day & Night (ICR) for true color and B/W low‑light imaging
- Minimum illumination down to 0.01 lux (Color DSS), 0.001 lux (B/W DSS)
- Digital slow shutter (DSS) up to ×32 (×64 at 60/50 fps)
- 2D/3D digital noise reduction for cleaner low‑light images
- Digital image stabilization for reduced vibration blur
- Privacy mask function (8 zones)
- High light compensation and back‑light compensation (BLC/HLC)
- Wide dynamic range (DWDR: off/manual/auto)
- Intelligent motion detection (4 zones) and defect detection
- Auto/one‑push/manual focus and exposure modes
- Auto/one‑push/manual/indoor/outdoor/Auto‑Ext white balance
- VISCA, Pelco‑P, and Pelco‑D protocol support
- LVDS digital and CVBS analog video outputs
- Operating temperature from −10°C−10C to +50°C
- 9–15 VDC power input, max 550 mA @ 12 VDC
- Compact block design: 54(W) × 64(H) × 101(D) mm, 355 g
Applications:
- Security surveillance
- Traffic monitoring
- Industrial inspection
- Robotics vision
- Drone payloads
- Border security
- Marine observation
- Warehouse safety
- Parking management
- Transportation hubs
| Image Sensor | 1/3.1" Sony CMOS Sensor |
| Total Pixels | 2,064 (H) × 1,592 (V) ≈ 3.28M pixels |
| Active Pixels | 2,064 (H) × 1,552 (V) ≈ 3.20M pixels |
| Scanning System | Progressive scan |
| Sync System | Internal |
| Resolution (Digital) | 1080p 60/50/30/25 fps, 720p 60/50/30/25 fps |
| Resolution (Analog) | CVBS |
| Minimum Illumination | Color (1/30s, 48dB): 0.1 lux B/W (1/30s, 48dB): 0.01 lux Color DSS (1/1s, 48dB): 0.01 lux B/W DSS (1/1s, 48dB): 0.001 lux |
| Video Output | Digital: LVDS, Analog: CVBS |
| S/N Ratio | More than 50 dB (AGC off) |
| Lens Type | 40x day & night zoom lens |
| Optical Zoom | 40x (4.25 mm to 170 mm) |
| Digital Zoom | Off / max 2x to 32x |
| Aperture Ratio | F1.6 (wide) to F4.95 (tele) |
| Angle of View | Wide (D/H/V): 70.9° / 63.6° / 38.5° Tele (H): 2.04° / 1.77° / 1.00° |
| AF Mode | Auto / One-push / Manual |
| Minimum Object Distance | 0.1 / 1.5 / 3.0 / 6.0 / 10.0 m |
| Lens Refresh | One-push / 1–10 days |
| Exposure Modes | Auto / Iris priority / Shutter priority / Manual |
| Digital Slow Shutter (DSS) | Off / ×2 / ×4 / ×8 / ×16 / ×32 (×64 at 60 or 50 fps only) |
| Flickerless | Off / On / Auto |
| Brightness | 0–14 steps |
| Back Light | Off / BLC / HLC |
| White Balance | Auto / One-push / Manual / Indoor / Outdoor / Auto-Ext |
| DNR | 2D/3D, 2D+3D |
| Mirror | Off / H / V / H&V |
| Sharpness | 0–15 steps |
| DWDR | Off / Manual / Auto |
| Defog | Off / Manual / Auto |
| Privacy Mask | Off / On (8 points) |
| Motion Detection | Off / On (4 points) |
| Defect Detection | Off / On |
| System | NTSC / PAL |
| Communication | Baud rate: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol: Pelco-P / Pelco-D / VISCA |
| Power Source | 9 V to 15 V DC |
| Power Consumption | Max 550 mA (@ 12 VDC) |
| Storage Temperature | -20°C to +60°C (0–90% RH, non-condensing) |
| Operating Temperature | -10°C to +50°C (0–90% RH, non-condensing) |
| Dimensions | 54(W) × 64(H) × 101(D) mm |
| Weight | 355 g |
