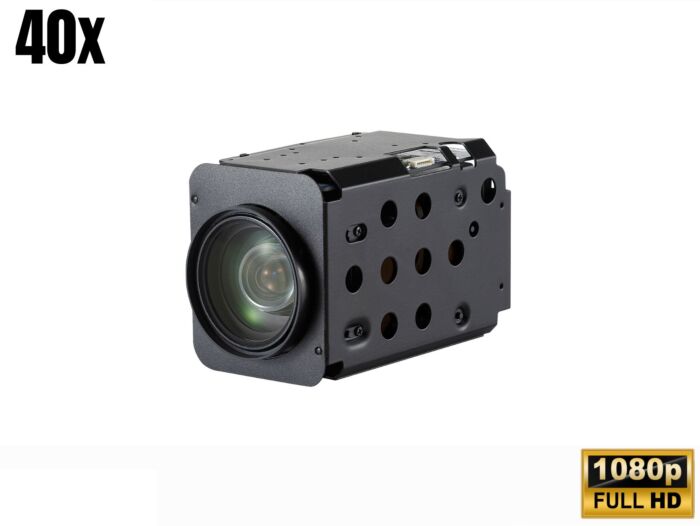

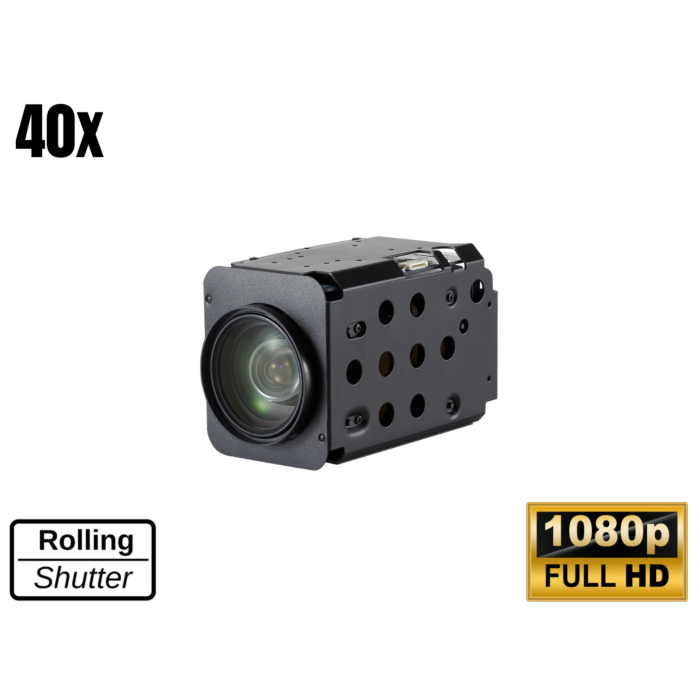

Wonwoo MM-405Q 4MP HD 40x Zoom Block Camera Module with 5MP Sony CMOS sensor

The Wonwoo MM-405Q 4MP 40x Zoom Module combines high-performance imaging and advanced camera features for versatile security and surveillance applications. Powered by a 1/2.8" 5MP Sony CMOS sensor, it delivers high-definition video at 1440P (30/25fps), 1080P (30/25fps), and 720P (30/25fps) resolutions, ensuring clear and detailed video capture in diverse lighting conditions. The camera boasts a powerful 40x Optical Zoom (4.25mm to 170mm) and 32x Digital Zoom, allowing for precise focus from a distance.

Key features include Day & Night (ICR) functionality for superior image quality in both daylight and low-light conditions, along with Wide Dynamic Range (WDR) for balanced exposure in challenging lighting. Digital Noise Reduction (2D+3D) ensures crisp images, even in low-light settings, while Digital Image Stabilization reduces motion blur for clearer visuals. The Privacy Mask Function adds an extra layer of security by obscuring specific areas of the image, and High Light Compensation helps in bright lighting situations.

The module also supports Intelligent Motion Detection, Defog Function for clearer images in foggy conditions, and compatibility with multiple control protocols including VISCA and Pelco-D/P. Video outputs include LVDS and CVBS, providing flexible integration with existing surveillance systems.

Features:

• 1/2.8" 5MP Sony CMOS sensor
• 1440P 30/25fps,1080p 30/25fps, 720p 30/25fps
• 40x Optical Zoom(4.25mm~170mm) & 32x Digital Zoom
• Day & Night(ICR)
• Wide Dynamic Range
• Digital Noise Reduction(2D+3D)
• Digital Image Stabilization
• Privacy Mask Function
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : LVDS, CVBS
• NDAA Compliant

Applications:

• Surveillance Systems
• Industrial Inspection
• Traffic Monitoring
• Public Safety & Security
• Parking Lot Management
• Warehouse Monitoring
• Retail Security
• Remote Observation
• Wildlife Monitoring
• Video Conferencing
• Transportation Surveillance
• Critical Infrastructure Protection
