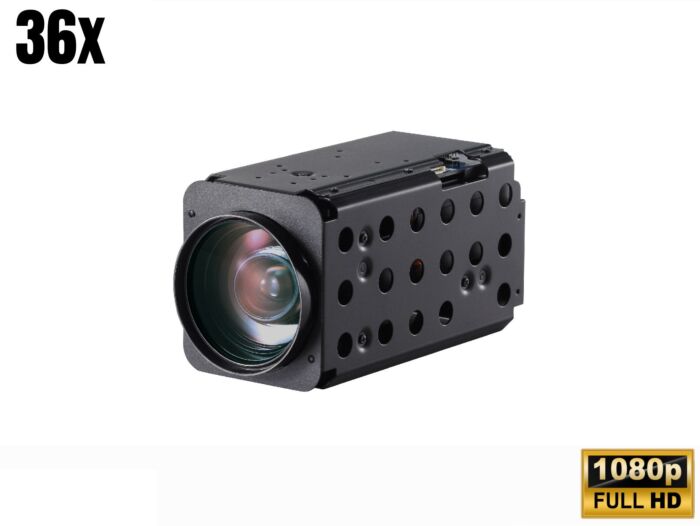

Wonwoo MC-S369 2MP HD 36x Zoom Block Camera Module with Sony CMOS sensor
The Wonwoo MC-S369 is a high-performance 2MP camera module designed for superior image quality and flexibility. Equipped with a 1/2" Sony CMOS sensor, it delivers 1080p video at 60fps/30fps, 1080i 60fps, and 720p 60fps/30fps for crisp, clear visuals. The camera features a 36x optical zoom (6mm~216mm) and a 32x digital zoom for detailed, close-up footage. The F1.5 wide to F4.8 telephoto aperture ensures optimal lighting performance across different focal lengths.
Built with advanced imaging technology, the NDAA compliant MC-S369 supports Wide Dynamic Range (WDR) and Day & Night (ICR) functionality, providing excellent visibility in various lighting conditions. Integrated 2D+3D Digital Noise Reduction ensures clean video, while Digital Image Stabilization minimizes shake, providing steady footage in dynamic environments.
Additional features include Privacy Mask function, High Light Compensation, Intelligent Motion Detection, and a Defog Function for enhanced image clarity in challenging weather or low-light conditions. The MC-S369 is compatible with VISCA, Pelco-D/P Protocols, and supports multiple video outputs, including LVDS, EX-SDI, and CVBS, making it versatile for a wide range of applications.
Features:
- 1/2" 2MP Sony CMOS sensor
- 1080p 60fps/30fps,1080i 60fps, 720p 60fps/30fps
- 36x Optical Zoom(6mm~216mm) & 32x Digital Zoom
- F1.5(wide) ~ F4.8(tele)
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : LVDS, EX-SDI,CVBS
Applications:
- 1/2" 2MP Sony CMOS sensor
- 1080p 60fps/30fps,1080i 60fps, 720p 60fps/30fps
- 36x Optical Zoom(6mm~216mm) & 32x Digital Zoom
- F1.5(wide) ~ F4.8(tele)
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : LVDS, EX-SDI,CVBS
| Image Sensor | 1/2" Sony CMOS Sensor |
| Total Pixels | 1,952 (H) x 1,113 (V) = 2.17M Pixels |
| Effective Pixels | 1,937 (H) x 1,097 (V) = 2.12M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital: 1080p/60(50)fps, 1080i/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps; Analog: 700TVL |
| Min. Illumination | Color (1/30s, 77.7dB): 0.01 lux, BW (1/30s, 77.7dB): 0.002 lux; Color DSS (1/1s, 77.7dB): 0.001 lux, BW DSS (1/1s, 77.7dB): 0.0002 lux |
| Video Output | HD: LVDS, EX-SDI; Analog SD: CVBS |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 36x Day & Night Zoom Lens |
| Zoom Ratio | Optical 36x, Digital 32x |
| Focal Length | f = 6.0 mm ~ 216.0 mm |
| Aperture Ratio | F1.5 (wide) ~ F4.8 (tele) |
| Angle Of View (D, H, V) | Wide: 65.56° / 58.44° / 34.11°; Tele: 2.40° / 2.10° / 1.19° |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10 |
| Digital Zoom | 32x |
| Exposure | Auto / IRIS.P / SHUT.P / MANUAL |
| Gain Control (AGC) | 0 ~ 10 steps |
| Shutter Speed | 1/30(25) ~ 1/60,000 sec |
| Iris | AUTO / IRIS.P / SHUT.P / MANUAL |
| Digital Slow Shutter (DSS) | 0 ~ 20 steps |
| Brightness | Off / WDR / BLC |
| WDR/BLC | Off / WDR / BLC |
| Day & Night | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| HLC | Off / On |
| DNR | Off / Low / Middle / High |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 10 steps |
| ACE | Off / On (Auto / Manual) |
| Defog | Off / On |
| Privacy Mask | Off / On |
| Motion Detection | Max. 24 Areas |
| Defect Detection System | Max. 3 Areas |
| Communication | VISCA / Pelco-D / Pelco-P Protocol, Baud Rate: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Language | English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source | 9V to 15V DC |
| Power Consumption | 500mA |
| Power Input Connector | Connector |
| Storage Temperature | -20℃ ~ +60℃ (Humidity: 0%RH ~ 90%RH) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity: 0%RH ~ 90%RH) |
| Dimensions | 55.6(W) x 64(H) x 124(D) mm |
| Weight | 400g |
