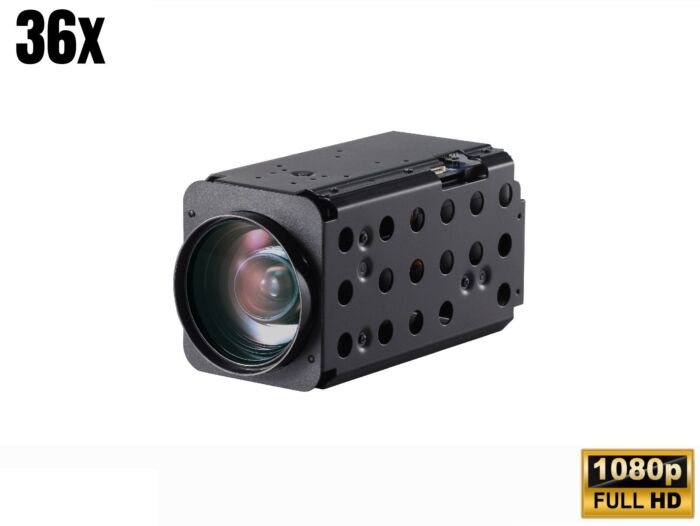

Wonwoo MC-S368B 2MP HD 36x Zoom Block Camera Module with Sony CMOS sensor
The NDAA compliant Wonwoo MC-S368B 2MP 36x Zoom Module delivers exceptional performance with a powerful 1/2" 2MP Sony CMOS sensor. It offers a range of resolution and frame rate options: 1080p at 60fps/30fps and 720p at 60fps/30fps, ensuring crisp and clear video output. Featuring a 36x optical zoom (6mm ~ 216mm) and 32x digital zoom, the module captures detailed footage at long distances.
The wide aperture range (F1.5 to F4.3) provides versatile image quality, while advanced features like Day & Night (ICR), Wide Dynamic Range, and Digital Noise Reduction (2D+3D) enhance visibility in varying lighting conditions. It also includes Digital Image Stabilization to minimize motion blur. For added security, the MC-S368B has a Privacy Mask function, High Light Compensation, Intelligent Motion Detection, and Defog Function, ensuring reliability in diverse environments. It supports VISCA and Pelco-D/P protocols for seamless integration and comes equipped with video output options like HD-SDI, EX-SDI, HD-TVI, and CVBS for flexible connectivity.
Features:
- 1/2" 2MP Sony CMOS Sensor
- 1080p 60fps/30fps, 720p 60fps/30fps
- 36x Optical Zoom(6mm~216mm) & 32x Digital Zoom
- F1.5(wide) ~ F4.3(tele)
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : HD-SDI, EX-SDI, HD-TVI, CVBS
Applications:
- Surveillance Systems
- Security Cameras
- PTZ Cameras
- Remote Monitoring
- Traffic Monitoring
- Industrial Inspections
- Crowd Control
- Vandal-Proof Installations
- License Plate Recognition
- Building Perimeter Security
| Image Sensor | 1/2" Sony CMOS Sensor |
| Total Pixels | 1,952 (H) x 1,113 (V) = 2.17M Pixels |
| Active Pixels | 1,937 (H) x 1,097 (V) = 2.12M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital: 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps; Analog: 700TVL |
| Min. Illumination | Color(1/30s): 0.15 lux, BW(1/30s): 0.01 lux; Color DSS(1/7.5s): 0.0375 lux, BW DSS(1/7.5s): 0.002 lux |
| Video Output | HD: HD-SDI, EX-SDI; Analog: VBS (without WDR), HD-TVI |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 36x Day & Night Zoom Lens |
| Zoom Ratio | Optical 36x, Digital 32x |
| Focal Length | f = 6.0 mm ~ 216.0 mm |
| Aperture Ratio | F1.5 (wide) ~ F4.8 (tele) |
| Angle Of View (D, H, V) | Wide: 65.56° / 58.44° / 34.11°, Tele: 2.45° / 2.10° / 1.21° |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10 |
| Digital Zoom | Up to 32x |
| Exposure | Auto / Iris.P / Shut.P / Manual |
| Gain Control (AGC) | Off / On |
| Shutter Speed | 1/30(25) ~ 1/30,000 sec |
| Iris | Auto / Manual |
| Digital Slow Shutter (DSS) | Off / 2x ~ 32x (Max 8x in 60/50 fps mode) |
| Brightness | 0 ~ 20 steps |
| WDR/BLC | Off / WDR / BLC |
| Day & Night | Auto / Day / Night / Ext-in |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor |
| HLC | Off / Low / Middle / High |
| DNR | Off / Low / Middle / High |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 10 steps |
| ACE | Off / On (Auto / Manual) |
| Defog | Off / On |
| Privacy Mask | Max. 24 Areas |
| Motion Detection | Max. 3 Areas |
| Defect Detection System | Off / On |
| Communication | VISCA / Pelco-D / Pelco-P |
| Language | English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source | 9V to 15V DC |
| Power Consumption | 500mA |
| Power Input Connector | Connector |
| Storage Temperature | -20℃ ~ +60℃ (Humidity: 0%RH ~ 90%RH) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity: 0%RH ~ 90%RH) |
| Dimensions | 55.6(W) x 64(H) x 124(D) mm |
| Weight | 410g |
