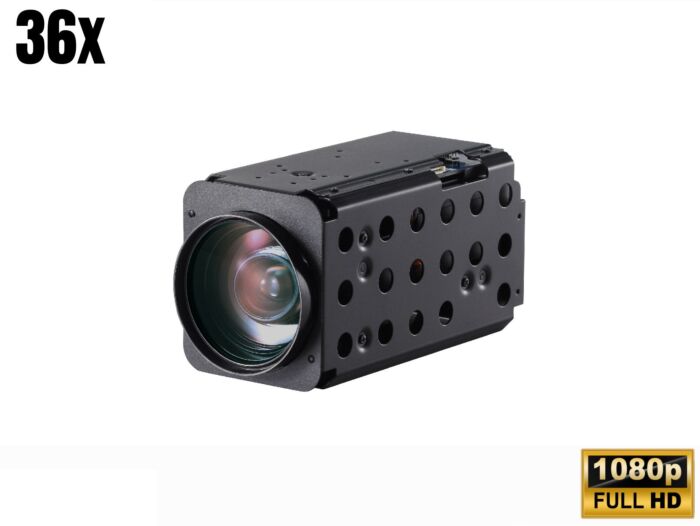

Wonwoo MC-S368 2MP HD 36x Zoom Block Camera Module with Sony CMOS sensor
The Wonwoo MC-S368 is a high-performance 2MP camera module designed for advanced surveillance and monitoring needs. Equipped with a 1/2" Sony CMOS sensor, it offers stunning 1080p resolution at 60fps and 720p at 60fps/30fps for clear, high-definition imaging. With a powerful 36x optical zoom (6mm–216mm) and 32x digital zoom, it provides excellent detail over long distances.
The NDAA compliant MC-S368 features an adjustable F1.5–F4.8 aperture (wide to telephoto), allowing for optimal image clarity in varying lighting conditions. Its Day & Night (ICR) function automatically switches between day and night modes for improved low-light performance. Additionally, Wide Dynamic Range (WDR) ensures clear images even in challenging lighting environments, while Digital Noise Reduction (2D+3D) enhances clarity in low-light scenarios.
This camera module also includes a suite of advanced features such as Digital Image Stabilization (DIS) for smooth video, Privacy Mask Function for confidential monitoring, High Light Compensation for better exposure, and an Intelligent Motion Detection system to alert users to movement within the frame. The Defog Function improves image quality in foggy conditions, making it a reliable choice for all environmental conditions.
Supporting protocols such as VISCA and Pelco-D/P, the MC-S368 is compatible with a wide range of systems and offers versatile video outputs (LVDS, EX-SDI, CVBS) for easy integration.
Features:
- 1/2" 2MP Sony CMOS Sensor
- 1080p 60fps/30fps, 720p 60fps/30fps
- 36x Optical Zoom(6mm~216mm) & 32x Digital Zoom
- F1.5(wide) ~ F4.8(tele)
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : LVDS, EX-SDI, CVBS
Applications:
- Surveillance Systems
- Traffic Monitoring
- Industrial Inspections
- Remote Monitoring
- Security Cameras
- Smart Cities
- Automated Video Analysis
- Law Enforcement
- Perimeter Security
- Building Management
| Image Sensor | 1/2" Sony CMOS Sensor |
| Total Pixels | 1,952 (H) x 1,113 (V) = 2.17M Pixels |
| Active Pixels | 1,937 (H) x 1,097 (V) = 2.12M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital: 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps; Analog: 700TVL |
| Min. Illumination | Color (1/30s): 0.15 lux, BW (1/30s): 0.01 lux; Color DSS (1/7.5s): 0.0375 lux, BW DSS (1/7.5s): 0.002 lux |
| Video Output | HD: LVDS, EX-SDI; Analog SD: VBS (except WDR mode) |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 36x Day & Night Zoom Lens |
| Zoom Ratio | Optical 36x, Digital 32x |
| Focal Length | f = 6.0 mm ~ 216.0 mm |
| Aperture Ratio | F1.5 (wide) ~ F4.8 (tele) |
| Angle Of View (D, H, V) | Wide: 65.56° / 58.44° / 34.11°; Tele: 2.45° / 2.10° / 1.21° |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10 |
| Digital Zoom | 32x |
| Exposure | AUTO / IRIS.P / SHUT.P / MANUAL |
| Gain Control (AGC) | Off / On |
| Shutter Speed | 1/30(25) ~ 1/30,000 sec |
| Iris | Off / 2x ~ 32x (Max 8x in 60 or 50 fps mode) |
| Digital Slow Shutter (DSS) | Off / 2x / 4x |
| Brightness | 0 ~ 20 steps |
| WDR / BLC | WDR / BLC |
| Day & Night | Auto / Night Only |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor |
| HLC | Off / On |
| DNR | Off / Low / Middle / High |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 10 steps |
| ACE | Off / Low / Middle / High |
| Defog | Off / On |
| Privacy Mask | Max. 24 Areas |
| Motion Detection | Max. 3 Areas |
| Defect Detection System | Off / On |
| Communication Language | English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source | 9V to 15V DC |
| Power Consumption | 500mA |
| Power Input | Connector |
| Storage Temperature | -20℃ ~ +60℃ (Humidity: 0%RH ~ 90%RH) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity: 0%RH ~ 90%RH) |
| Dimensions | 55.6 (W) x 64 (H) x 124 (D) mm |
| Weight | 400g |
