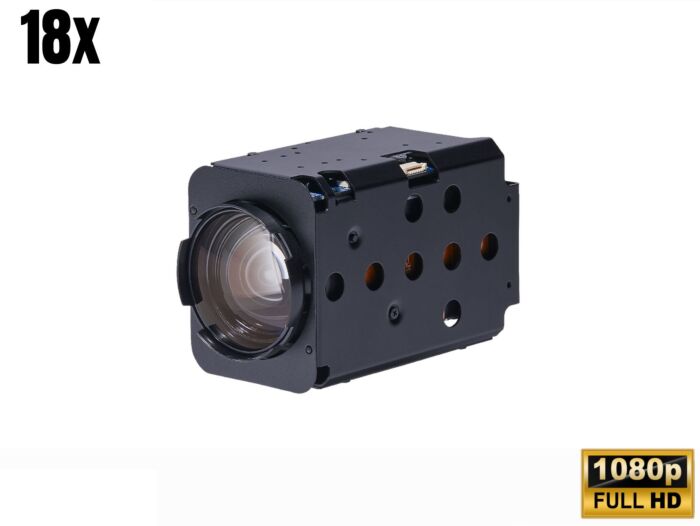

Wonwoo MC-S189 2MP HD 18x Zoom Block Camera Module with Sony CMOS sensor
The Wonwoo MC-S189 is a high-performance 2MP camera module designed for versatile security and surveillance applications. Featuring a 1/2" Sony CMOS sensor, this module delivers sharp, clear images with outstanding performance at up to 1080p resolution, supporting both 60fps and 30fps in various video formats: 1080p, 1080i, and 720p.
Equipped with an 18x optical zoom (ranging from 6.8mm to 122.4mm) and 32x digital zoom, it ensures detailed, dynamic footage in both wide and narrow field-of-view scenarios. The F1.61 (wide) to F4.13 (tele) lens enables exceptional low-light performance, with Day & Night (ICR) functionality for 24/7 operation.
Wide Dynamic Range (WDR) ensures accurate exposure and color balance in challenging lighting environments, while Digital Noise Reduction (2D+3D) enhances image clarity by minimizing noise. The built-in Digital Image Stabilization counteracts camera shake, ensuring smooth and clear footage. Additional features include Privacy Mask Function, High Light Compensation, and Defog Function for optimal image quality under a variety of conditions.
The NDAA compliant MC-S189 is fully compatible with leading control protocols such as VISCA and Pelco-D/P, making it easy to integrate into existing security systems. It supports multiple video output formats including LVDS, EX-SDI, and CVBS, offering flexibility for various installation setups.
Features:
- 1/2" 2MP Sony CMOS Sensor
- 1080p 60fps/30fps, 1080i 60fps, 720p 60fps/30fps
- 18x Optical Zoom (6.8mm ~ 122.4mm) & 32x Digital Zoom
- F1.61(wide) ~ 4.13(tele)
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction (2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out: LVDS, EX-SDI, CVBS
Applications:
- Surveillance Systems
- Security Cameras
- Video Conferencing
- Remote Monitoring
- Traffic Management
- Smart City Solutions
- Industrial Automation
- Retail Analytics
- Warehouse Monitoring
- Public Safety
| Image Sensor | 1/2" Sony CMOS Sensor |
| Total Pixels | 1,952(H) x 1,113(V) = 2.17M Pixels |
| Active Pixels | 1,937(H) x 1,097(V) = 2.12M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | 1080p/60(50)fps, 1080i60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps |
| Min. Illumination | Color: 0.01 lux, BW: 0.002 lux, Color DSS: 0.001 lux, BW DSS: 0.0002 lux |
| Video Output | Digital: LVDS, EX-SDI; Analog: CVBS |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | Day & Night Zoom Lens |
| Zoom Ratio | Optical 18x, Digital 32x Zoom |
| Focal Length | 6.8mm ~ 122.4mm |
| Aperture Ratio | F1.61 (wide) ~ F4.13 (tele) |
| Angle of View (D, H, V) | Wide: 62.0° (D), 55.4° (H), 33.0° (V); Tele: 3.9° (D), 3.4° (H), 1.9° (V) |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5m / 1.5m / 3.0m / 5.0m / 10.0m |
| Exposure | Auto / Iris.P / Shut.P / Manual |
| White Balance | Auto / Preset / Manual |
| Digital Noise Reduction | On / Off |
| Wide Dynamic Range | On / Off |
| Defog | On / Off |
| Power Supply | DC12V / AC24V |
| Power Consumption | Max 10W |
| Operating Temp. | -10°C ~ 50°C |
| Dimensions (mm) | Ø125.7 x 133.7 |
| Weight (kg) | Approx. 1.4kg |
