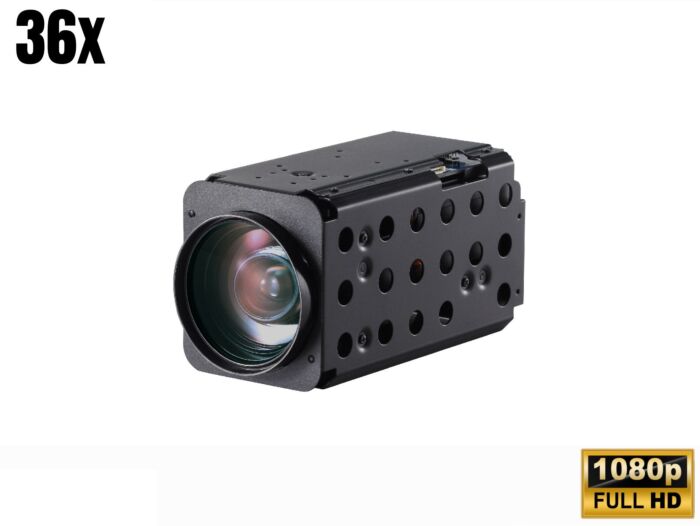

Wonwoo MC-G365 HD 36x Zoom Block Camera Module with Sony CMOS sensor

The Wonwoo MC-G365, NDAA compliant camera module integrates a 1/2.3" Sony CMOS sensor, providing 2.37M total pixels (1,936 x 1,226) and offering exceptional video quality. It supports multiple digital resolutions including 1080p at 60fps, 1080p at 30fps, 720p at 60fps, and 720p at 30fps, along with an analog output of CVBS. With a wide dynamic range, the camera performs effectively in low-light conditions, achieving a minimum illumination of 0.3 lux in color and 0.01 lux in black & white. The module's 36x optical zoom (6.0 mm - 216.0 mm) and 32x digital zoom capabilities allow for detailed video capture at varying distances, ensuring high-quality image stability thanks to its built-in digital image stabilization and 2D+3D noise reduction.

Advanced features of the MC-G365 include intelligent motion detection, day/night mode, and a defog function, enhancing its versatility in surveillance applications. The camera's wide angle of view—up to 59.13° (wide) and 2.24° (tele)—makes it ideal for both large area coverage and detailed zooming. It also supports a variety of video outputs, including LVDS, EX-SDI, and CVBS, along with VISCA and Pelco-D/P protocols for seamless integration into existing systems. Additional functionalities such as privacy mask, white balance options, and configurable power input (9V to 15V DC) make the MC-G365 a robust and reliable solution for demanding security, surveillance, and industrial applications.

Features:

• 1/2.3" Sony Global shutter CMOS sensor
• 1080p 60fps/30fps, 720p 60fps/30fps
• 36x Optical Zoom(6mm~216mm) & 32x Digital Zoom
• F1.5(wide) ~ F4.8(tele)
• Day & Night(ICR)
• Digital Noise Reduction(2D+3D)
• Digital Image Stabilization
• Privacy Mask Function
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : LVDS, EX-SDI, CVBS

Applications:

• Surveillance Systems
• Security Monitoring
• Traffic Monitoring
• Industrial Inspection
• Outdoor Surveillance
• Smart City Applications
• Building Security
• Crowd Management
