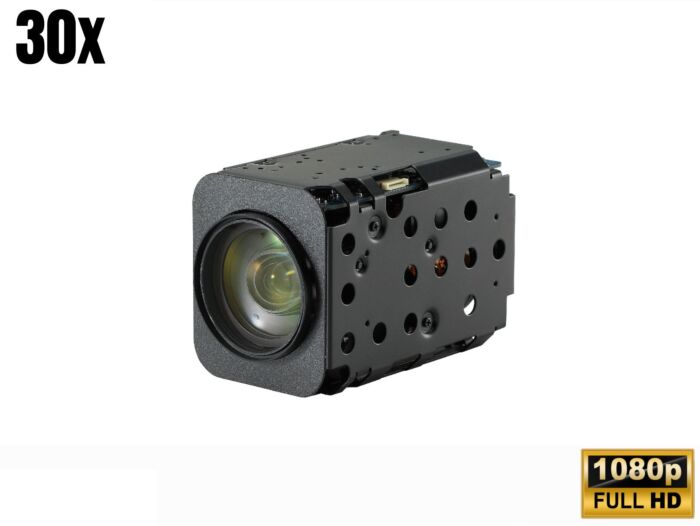

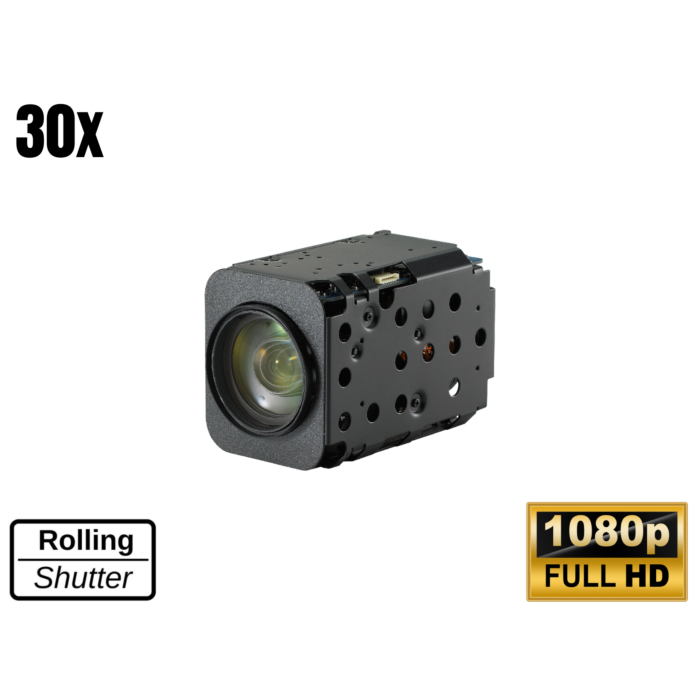

Wonwoo MC-A308 2MP HD 30x Zoom Block Camera Module with Sony CMOS sensor
The Wonwoo MC-A308 is a NDAA compliant, high-performance 2MP zoom module featuring a 1/2.8" Sony CMOS sensor, delivering superior image quality with a wide range of technical capabilities. This module supports 1080p at 60fps and 30fps, as well as 720p at 60fps and 30fps. The 30x optical zoom (4.6mm to 136mm) combined with a 32x digital zoom provides powerful, high-definition zoom capabilities ideal for detailed surveillance and monitoring.
Key technical features include Day & Night (ICR) functionality, ensuring consistent performance in varying lighting conditions, and Wide Dynamic Range (WDR) to enhance image quality in challenging lighting environments. The module is equipped with Digital Noise Reduction (2D+3D), ensuring clear and sharp footage in low-light situations, while Digital Image Stabilization reduces motion blur and enhances the overall clarity of video recordings.
Additional features like Privacy Mask Function, High Light Compensation, and Intelligent Motion Detection offer robust security and surveillance performance. The Defog Function improves visibility in hazy or foggy conditions. The MC-A308 is fully compatible with industry-standard protocols like VISCA and Pelco-D/P, making it an easy integration into existing systems.
The module offers versatile video outputs including AHD, HD-SDI, EX-SDI, and CVBS for various installation setups and ensures reliable, high-quality video transmission.
Features:
- 1/2.8" 2MP Sony CMOS Sensor
- 1080p 60fps/30fps, 720p 60fps/30fps
- 30x Optical Zoom(4.6mm~136mm) & 32x Digital Zoom
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : AHD, HD-SDI, EX-SDI, CVBS
Applications:
- Surveillance Cameras
- Security Monitoring
- Traffic Management
- Industrial Automation
- Remote Observation
- Public Safety
- Coastline Surveillance
- Building Security
- Perimeter Monitoring
- Wildlife Observation
| Image Sensor | 1/2.8" Sony CMOS Sensor |
| Total Pixels | 1,945 (H) x 1,109 (V) = 2.16M Pixels |
| Effective Pixels | 1,945 (H) x 1,097 (V) = 2.13M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital: 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps; Analog: 700TVL |
| Min. Illumination | Color (1/30s, 79.5dB): 0.005 lux, BW (1/30s, 79.5dB): 0.0008 lux; Color DSS (1/8s, 79.5dB): 0.00125 lux, BW DSS (1/8s, 79.5dB): 0.0002 lux |
| Video Output | HD: HD-SDI, EX-SDI; Analog: AHD, CVBS (without WDR) |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 30x Day & Night Zoom Lens |
| Zoom Ratio | Optical 30x, Digital 32x |
| Focal Length | f = 4.6 mm ~ 136.0 mm |
| Aperture Ratio | F1.63 (wide) ~ F4.85 (tele) |
| Angle of View (D, H, V) | Wide: 73.3° (±5%), 65.4° (±5%), 38.3° (±5%); Tele: 2.6° (±5%), 2.2° (±5%), 1.3° (±5%) |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10 |
| Digital Zoom | 2x ~ 32x |
| Exposure | Auto / Iris.P / Shut.P / Manual |
| Gain Control (AGC) | Off / On |
| Shutter Speed | 1/30(25) ~ 1/30,000 sec |
| Iris | Off / MAX |
| Digital Slow Shutter (DSS) | x2 ~ x8 (60 or 50 fps mode only) |
| Brightness | 0 ~ 20 steps |
| WDR / BLC | Off / WDR / BLC |
| Day & Night | Auto / Day / Night / Ext-in |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor |
| HLC | Off / On |
| DNR | Off / Low / Middle / High |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 10 steps |
| ACE | Off / Low / Middle / High |
| Defog | Off / On |
| Privacy Mask | Max. 24 Areas |
| Motion Detection | Max. 3 Areas |
| Defect Detection System | Off / On |
| Communication | Protocol: VISCA / Pelco-D / Pelco-P; Baud Rate: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200; Language: English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source | 9V to 15V DC |
| Power Consumption | 500mA |
| Power Input Connector | Connector |
| Storage Temperature | -20℃ ~ +60℃ (Humidity: 0%RH ~ 90%RH) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity: 0%RH ~ 90%RH) |
| Dimensions | 50(W) x 60(H) x 93(D) |
| Weight | 278g |
