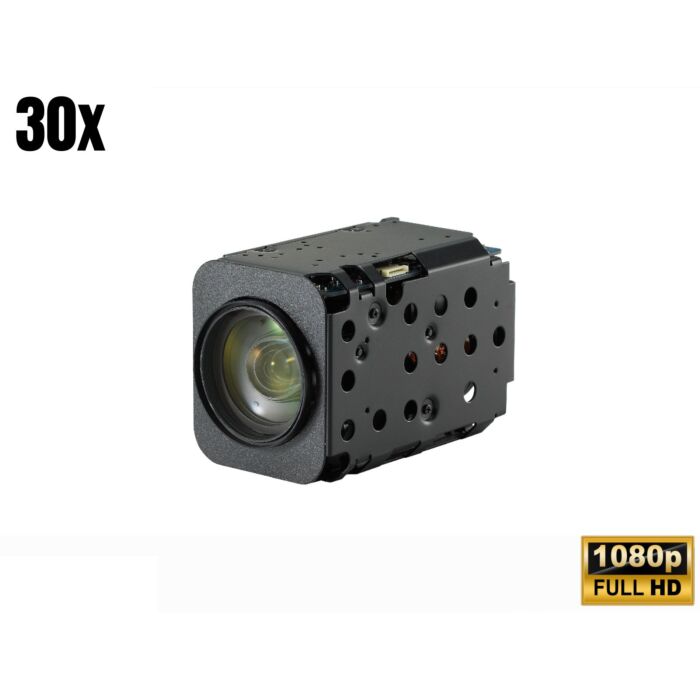

Wonwoo MC-308B 2MP HD 30x Zoom Block Camera Module with Sony CMOS sensor
The NDAA Compliant Wonwoo MC-308B is a high-performance 30x Zoom Camera Module features a 1/2.8" Sony CMOS sensor, delivering Full HD 1080p resolution with exceptional image clarity. Designed for professional surveillance and industrial applications, it supports progressive scanning, ensuring smooth and flicker-free video capture even in fast-moving scenes. The camera provides both digital and analog output, including HD-SDI, EX-SDI, and HD-TVI, making it compatible with a variety of security systems. With a high S/N ratio of over 50dB, noise is minimized for cleaner images, even in low-light conditions. The powerful 30x optical zoom and 32x digital zoom allow for detailed close-ups, making it ideal for monitoring large areas without losing focus on distant objects.
Equipped with advanced imaging features, this camera ensures optimal performance in challenging environments. The Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) enhance visibility in high-contrast lighting conditions, while the Defog mode improves clarity in foggy or hazy scenes. The Auto, Manual, and One-Push White Balance settings allow for precise color adjustments, ensuring natural image reproduction. Additionally, motion detection, privacy masking, and high-light compensation (HLC) enhance security functionality. Designed for durability, the camera operates efficiently in temperatures ranging from -10℃ to +50℃ and is housed in a compact form factor of 50mm(W) x 60mm(H) x 93mm(D), making it easy to integrate into various surveillance setups. Whether for industrial, commercial, or security applications, this camera module delivers unparalleled image quality and reliability in all conditions.
Features:
- 1/2.8" 2MP Sony CMOS Sensor
- 1080p 60fps/30fps, 720p 60fps/30fps
- 30x Optical Zoom(4.6mm~136mm) & 32x Digital Zoom
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : HD-SDI, EX-SDI, HD-TVI, CVBS
Applications:
- Surveillance
- Security Systems
- Traffic Monitoring
- Remote Observation
- Retail Monitoring
- Outdoor Surveillance
- Critical Infrastructure
- Industrial Applications
| Image Sensor | 1/2.8" Sony CMOS Sensor |
| Total Pixels | 1,945 (H) x 1,109 (V) = 2.16M Pixels |
| Effective Pixels | 1,945 (H) x 1,097 (V) = 2.13M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital: 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps; Analog: 700TVL |
| Min. Illumination | Color (1/30s, 79.5dB): 0.005 lux, BW (1/30s, 79.5dB): 0.0008 lux; Color DSS (1/8s, 79.5dB): 0.00125 lux, BW DSS (1/8s, 79.5dB): 0.0002 lux |
| Video Output | HD: HD-SDI, EX-SDI; Analog: VBS (without WDR), HD-TVI |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 30x Day & Night Zoom Lens |
| Zoom Ratio | Optical 30x, Digital 32x |
| Focal Length | f = 4.6 mm ~ 136.0 mm |
| Aperture Ratio | F1.63 (wide) ~ F4.85 (tele) |
| Angle Of View (D, H, V) | Wide: 73.3°(±5%), 65.4°(±5%), 38.3°(±5%) | Tele: 2.6°(±5%), 2.2°(±5%), 1.3°(±5%) |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10 |
| Digital Zoom | Off / MAX 2x ~ 32x |
| Exposure | Auto / Iris.P / Shut.P / Manual |
| Gain Control (AGC) | Off / On |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Iris | 0 ~ 20 steps |
| Digital Slow Shutter (DSS) | Off / x2 / x4 (/ x8: 60 or 50 fps mode only) |
| Brightness | 0 ~ 20 steps |
| WDR/BLC | Off / WDR / BLC |
| Day & Night | Auto / Day / Night / Ext-in |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor |
| HLC | Off / On / Night Only |
| DNR | Auto / Off / Low / Middle / High |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 10 steps |
| ACE | Off / Low / Middle / High |
| Defog | Off / On (Auto / Manual) |
| Privacy Mask | Max. 24 Areas |
| Motion Detection | Max. 3 Areas |
| Defect Detection | Off / On |
| System Communication | NTSC / PAL, Baud Rate: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200, Protocol: VISCA / Pelco-D / Pelco-P / Update |
| Language | English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source | 9V to 15V DC |
| Power Consumption | 500mA |
| Power Input | Connector |
| Video Output | Connector |
| Storage Temperature | -20℃ ~ +60℃ (Humidity: 0%RH ~ 90%RH) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity: 0%RH ~ 90%RH) |
| Dimensions | 50(W) x 60(H) x 93(D) mm |
| Weight | 278g |
