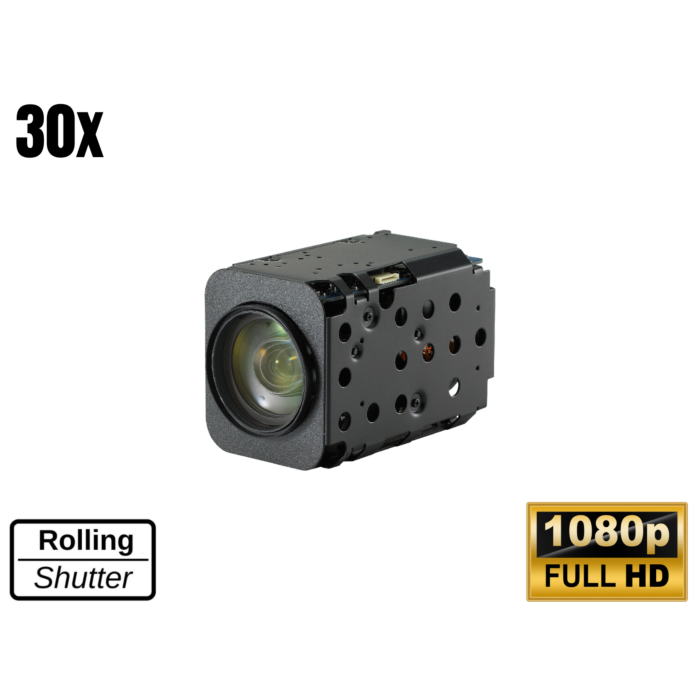

Wonwoo MC-308 2MP HD 30x Zoom Block Camera Module with Sony CMOS sensor
The Wonwoo MC-308 is a high-performance 2MP camera module equipped with a 1/2.8" Sony CMOS sensor, delivering stunning video quality with 1080p resolution at 60fps/30fps and 720p at 60fps/30fps. Featuring a 30x optical zoom (4.6mm to 136mm) and 32x digital zoom, it provides flexible and clear image capture across varying distances.
The MC-308 excels in low-light and challenging environments with its Day & Night (ICR) functionality, Wide Dynamic Range, and Digital Noise Reduction (2D+3D), ensuring clear images in diverse conditions. The module also includes intelligent motion detection, defog function, and privacy mask features, making it ideal for security and surveillance applications. It supports VISCA, Pelco-D/P protocols for easy integration with a variety of control systems and offers multiple video output options: LVDS, EX-SDI, and CVBS.
Features:
- NDAA Compliant
- 1/2.8" 2MP Sony CMOS Sensor
- 1080p 60fps/30fps, 720p 60fps/30fps
- 30x Optical Zoom(4.6mm~136mm) & 32x Digital Zoom
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : LVDS, EX-SDI, CVBS
Applications:
- Surveillance Systems
- Security Cameras
- Video Conferencing
- Remote Monitoring
- Automated Tracking
- License Plate Recognition
- Industrial Inspections
- Traffic Monitoring
- Broadcasting
- Intelligent Traffic Systems
| Image Sensor | 1/2.8" Sony CMOS Sensor |
| Total Pixels | 1,945 (H) x 1,109 (V) = 2.16M Pixels |
| Effective Pixels | 1,945 (H) x 1,097 (V) = 2.13M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital: 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps; Analog: 700TVL |
| Min. Illumination | Color(1/30s, 79.5dB): 0.005 lux, BW(1/30s, 79.5dB): 0.0008 lux; Color DSS(1/8s, 79.5dB): 0.00125 lux, BW DSS(1/8s, 79.5dB): 0.0002 lux |
| Video Output | HD: Digital(LVDS), EX-SDI; Analog SD: VBS(without WDR) |
| S/N Ratio | more than 50dB (AGC off) |
| Lens Type | 30x Day & Night Zoom Lens |
| Zoom Ratio | Optical 30x, Digital 32x |
| Focal Length | f = 4.6 mm ~ 136.0 mm |
| Aperture Ratio | F1.63(wide) ~ F4.85(tele) |
| Angle Of View | Wide: 73.3°(±5%) 65.4°(±5%) 38.3°(±5%); Tele: 2.6°(±5%) 2.2°(±5%) 1.3°(±5%) |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10 |
| White Balance | Auto / ATW / Indoor / Outdoor / One Push / Manual |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| WDR | On / Off |
| Noise Reduction | 2D / 3D |
| Image Stabilization | On / Off |
| Defog | On / Off |
| Power Source | 9V to 15V DC |
| Power Consumption | 550mA |
| Storage Temperature | -20℃ ~ +60℃ (Humidity: 0%RH ~ 90%RH) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity: 0%RH ~ 90%RH) |
| Dimensions | 50(W) x 60(H) x 93(D) |
| Weight | 278g |
