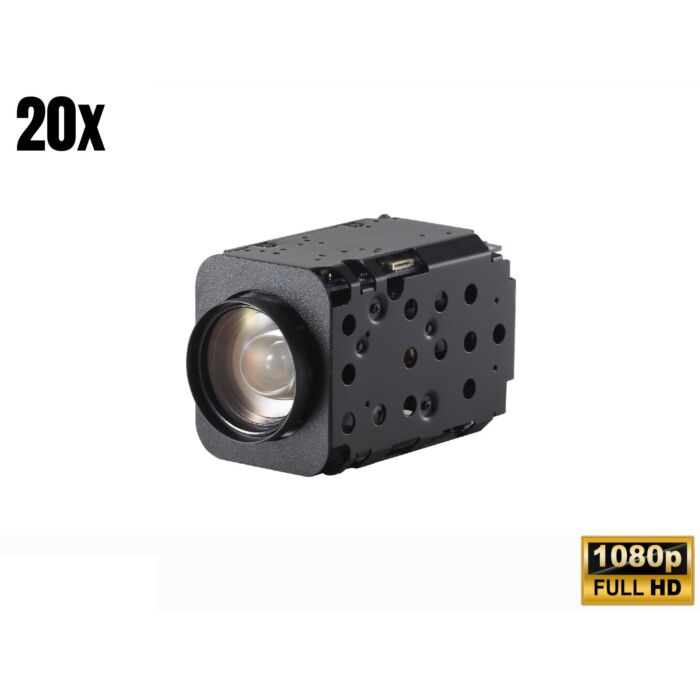

Wonwoo MC-209B 2MP HD 20x Zoom Block Camera Module with Sony CMOS sensor
The Wonwoo MC-209B is a high-performance 2MP camera module featuring a 1/2.8" Sony CMOS sensor, designed for professional security and surveillance applications. Offering exceptional image clarity with 1080p resolution at 60fps and 30fps, it supports multiple video outputs, including EX-SDI and CVBS. The camera provides a powerful 20x optical zoom (5.2mm ~ 104mm) and 32x digital zoom for versatile image capture, ensuring both long-range and wide-angle views.
Enhanced with Day & Night functionality (ICR), Wide Dynamic Range (WDR), and digital noise reduction (2D+3D), it delivers crisp, clear images even in challenging lighting conditions. The MC-209B is equipped with intelligent motion detection, defog function, and high light compensation for superior performance in dynamic environments. It supports VISCA, Pelco-D/P protocols, and features advanced capabilities like privacy mask function and digital image stabilization, ensuring both security and reliability in demanding applications.
Features:
- 1/2.8" 2MP Sony CMOS Sensor
- 1080p 60fps/30fps, 1080i 60fps, 720p 60fps/30fps
- 20x Optical Zoom(5.2mm ~ 104mm) & 32x Digital Zoom
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : EX-SDI, CVBS
- NDAA Compliant
Applications:
- Surveillance Systems
- Security Cameras
- Video Conferencing
- Traffic Monitoring
- Remote Observation
- Industrial Monitoring
- Retail Surveillance
- Public Safety Systems
- Parking Facility
| Image Sensor | 1/2.8" Sony CMOS Sensor |
| Total Pixels | 1,945 (H) x 1,109 (V) = 2.16M Pixels |
| Active Pixels | 1,937 (H) x 1,097 (V) = 2.12M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal Digital |
| Resolution | 1080p/60(50)fps, 1080i60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps |
| Min. Illumination | Color (1/30s, 78dB): 0.01 lux, BW (1/30s, 78dB): 0.001 lux |
| Video Output | HD: LVDS, EX-SDI, Analog SD: VBS |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 20x Day & Night Zoom Lens |
| Zoom Ratio | Optical 20x, Digital 32x |
| Focal Length | f = 5.2 mm ~ 104 mm |
| Aperture Ratio | F1.5 (wide) ~ F3.5 (tele) |
| Angle of View (D, H, V) | Wide: 63.2° (D), 56.4° (H), 33.5° (V), Tele: 3.5° (D), 3.1° (H), 1.7° (V) |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10 |
| Digital Zoom | 2x ~ 32x |
| Exposure | Auto / Manual / Shutter Priority / Iris Priority |
| Shutter Speed | 1/30(25) ~ 1/60,000 sec |
| Gain Control | 0 ~ 10 steps |
| Iris | 0 ~ 20 steps |
| Digital Slow Shutter (DSS) | Off / 2x / 4x / 8x / 16x / 32x (64x in 60/50 fps mode) |
| Brightness | 0 ~ 20 steps |
| WDR/BLC | Off / WDR / BLC |
| Day & Night Function | Auto / Day / Night / Ext-in |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| HLC | Off / On |
| DNR (Digital Noise Reduction) | Off / Low / Middle / High |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 10 steps |
| ACE | Off / On (Auto / Manual) |
| Defog | Off / Low / Middle / High |
| Privacy Mask | Off / On (Max. 24 Areas) |
| Motion Detection | Max. 3 Areas |
| Defect Detection | Off / On |
| System | NTSC / PAL |
| Communication Protocol | VISCA / Pelco-D / Pelco-P |
| Language | English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source | 9V to 15V DC |
| Power Consumption | Approx. 12W |
| Power Input | Max 500mA |
| Storage Temperature | -20°C ~ +60°C (Humidity: 0%RH ~ 90%RH) |
| Operating Temperature | -10°C ~ +50°C (Humidity: 0%RH ~ 90%RH) |
| Dimensions (W x H x D) | 50(W) x 60(H) x 97(D) |
| Weight | 232g |
