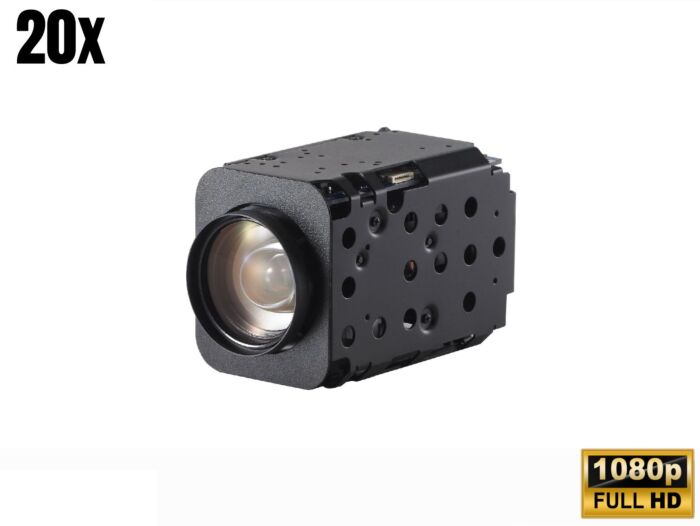

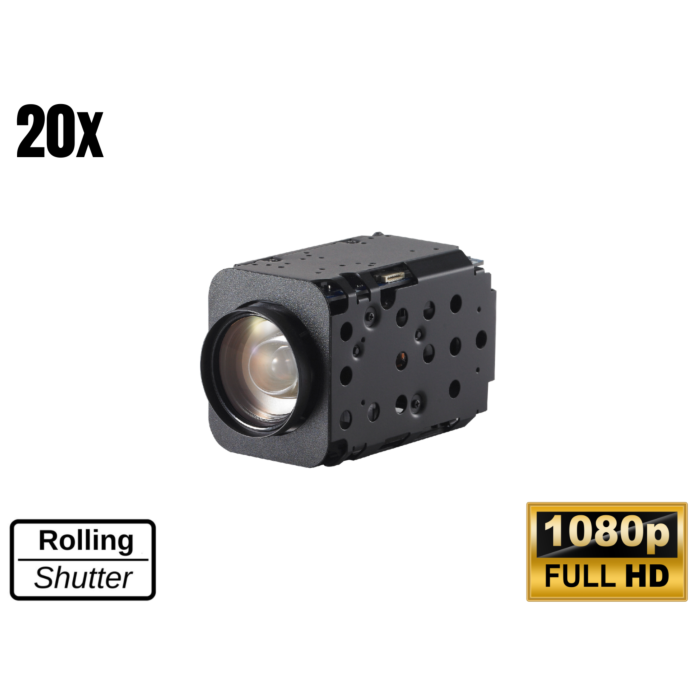

Wonwoo MC-209 2MP HD 20x Zoom Block Camera Module with Sony CMOS sensor
The Wonwoo MC-209 is a high-performance 2MP camera module featuring a 1/2.8" Sony CMOS sensor, delivering sharp 1080p video at up to 60fps. Equipped with a powerful 20x optical zoom (5.2mm – 104mm) and 32x digital zoom, this module offers exceptional flexibility for precise, long-range monitoring. It supports multiple resolutions: 1080p at 60fps/30fps, 1080i at 60fps, and 720p at 60fps/30fps.
The NDAA compliant MC-209 is designed for versatile use with Day & Night (ICR) functionality, Wide Dynamic Range (WDR), and Digital Noise Reduction (2D+3D) for optimal image quality in various lighting conditions. It also features Digital Image Stabilization to reduce motion blur and improve clarity. Enhanced with High Light Compensation and Intelligent Motion Detection, this module adapts to challenging environments and ensures clear visibility.
For added security, the module includes Privacy Masking and a Defog function. It is compatible with VISCA, Pelco-D/P protocols and offers multiple video output options, including LVDS, EX-SDI, and CVBS. The MC-209 is the ideal solution for high-quality video surveillance and remote monitoring applications.
Features:
- 1/2.8" 2MP Sony CMOS Sensor
- 1080p 60fps/30fps, 1080i 60fps, 720p 60fps/30fps
- 20x Optical Zoom (5.2mm ~ 104mm) & 32x Digital Zoom
- Day & Night (ICR)
- Wide Dynamic Range
- Digital Noise Reduction (2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out: LVDS, EX-SDI, CVBS
Applications:
- Surveillance Systems
- Remote Monitoring
- Security Cameras
- Video Conferencing
- Automated Inspection
- Broadcasting
- Traffic Monitoring
- Smart Cities
- Industrial Automation
| Image Sensor | 1/2.8" Sony CMOS Sensor |
| Total Pixels | 1,945 (H) x 1,109 (V) = 2.16M Pixels |
| Active Pixels | 1,937 (H) x 1,097 (V) = 2.12M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal Digital |
| Resolution | 1080p/60(50)fps, 1080i60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps |
| Min. Illumination | Color (1/30s, 78dB): 0.01 lux, BW (1/30s, 78dB): 0.001 lux |
| Video Output | HD: LVDS, EX-SDI, Analog SD: VBS |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 20x Day & Night Zoom Lens |
| Zoom Ratio | Optical 20x, Digital 32x |
| Focal Length | f = 5.2 mm ~ 104 mm |
| Aperture Ratio | F1.5 (wide) ~ F3.5 (tele) |
| Angle of View (D, H, V) | Wide: 63.2° (D), 56.4° (H), 33.5° (V), Tele: 3.5° (D), 3.1° (H), 1.7° (V) |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10 |
| Digital Zoom | 2x ~ 32x (64x in 60/50 fps mode) |
| Exposure Mode | Auto / Manual / Shutter Priority / Iris Priority |
| Shutter Speed | 1/30(25) ~ 1/60,000 sec |
| Digital Slow Shutter (DSS) | Off / 2x / 4x / 8x / 16x / 32x (64x in 60/50 fps mode) |
| Brightness | 0 ~ 20 steps |
| WDR/BLC | Off / WDR / BLC |
| Day & Night Function | Auto / Day / Night / Ext-in |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| HLC | Off / On |
| DNR (Digital Noise Reduction) | Off / Low / Middle / High |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 10 steps |
| ACE | Off / On (Auto / Manual) |
| Defog | Off / Low / Middle / High |
| Privacy Mask | Off / On (Max. 24 Areas) |
| Motion Detection | Max. 3 Areas |
| Defect Detection | Off / On |
| Communication Protocol | VISCA / Pelco-D / Pelco-P |
| Language | English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source | 9V to 15V DC |
| Power Consumption | Approx. 12W |
| Power Input | Max 500mA |
| Storage Temperature | -20°C ~ +60°C (Humidity: 0%RH ~ 90%RH) |
| Operating Temperature | -10°C ~ +50°C (Humidity: 0%RH ~ 90%RH) |
| Dimensions (W x H x D) | 50(W) x 60(H) x 97(D) |
| Weight | 232g |
