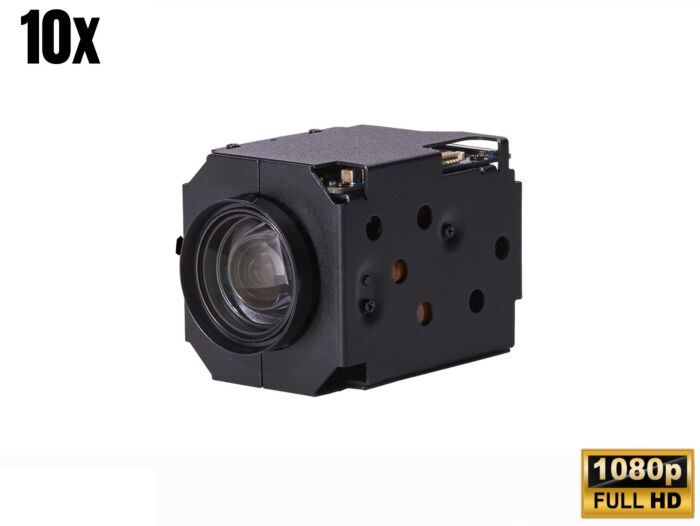

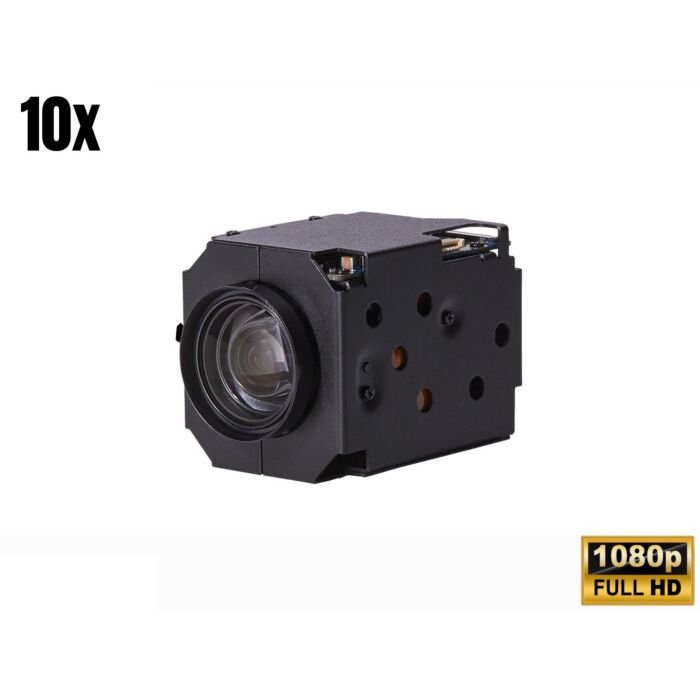

Wonwoo MC-105Q 4MP HD 10x Zoom Block Camera Module with 5MP Sony CMOS sensor

The Wonwoo MC-105Q is a high-performance 4MP camera module designed for advanced surveillance and video monitoring applications. Featuring a 1/2.8" 5MP Sony CMOS sensor, this module delivers crystal-clear video quality at resolutions up to 1440P at 30/25fps, 1080P at 30/25fps, and 720P at 30/25fps. With a 10x optical zoom lens (4.7mm to 47mm) and 32x digital zoom, the MC-105Q offers versatile coverage for a wide range of environments.

Key technical features include Day & Night (ICR) functionality, Wide Dynamic Range (WDR) for improved image quality in varied lighting, and Digital Noise Reduction (2D+3D) for clear imagery in low-light conditions. It also integrates intelligent motion detection, privacy mask function, and digital image stabilization to ensure sharp and stable video footage. The high light compensation feature enhances visibility in high-contrast lighting situations, while the defog function aids in capturing clearer images during foggy or misty conditions.

This NDAA compliant camera module supports VISCA, Pelco-D/P protocols and provides flexible video output options through LVDS and CVBS, making it compatible with a wide array of security systems.

Features:

• 1/2.8" 5MP Sony CMOS Sensor
• 1440P 30/25fps, 1080p 30/25fps, 720p 30/25fps
• 10x Optical Zoom (4.7mm~47mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out: LVDS, CVBS

Applications:

• Surveillance Cameras
• Security Monitoring
• Traffic Monitoring
• Industrial Inspection
• Remote Video Surveillance
• Automated Monitoring Systems
• Outdoor Video Surveillance
• High-Contrast Lighting Environments
• Low-Light Surveillance
