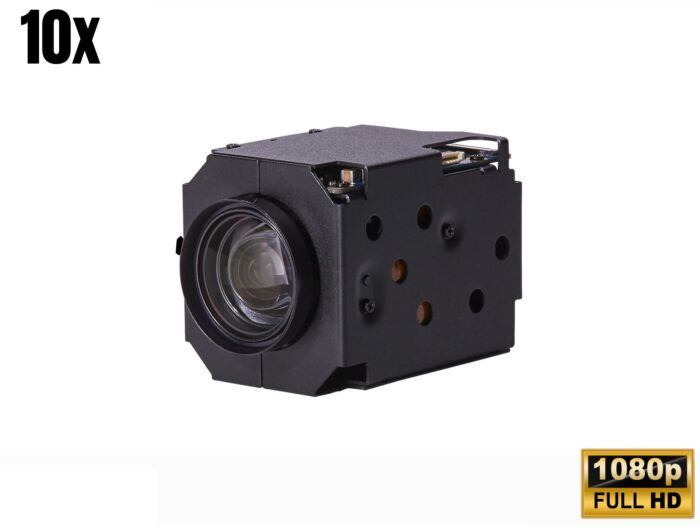

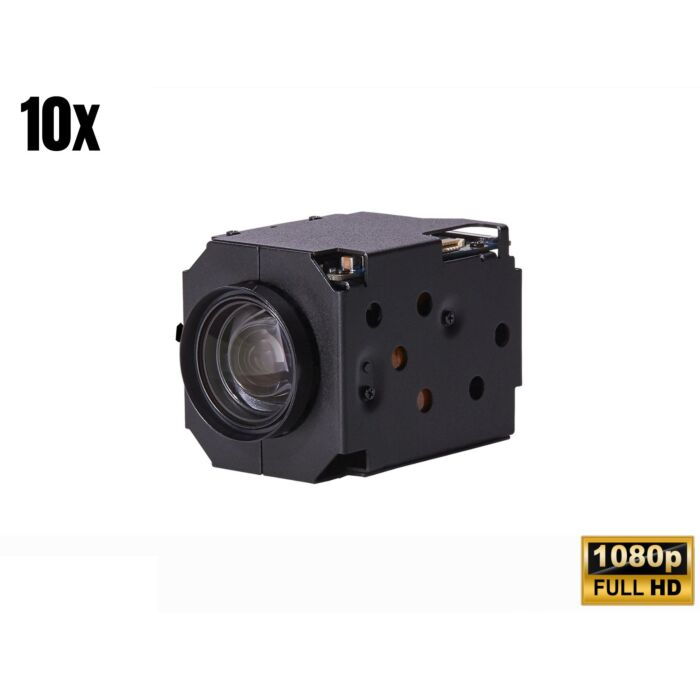

Wonwoo MC-105 2MP HD 10x Zoom Block Camera Module with Sony CMOS sensor

The NDAA compliant Wonwoo MC-105 2MP 10x Zoom Module is a cutting-edge surveillance camera module designed to deliver exceptional video quality and advanced functionality for a wide range of security applications. Equipped with a 1/2.8" Sony CMOS sensor, this module captures sharp, high-definition video at resolutions of 1080p (60/30fps) and 720p (60/30fps).

Key features include a powerful 10x optical zoom (ranging from 4.7mm to 47mm) combined with 32x digital zoom, offering flexible and precise zoom capabilities for detailed surveillance over extended distances. The MC-105 supports both day and night functionality with an Infrared Cut Filter (ICR) and features Wide Dynamic Range (WDR) to handle challenging lighting conditions effectively.

Digital Noise Reduction (2D + 3D) ensures clearer, noise-free video, while the Privacy Mask function provides customizable video masking for privacy protection. Additional performance-enhancing features like Digital Image Stabilization, High Light Compensation, and the Defog Function further enhance image quality in low visibility conditions.

The module supports multiple control protocols including VISCA and Pelco-D/P, and offers versatile video output options, including LVDS and CVBS for easy integration into various CCTV systems.

Features:

• 1/2.8" 2MP Sony CMOS Sensor
• 1080p 60/30fps, 720p 60/30fps
• 10x Optical Zoom (4.7mm~47mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out: LVDS, CVBS

Applications:

• Surveillance Cameras
• CCTV Systems
• Traffic Monitoring
• Public Safety
• Industrial Security
• Access Control
• Retail Security
