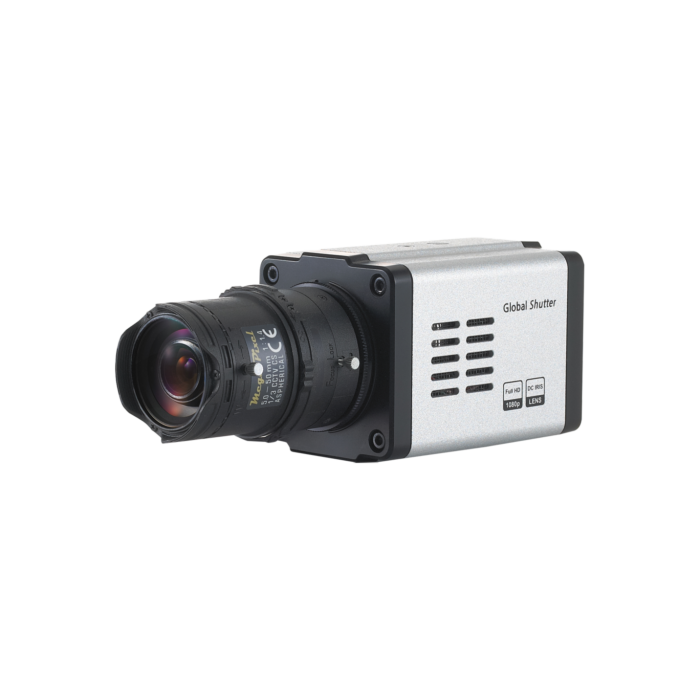

Wonwoo MB-HG15 Global Shutter Camera | 1/1.8" Sony CMOS | 1080p60 | C/CS Mount
The Wonwoo MB-HG15 is a high-performance global shutter camera designed for precision imaging in robotics, UAVs, industrial automation, and surveillance systems. Built around a 1/1.8" Sony Global Shutter CMOS sensor, the MB-HG15 delivers distortion-free imaging at up to 1080p 60fps, making it ideal for capturing fast-moving objects without motion artifacts.
With support for external trigger input and strobe output, this camera is optimized for synchronized machine vision applications. Its C/CS mount compatibility and support for both DC iris and manual lenses provide flexible integration into custom optical systems.
The MB-HG15 is available in both color (MBHG15C) and black & white (MBHG15M) models, allowing engineers to select the optimal configuration for low-light sensitivity or color-critical applications.
Engineered for reliability and control, the camera supports RS-485 remote operation, OSD configuration, and multiple video outputs including HD-SDI, EX-SDI, CVBS, and network streaming.
Key Features:
- 1/1.8" Sony Global Shutter CMOS Sensor
- Full HD 1080p @ 60fps / 30fps
- Global shutter for motion-critical imaging
- External trigger input & strobe output
- C/CS mount lens compatibility
- DC iris & manual lens support
- RS-485 remote control
- OSD menu configuration
- Multi-output: Network, HD-SDI, EX-SDI, CVBS
- Available in Color (MB-HG15C) and B/W (MB-HG15M)
Applications:
- Robotics vision
- UAV imaging
- Drone payloads
- Industrial inspection
- Machine vision
- Traffic monitoring
- Security systems
- Automation lines
| Camera | |
|---|---|
| Image Sensor | 1/1.8" Sony Global Shutter CMOS |
| Total Pixels | 2064(H) x 1554(V) (3.21MP) |
| Active Pixels | 1920(H) x 1080(V) (2.07MP) |
| Video Formats | 1080p60/50, 1080p30/25, 720p60/50, 720p30/25 |
| Shutter | Global Shutter |
| S/N Ratio | >50dB (AGC off) |
| Minimum Illumination | Color: 0.3 lux / DSS 0.075 lux BW: 0.02 lux / DSS 0.005 lux |
| Video Output | Network, HD-SDI, EX-SDI, CVBS |
| Lens | |
| Lens Mount | C / CS Mount |
| Lens Type | DC / Manual |
| Functions | |
| Day/Night | Color (MB-HG15C), BW (MB-HG15M) |
| DNR | 2D / 3D / 2D+3D |
| WDR / HLC / BLC | Supported |
| Motion Detection | 4 Zones |
| Privacy Mask | 8 Zones |
| Digital Zoom | 1x ~ 6x |
| Shutter Speed | 1/30 ~ 1/10,000 sec |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Compression | H.265, H.264, MJPEG |
| Streaming | Triple Streaming |
| Protocols | ONVIF, RTSP, TCP/IP, HTTP, DHCP, FTP, DNS, NTP |
| General | |
| Power | DC12V ±10% / PoE (802.3af) |
| Power Consumption | Max 550mA |
| Operating Temp | -10°C to +50°C |
| Dimensions | 59.2 x 62.2 x 99.8 mm |
| Weight | 0.285 kg |
