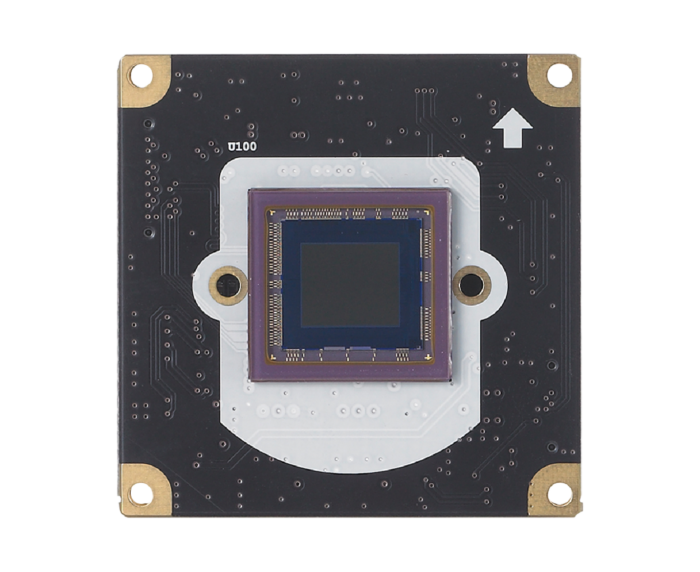

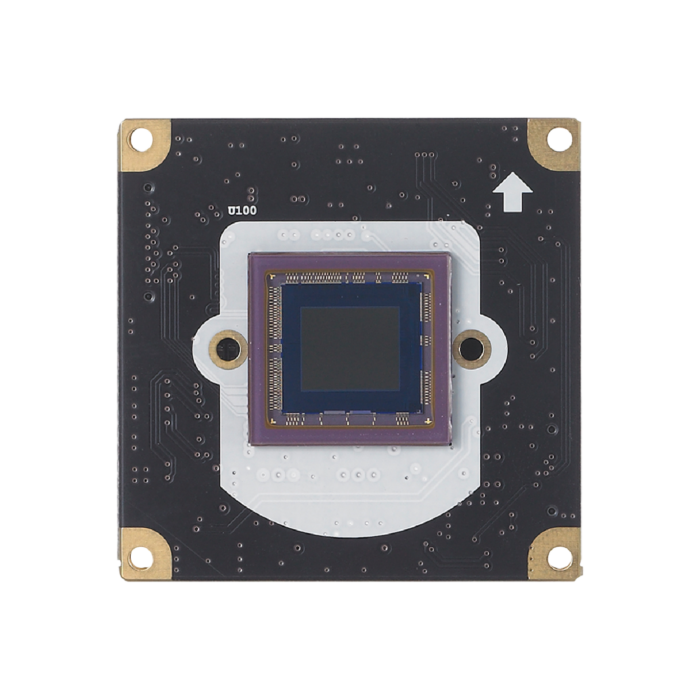

Wonwoo DM-G15-42 Global Shutter Camera Module | 1/1.8" Sony CMOS | 1080p60 | Dual Board 42mm
The Wonwoo DM-G15-42 Global Shutter Camera Module is engineered for precision imaging applications where motion artifacts cannot be tolerated. Built around a 1/1.8" Sony global shutter CMOS sensor, this module delivers true distortion-free capture at up to 1080p60, making it ideal for high-speed robotics, UAV navigation, and industrial automation systems.
Designed in a compact 42mm x 42mm dual-board architecture, the DM-G15-42 offers flexible integration into space-constrained platforms such as drones, gimbals, embedded vision systems, and surveillance payloads. Its multi-format video outputs (BT.1120, HD-SDI, EX-SDI, CVBS) provide seamless compatibility across both modern digital pipelines and legacy systems.
With external trigger input and strobe output, the DMG1542 enables synchronized image capture for machine vision, inspection, and tracking applications. Advanced onboard processing features such as 2D/3D digital noise reduction, defog, high light compensation, and lens shading correction ensure optimal image clarity in challenging environments.
Supporting Pelco-P, Pelco-D, and VISCA protocols, this module integrates easily into PTZ systems, robotics control architectures, and custom embedded solutions.
Key Features:
- Global Shutter Sensor – Motion artifact-free imaging
- 1/1.8" Sony CMOS – High sensitivity, low noise
- 1080p60 / 720p60 – Smooth high-frame-rate capture
- Dual Board Design – Compact 42mm integration
- Multi Video Outputs – BT.1120, HD-SDI, EX-SDI, CVBS
- Trigger + Strobe – Precision synchronization
- Digital Zoom (1x–6x) – Flexible framing
- 2D/3D DNR – Noise reduction in low light
- Defog + HLC – Enhanced visibility
- Lens Flexibility – DC / manual lens support
- Protocol Support – Pelco-P, Pelco-D, VISCA
Applications:
- UAV Vision
- Drone Payloads
- Robotics Vision
- Machine Vision
- Industrial Automation
- Surveillance Systems
- Inspection Systems
- Tracking Systems
- Embedded Vision
- Defense Imaging
| Model | DM-G15-42 |
|---|---|
| Image Sensor | 1/1.8" Sony Global Shutter CMOS |
| Total Pixels | 2,064(H) x 1,554(V) ~ 3.21MP |
| Effective Pixels | 1920(H) x 1080(V) |
| Scanning System | Progressive Scan (Global Shutter) |
| Resolution | 1080p60/50, 1080p30/25, 720p60/50, 720p30/25 |
| Analog Output | 700TVL |
| Video Output | BT.1120, HD-SDI, EX-SDI, CVBS (optional) |
| Lens Mount | DC / Manual |
| Shutter Speed | 1/30 ~ 1/10,000 sec |
| DSS | Off, 2x–15x |
| Day/Night | Auto / Day / Night / External |
| White Balance | Auto / Manual / Indoor / Outdoor |
| DNR | 2D / 3D / Combined |
| Digital Zoom | 1x ~ 6x |
| Privacy Mask | Up to 8 zones |
| Motion Detection | 4 zones |
| Protocols | Pelco-P / Pelco-D / VISCA |
| Communication | Baud: 2400 ~ 115200 |
| Power | DC 12V ±10% |
| Power Consumption | 350mA |
| Operating Temp | -10°C to +50°C |
| Storage Temp | -20°C to +60°C |
| Dimensions | 42 x 42 x 1.2 mm (Dual Board) |
| Weight | 20g |
