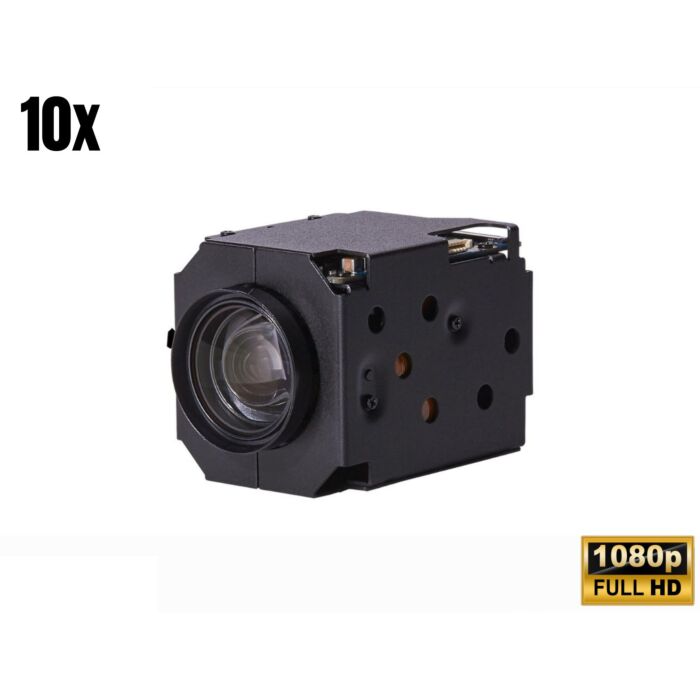

WonWoo MC-G105 3MP Global Shutter HD 10x Zoom Block Camera Module with Sony CMOS sensor
The Won Woo MC-G105 is a high-performance industrial camera designed to meet demanding imaging and video requirements. Equipped with a 1/3.1" 3MP Sony CMOS Sensor, this camera captures 1080p video at 60/30fps and 720p video at 60/30fps, ensuring crystal-clear resolution for both wide-angle and detailed telephoto applications. Its 10x optical zoom lens (focal length: 4.7mm to 47mm, aperture: F1.7 to F3.1) combined with 32x digital zoom delivers precision in capturing distant subjects without compromising quality.
Engineered for versatile environments, the MC-G105 offers advanced Day & Night (ICR) switching, adapting seamlessly to lighting changes with a minimum illumination of 0.1 lux (color) and 0.01 lux (B/W). Integrated 2D+3D noise reduction, digital image stabilization, and defog functionality enhance image clarity in low-light, high-vibration, or foggy conditions. The camera also features privacy masking for up to eight regions, intelligent motion detection, and high light compensation (HLC) to improve visibility in bright or high-glare scenes.
For seamless integration, the NDAA compliant MC-G105 supports VISCA and Pelco-D/P protocols with a choice of LVDS and CVBS video outputs. Built for reliability, it operates across a temperature range of -10°C to +50°C and measures a compact 43.6mm x 47mm x 66mm, weighing just 165g. This makes it ideal for applications in industrial inspection, surveillance, and robotics where space, durability, and high-quality imaging are paramount.
Features:
- 1/3.1" 3MP Sony CMOS Sensor
- 1080p 60/30fps, 720p 60/30fps video resolution
- 10x optical zoom (4.7mm~47mm) & 32x digital zoom
- Day & Night (ICR) switching for low-light conditions
- 2D+3D noise reduction, digital image stabilization
- High Light Compensation (HLC) & defog functionality
- Privacy mask, motion detection, and defect detection
- Supports VISCA, Pelco-D/P protocols
- Video output: LVDS and CVBS
- Wide operating temperature: -10°C to +50°C
Applications:
- Industrial inspection and monitoring
- Security and surveillance systems
- Traffic monitoring and license plate recognition
- Robotics vision systems
- Low-light imaging and remote observation
| Image Sensor | 1/3.1" Sony CMOS Sensor |
| Total Pixels | 2,064 (H) x 1,592 (V) = 3.28M Pixels |
| Active Pixels | 2,064 (H) x 1552 (V) = 3.20M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | Digital: 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps Analog: CVBS |
| Min. Illumination (50%) | Color (1/30s, 79.5dB): 0.1 lux, BW (1/30s, 79.5dB): 0.01 lux Color DSS (1/1s, 79.5dB): 0.01 lux, BW DSS (1/1s, 79.5dB): 0.001 lux |
| Video Output | Digital: LVDS, Analog: CVBS |
| S/N Ratio | More than 50dB (AGC off) |
| Lens Type | 10x Day & Night Zoom Lens |
| Zoom Ratio | Optical 10x, Digital 32x Zoom |
| Focal Length | f = 4.7mm ~ 47mm |
| Aperture Ratio | F1.7 (wide) ~ F3.1 (tele) |
| Angle Of View (D, H, V) | Wide: 54.6° - 48.4° - 28.4° Tele: 6.9° - 6° - 3.4° |
| Trigger Polarity | Active Low / Active High |
| Trigger Delay | 0 ~ 255.9ms |
| Strobe Polarity | Active Low / Active High |
| Strobe Delay | Ext-Trigger: 0 ~ 255.9ms / Free run: 0 ~ (1V period – Width)ms |
| Strobe Width | Ext-Trigger: 0 ~ 255.9ms / Free run: 0 ~ (1V period – Delay)ms |
| Shutter Speed (Ext-trigger) | 1/30(25) ~ 1/40,000 sec |
| AGC (Ext-trigger) | 0 ~ 10 steps |
| Iris (Ext-trigger) | Close ~ F1.7 |
| Day & Night (Ext-trigger) | Day / Night |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 1.0 / 2.0 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10Day |
| Digital Zoom | Off / MAX 2x ~ 32x |
| Exposure | Auto / Iris.P / Shut.P / Manual |
| Digital Slow Shutter(DSS) | Off / 2x / 4x / 8x / 16x / 32x (/64x : 60 or 50fps mode only) |
| Brightness | 0 ~ 14 steps |
| Back Light | Off / BLC / HLC |
| White Balance | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext |
| DNR | 2D/3D, 2D+3D |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 ~ 15 steps |
| DWDR | Off / Manual / Auto |
| Defog | Off / Manual / Auto |
| Privacy Mask | Off/On (8 points) |
| Motion Detection | Off/On (4 points) |
| Defect Detection | Off/On |
| System | NTSC/PAL |
| Communication | Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : Pelco-P / Pelco-D / VISCA |
| Power Source | 9V to 15V DC |
| Power Consumption | MAX 430mA (@ 12VDC) |
| Dimensions | 43.6(W) x 47(H) x 66(D) |
| Weight | 165g |
