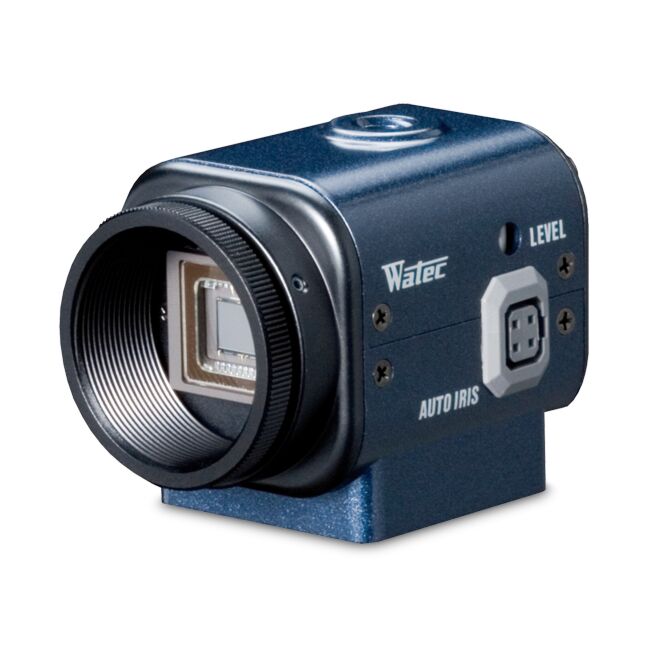

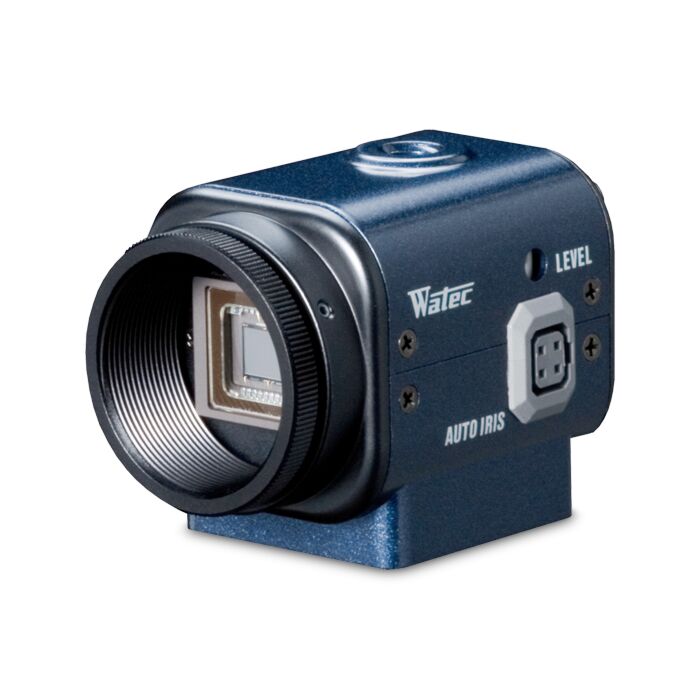

Watec WAT-902H3-ULTIMATE (EIA) Monochrome Industrial Camera (Discontinued)
SKU
WAT-902H3-ULT-CCIR
The WAT-902H3 ULTIMATE (1/3" format) is the newest and lowest light gather monochrome camera offered by Watec. With practical application in mind, Watec redesigned the base platform of the 902 series cameras to gain more sensitivity and make available functionality control of the camera providing the user the ability to apply this camera to nearly any application requiring near IR visibility and full camera control.
Signal System | EIA |
Pick-up element | 1/3" interline transfer CCD image sensor |
Number of total pixels | 811(H) × 508(V) |
Effective pixels | 768(H) × 494(V) |
| Unit cell size | 6.35um（H) × 7.40um(V) |
| Shutter speeds | EI1: 1/60 sec. - 1/100000 sec. EI2: 1/100 sec. - 1/100000 sec. FL: 1/100 sec. OFF: 1/60 sec. 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec. |
| Minimum illumination | 0.0002 lx. F1.4 |
| Synchronizing system | Internal sync. |
| Video output | 1Vp-p, 75ohms, unbalanced |
| Resolution (H) | 570TVL (Center) |
| SN ratio | More than 50dB (AGC OFF) |
| AGC | HI: 5-60dB; LO: 5-32dB; MGC(5-60dB) |
| Back light compensation | OFF(Default); Center; Lower; Center + lower |
| Gamma correction | HI (γ≒0.35); LO (γ≒0.45); OFF (γ≒1) |
| Power supply | DC12V±10% |
| Power consumption | 1.32W (110mA) |
| Operating temperature | -10°C - +40°C |
| Storage temperature | -30°C - +70°C |
| Dimensions(W×H×L) | 35.5 × 40 × 63 (mm) |
| Weight | approx. 98g |
