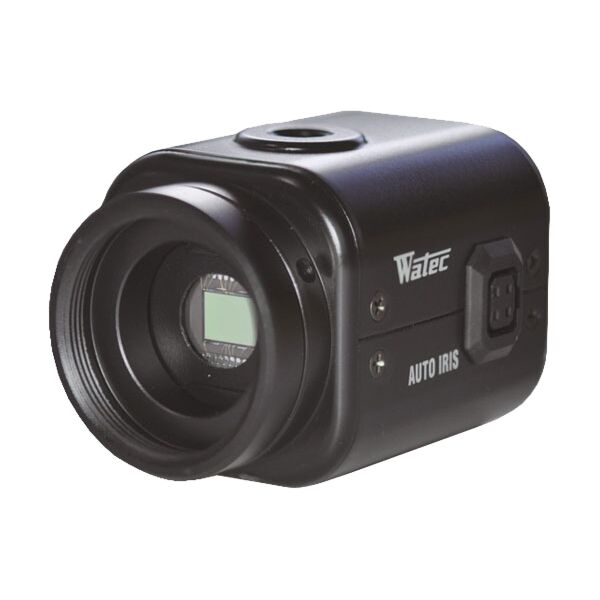

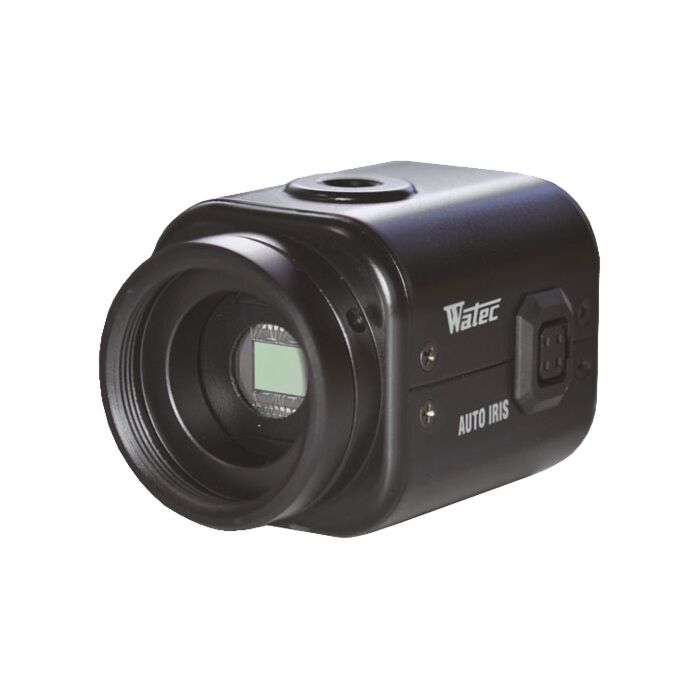

Watec WAT-902B Hi-Res B/W CCTV Camera, 570 TVL, 1/2" CS Mount, 0.003 lux @ F1.4

Watec's 902B high sensitivity camera with a RCA video out and auto iris connection.

*Product is discontinued, Replacement Option: WAT-3500

SKU
Wat-902B EIA

Watec's WAT-902B is a high sensitivity camera with a RCA video out and auto iris connection. Watec WAT-902B features include Shutter speed control, Electronic iris, Flickerless mode, Back light compensation, AGC.

Quick Specs
WAT-902B-NTSC
Signal System
NTSC
Pick-up element
1/2 inch Interline transfer CCD image sensor
Number of total pixels
811 (H) X 508 (V) (EIA), 795 (H) X 596 (V) (CCIR)
Effective pixels
768 (H) X 494 (V) (EIA), 752 (H) X 582 (V) (CCIR)
Unit cell size 8.4μm (H) X 9.8μm (V) (EIA), 8.6μm (H) X 8.3μm (V) (CCIR)
Scanning system 2:1 interlace
Synchronizing system Internal
Video output Composite Video,1 Vp-p, 75ohm Unbalanced
Resolution(Horizontal) 570TV lines (center)
Minimum illumination 0.03 lx. F1.4 (AGC Low)
0.003 lx. F1.4 (AGC High)
Gamma Correction γ≒0.45(ON), 1.0(OFF)
AGC Hi: 5~32dB, Lo: 5~12dB, OFF: fix10dB
S/N Ratio 50dB (AGC OFF, γ =1)
AE Mode Electronic iris: 1/60(EIA), 1/50(CCIR)~ 1/100000sec.
Flicker-less: shutter speed 1/100(EIA), 1/120(CCIR)
OFF: 1/60(EIA), 1/50(CCIR)
Back light compensation ON/OFF selectable
Lens mount CS-mount
Installation screw U 1/4inch (D=5mm) (Top/Bottom)
Connection terminal Video out (RCA), Power, Auto iris
Power supply DC +10.8~ 13.2V (12V±10%)
Current Max. 135mA
Operating temperature -10℃ ~ +40℃
Storage temperature -30℃ ~ +70℃
Dimensions 35.5 (W) X 36 (H) X 58 (L)mm
Weight Approx. 90g
Accessories DC-plug (WPDC12), Iris-plug (AIC)
