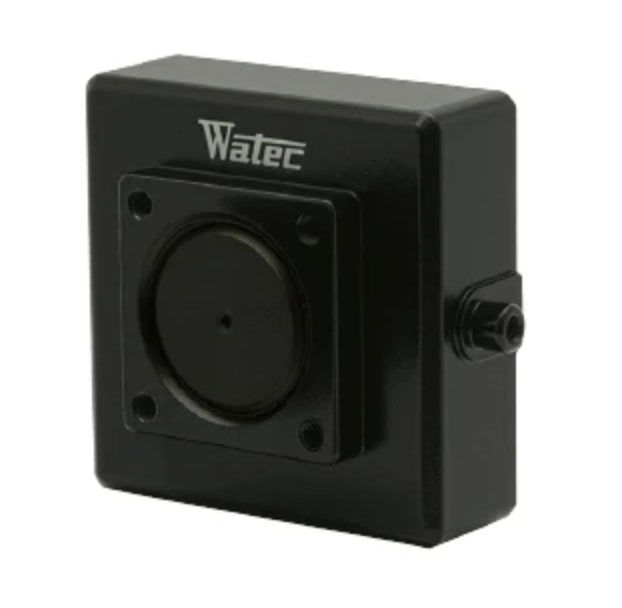

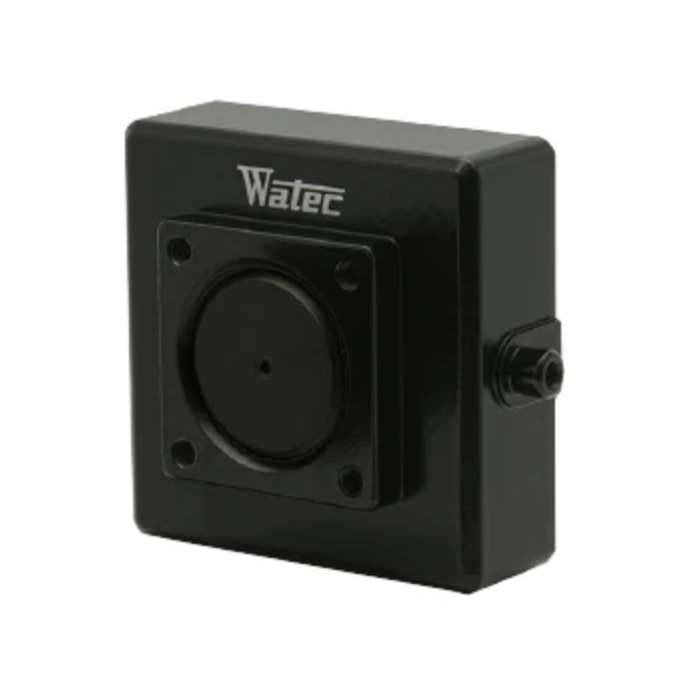

Watec WAT-660E P3.7 EIA 1/4" Miniature Camera (Discontinued)
SKU
WAT-660E P3.7
Quick Overview
*Product is Discontinued, Call For Replacement Options
1/4 CMOS Sensor @ 480TVL W/ 0.002lx F2.0. Standard Lens 3820BC-12 W/ Various M-12 P=0.5 Lens Options Available. *6mm Version.*
Compact square camera with built-in lens
Features:
- Min. illumination 0.01 lx F4.5 (AGC ON=42dB, Shutter=OFF)
- Wide input voltage range (*DC 5V to 12V)
*Glass lenses and pinhole lens are not interchangeable
| Image Sensor | 1/4” CMOS image sensor |
| Number of effective pixels | 648(H) × 488(V) |
| Unit cell size | 5.6μm(H) × 5.6μm(V) |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Video outputs | Composite video, 1.0 V(p-p) 75Ω (Unbalanced) |
| Resolution (H) | More than 480TVL (Center) |
| Minimum illumination | 0.01 lx F4.5 (AGC ON=42dB, Shutter=OFF) |
| S/N | More than 52dB (AGC OFF=0dB, γ=1.0) |
| Function settings | - |
| AE mode | Fixed: - EI: 1/60 - 1/100000 sec. - 1/50 - 1/100000 sec. |
| AGC | ON: 0 - 42dB OFF: - |
| MGC | - |
| Gamma characteristics | γ≒0.45 |
| Video level | 100IRE |
| Noise reduction | - |
| Wide dynamic range | - |
| Lens iris | - |
| Back light compensation | BLC |
| White blemish correction | - |
| Sharpness | - |
| Defog | - |
| Digital zoom | - |
| Privacy mask | - |
| Mirror image | - |
| Freeze | - |
| Motion detection | - |
| Neg. image | - |
| Interface | 4P connector (Composite Video, Power in) |
| Power supply | DC+5V - 12V |
| Power consumption | 0.45W/90mA (DC+5V), 0.45W/37.5mA (DC+12V) |
| Operating / Storage Temperature | -10 - +50℃ / -30 - +70℃ |
| Operating / Storage Humidity | 95% RH or less (Without condensation) |
| Lens mount | M13 P=1.0 |
| Standard lens | 3745B-13P (f3.7 F4.5) |
| Weight | Approx. 23g |
| Accessories | 4P cable |
