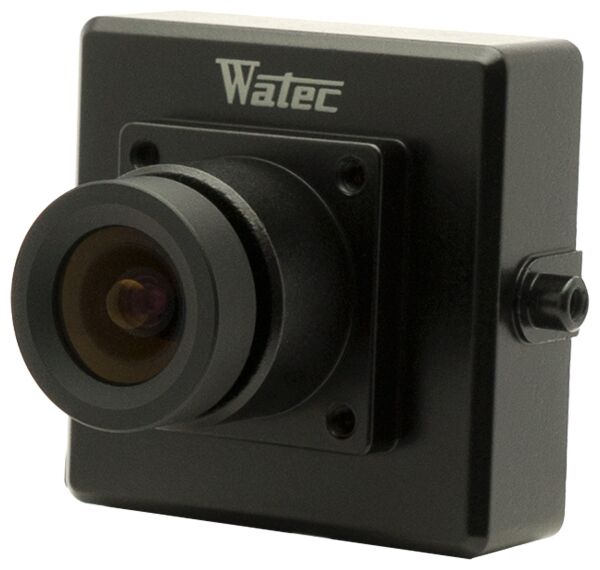

Watec WAT-660E G3.8 Miniature Camera 1/4" CMOS 480TVL 0.002lx M12 Lens Mount
*Please note tariff fee is included in price*
Watec WAT-660E G3.8 Miniature Camera with 1/4" CMOS sensor, 480TVL resolution, and ultra-low light sensitivity of 0.002 lx at F2.0. Includes standard 3820BC-12 3.8mm lens, with support for various M12 P=0.5 lens options. Compact, lightweight design with wide DC 5V–12V input range.
The Watec WAT-660E G3.8 is a compact miniature camera engineered for applications requiring discreet, high-quality imaging in low-light conditions. Built around a 1/4-inch CMOS sensor, the WAT-660E delivers sharp 480TVL resolution with a high signal-to-noise ratio exceeding 52dB (AGC OFF). With an impressive minimum illumination of just 0.002 lx at F2.0, the camera maintains clarity and detail in extremely dark environments, making it a reliable choice for embedded surveillance, covert monitoring, and industrial vision systems.
Designed for versatility, the WAT660E features an M12 P=0.5 lens mount and comes standard with a 3.8mm F2.0 lens, while supporting a wide range of optional M12 lenses for tailored field-of-view requirements. It outputs through composite video (1.0 Vp-p, 75Ω) and supports progressive scanning with electronic shutter speeds ranging from 1/60 to 1/100,000 sec. (EIA). A broad DC 5V–12V input range ensures flexible integration across various environments, while its ultra-compact, lightweight build (33g) allows seamless installation in space-constrained applications. The WAT-660E is engineered for durability, maintaining performance in operating temperatures from -10°C to +50°C, making it suitable for both industrial and embedded imaging workflows.
Features:
- 1/4” CMOS image sensor with 480TVL resolution
- Compact square miniature design with built-in 3.8mm F2.0 lens
- Minimum illumination of 0.002 lx for ultra-low-light performance
- Progressive scanning with internal synchronization
- Composite video output (1.0 Vp-p, 75Ω)
- High signal-to-noise ratio >52dB (AGC OFF)
- Electronic shutter: 1/60–1/100,000 sec (EIA), 1/50–1/100,000 sec (CCIR)
- Automatic Gain Control (AGC) ON: 0–42dB
- Backlight Compensation (BLC) support
- M12 P=0.5 lens mount with optional lens options available
- Wide DC 5–12V input voltage range
- Lightweight, approx. 33g
- Includes 4P connector cable
Applications:
- Miniature security and surveillance systems
- Embedded vision systems and OEM integration
- Covert and low-profile monitoring
- Industrial inspection and automation
- Medical imaging and laboratory equipment
- Robotics and R&D projects
| Image Sensor | 1/4” CMOS image sensor |
| Number of effective pixels | 648(H) × 488(V) |
| Unit cell size | 5.6μm(H) × 5.6μm(V) |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Video outputs | Composite video, 1.0 V(p-p) 75Ω (Unbalanced) |
| Resolution (H) | More than 480TVL (Center) |
| Minimum illumination | 0.002 lx F2.0 (AGC ON=42dB, Shutter=OFF) |
| S/N | More than 52dB (AGC OFF=0dB, γ=1.0) |
| Function settings | - |
| AE mode | Fixed: - EI: 1/60 - 1/100000 sec. - 1/50 - 1/100000 sec. |
| AGC | ON: 0 - 42dB OFF: - |
| MGC | - |
| Gamma characteristics | γ≒0.45 |
| Video level | 100IRE |
| Noise reduction | - |
| Wide dynamic range | - |
| Lens iris | - |
| Back light compensation | BLC |
| White blemish correction | - |
| Sharpness | - |
| Defog | - |
| Digital zoom | - |
| Privacy mask | - |
| Mirror image | - |
| Freeze | - |
| Motion detection | - |
| Neg. image | - |
| Interface | 4P connector (Composite Video, Power in) |
| Power supply | DC+5V - 12V |
| Power consumption | 0.45W/90mA (DC+5V), 0.45W/37.5mA (DC+12V) |
| Operating / Storage Temperature | -10 - +50℃ / -30 - +70℃ |
| Operating / Storage Humidity | 95% RH or less (Without condensation) |
| Lens mount | M12 P=0.5 |
| Standard lens | 3820BC-12 (f3.8 F2.0) |
| Weight | Approx. 33g |
| Accessories | 4P cable |
