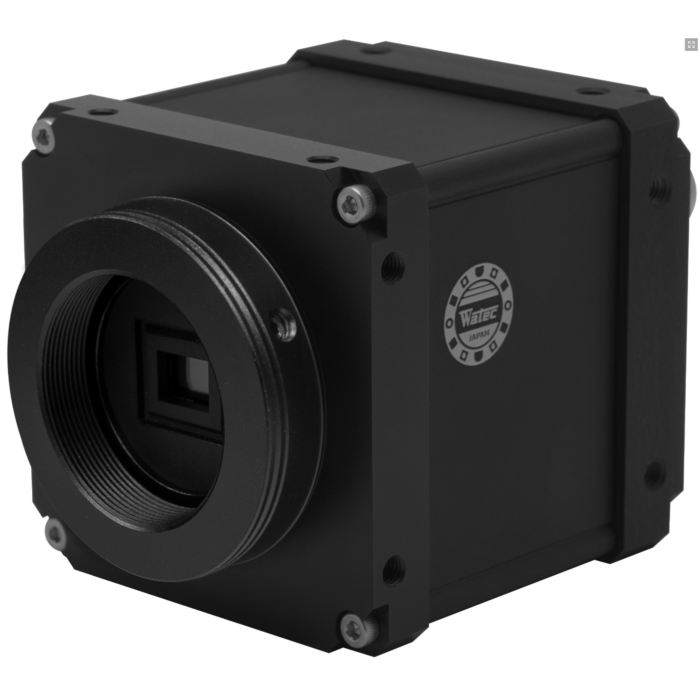

Watec WAT-3200 High Sensitivity 3G/HD-SDI Monochrome Camera, Full HD Low-Light Imaging
*Please note tariff fee is included in price*
Ultra-low-light monochrome camera with Full HD 1080/60p output, 3G/HD-SDI interface, advanced noise reduction, and superior NIR sensitivity down to 0.000007 lx. Perfect for scientific, industrial, and security-grade imaging.
The Watec WAT-3200 is a high-sensitivity monochrome camera engineered for precision imaging in extreme low-light environments. Featuring a 1/2.8-inch BSI CMOS sensor, it delivers Full HD 1080/60p resolution with remarkable detail and clarity. With a minimum illumination of 0.000007 lx, it captures sharp, noise-controlled images in near-dark conditions, making it a trusted tool for industrial inspection, scientific research, and specialized surveillance applications.
Built with Watec’s advanced imaging technology, the WAT-3200 ensures minimal latency through its 3G/HD-SDI output and comprehensive image control, including 3D/2D noise reduction, WDR, and adjustable gamma profiles. RS-232 and OSD remote configuration options provide full integration flexibility, while its compact, lightweight CS-mount design supports seamless installation across professional imaging systems.
Features:
- 1/2.8-inch BSI CMOS sensor for superior light sensitivity
- Full HD 1080/60p output with 3G/HD-SDI interface
- Ultra-low-light performance: 0.000007 lx minimum illumination
- Adjustable 3D/2D noise reduction, WDR, and defog function
- RS-232 control (Pelco-D/P, VISCA) for remote configuration
- Compact CS-mount body, lightweight at 131 g
- Internal synchronization and progressive scan output
- Privacy masking, mirror/flip options, motion detection
- Operates from -10°C to +50°C, built for reliable field performance
Applications:
- Industrial Inspection
- Broadcast Imaging
- Aerospace Testing
- Security Monitoring
- Low-Light Observation
| Sensor type | 1/2.8 inch BSI CMOS image sensor |
| Number of effective pixels | 1945(H) x 1097(V) |
| Unit cell size | 2.9µm(H) x 2.9µm(V) |
| Imaging System | RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Video Outputs | 3G-SDI, HD-SDI, HD-VLC Composite: 1.0 V (p-p) 75Ω (Unbalanced) |
| Output Format | 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 720/60p, 720/59.94p, 720/50p, NTSC, PAL |
| Resolution | More than 1000TVL (Center) |
| Minimum illumination | 0.0001 Ix Fl.4 (AGC HIGH=72dB, Shutter=OFF) 0.000007 Fl.4 (AGC HIGH=72dB, Shutter=xlS) |
| S/N | More than 55dB (AGC OFF=0dB, γ=1.0) |
| Function Settings | OSD : Remote Controller, RS-232 (Pelco-D, Pelco-P) / Communication: RS-232 (Pelco-D, Pelco-P, Visca) |
| AE Mode | Fixed - x2, x3, x4, xS, x61 x7, xS, x9, xlO, x12, x15 (frame) 1/30, 1/60, 1/120, 1/180, 1/240, 1/300 (sec.) ※1 -- 1/25, 1/50, 1/100, 1/150, 1/200, 1/250 (sec.)※2 -- 1/500, 1/1000, 1/2000, 1/5000, 1/10000 (sec.) EI - 1/30 - 1/10000 (sec.)※1 -- 1/25 - 1/10000 (sec.)※2 x15 - 1/10000 (sec.) |
| White Balance | - |
| AGC | ON - 0 - 72dB (MAX:0 - 72dB) OFF - 0 dB |
| MGC | 0 - 72dB (5dB step) |
| Day/Night | - |
| Gamma Characteristics | γ≒USER (Level Adjustable) |
| Noise Reduction | 3DNR OFF/ON Level adjustable, 2DNR OFF/ON Level adjustable, 3D+2DNR ON Level adjustable |
| Wide Dynamic Range | WDR OFF/ON Level adjustable, D-WDR OFF/ON Level adjustable |
| Lens Iris | DC |
| Back Light Compensation | BLC, HSBLC |
| White Blemish Correction | Up to 2046 pixels |
| Sharpness | OFF/ON Level adjustable |
| Defog | OFF/ON Level adjustable |
| Digital Zoom | ZOOM (x1.01 - x6.00), PAN/TILT |
| Privacy Mask | 8 masks |
| Mirror Image | OFF, V-FLIP, H-FLIP, HV-FLIP |
| Freeze | OFF/ON |
| Motion Detection | OFF/ON 4 areas arbitrarily configurable |
| Neg. Image | OFF/ON |
| Interface | BNC (3G/HD-SDI), 2P Connector (Composite Video), Power In, Auto Iris, Mini DIN8P (RC-02, RS-232) |
| Power Supply | DC+12V ±10% |
| Power Consumption | 2.52W (210mA) |
| Operating Temperature | -10℃ ～ +50℃ |
| Storage Temperature | -30℃ ～ +70℃ |
| Operating/Storage Humidity | 95% RH or less (Without condensation) |
| Lens Mount | CS mount |
| Weight | Approx. 131g |
| Accessories | WPDC12-R (DC plug), 2P Cable, Hex. Wrench, Camera bracket, RC-02 (Remote controller) |
