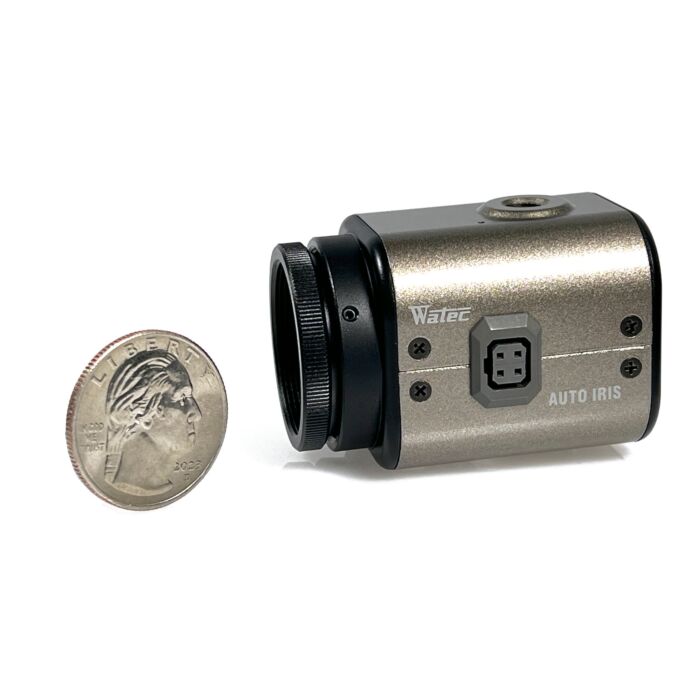

Watec WAT-2400S IP Camera
SKU
WAT-2400S
$1,079.00
Quick Overview
*Please note tariff fee is included in price*
Aegis Electronic Group, Inc. is proud to introduce the Watec WAT-2400S IP Camera. The camera features a 1/2.8 inch BSI CMOS image sensor.1/2.8" Compact High Sensitivity Network Color Camera
Features:
- 1/2.8 BSI CMOS Sensor
- Resolution:1920x1080
- IP HD Camera
- High Sensitivity
- High Resolution
Applications:
- Medical Imaging
- Hobby-related
- Rapid Deployment
- Security Applications
| Pick Up Element | 1/2.8 inch BSI CMOS image sensor |
| Number of effective pixels | 1945(H) × 1097(V) |
| Unit cell size | 2.9μm(H) × 2.9μm(V) |
| Imaging System | RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Output size | 1920 x 1080, 1280 x 720, 800 x 600, 704 x 480, 704 x 400, 640 x 480, 640 x 360, 320 x 240 |
| Max. frame rate | 30fps |
| Video Compression | H.264, MJPEG |
| Minimum illumination | 0.007 lx F1.2 ( AGC HIGH=72dB, Shutter=OFF |
| Function settings | Browser |
| AE mode Fixed | 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000, 1/30000 sec |
| AE mode EI | 1/30～1/30000 sec x32～1/30000 sec. |
| White Balance | ATW, PWB, MWB, PRESET ( 3000K, 5000K, 8000K ) |
| Gamma characteristics | γ≒0.45, 0.55, 0.65, 0.7 |
| Noise Reduction | 3DNR OFF/ON Level adjustable |
| Wide dynamic range | WDR OFF/ON Level adjustable |
| Privacy | 16 masks |
| Mirror Image | OFF, V-FLIP, H-FLIP, HV-FLIP |
| Motion Detection | OFF/ON 4areas arbitrarily configurable |
| Interface | RJ45 ( 10BASE-T, 100BASE-TX ) |
| Power Supply | PoE +48V（IEEE802.3af）, DC+12V～+36V±10 % |
| Power Consumption | 1.92W / 40mA ( PoE +48V ), 1.56W / 130mA ( DC +12V ) |
| Operating Temp | 0～+50℃ |
| Storage Temp | -30～+70℃ |
| Operating / Storage humidity | Less than 95% RH (Without condensation) |
| Lens Mount | CS mount ( Back focus adjustable ) |
| Weight | Approx. 80g |
