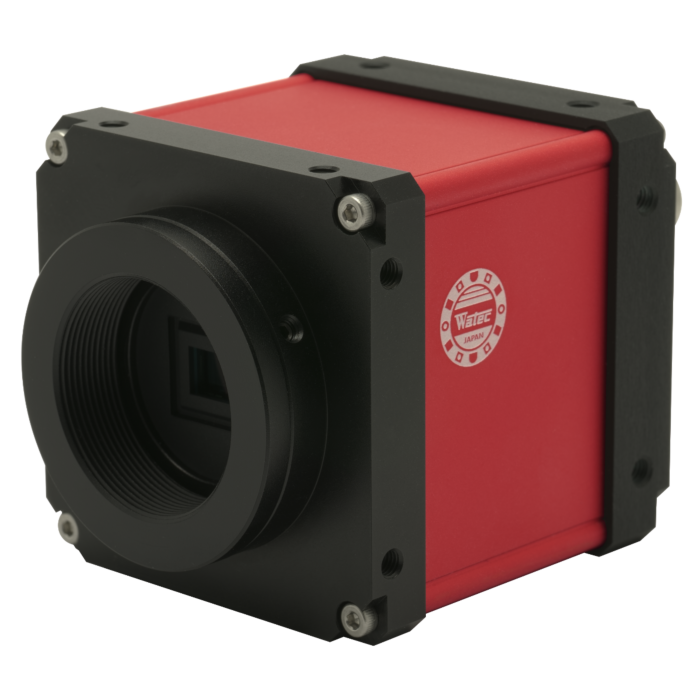

Watec WAT-2200MK2 using 1/2.8inch CMOS sensor, 1080p HD-SDI Camera
*Please note tariff fee is included in price*
The Watec WAT-2200MK2 is a compact 1080p HD-SDI camera featuring a 1/2.8" BSI CMOS sensor and ultra-low-light performance down to 0.0004 lux, ideal for surveillance and industrial monitoring.
The Watec WAT-2200MK2 1080P HD-SDI camera is a compact and reliable surveillance solution renowned for its exceptional imaging capabilities, boasting an impressive low-light performance of up to 0.003 lux. With advanced sensor technology and superior low-light sensitivity, it delivers crisp and clear footage in any lighting condition.
It's customizable settings allow for tailored performance, while its durable construction ensures longevity in demanding environments. Ideal for round-the-clock surveillance, the WAT2200MK2 is a versatile and dependable choice for professional security and industrial needs, providing peace of mind and effective monitoring capabilities for a wide range of applications.
Key Features:
- 1/2.8" BSI CMOS sensor with 1080p HD imaging performance
- Ultra-low-light sensitivity down to 0.0004 lux (with shutter)
- 3G-SDI, HD-SDI, and composite video outputs for flexible integration
- Supports multiple HD formats up to 1080p60 and 720p60
- Advanced image processing: WDR, 2D/3D noise reduction, defog, and BLC
- High signal-to-noise ratio (>55dB) for clean, low-noise images
- Remote control via RS-232 (Pelco-D/P, VISCA) and OSD configuration
- Compact, rugged design with low power consumption (2.4W)
- CS-mount compatibility with adjustable back focus
- Digital zoom, motion detection, privacy masking, and image flip functions
Applications:
- Low-light surveillance and security systems
- Industrial monitoring and process inspection
- Perimeter and border security
- Transportation and traffic monitoring (ITS)
- Robotics and unmanned systems (UAV/UGV)
- Broadcast and live event monitoring
- Scientific and research imaging in low-light environments
- Infrastructure and facility monitoring (24/7 operation)
| Sensor type | 1/2.8 inch BSI CMOS image sensor |
| Number of effective pixels | 1945(H) × 1097(V) |
| Unit cell size | 2.9μm(H) × 2.9μm(V) |
| Imaging System | RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Video Outputs | 3G-SDI, HD-SDI, HD-VLC Composite: 1.0 V (p-p) 75Ω (Unbalanced) |
| Output Format | 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 720/60p, 720/59.94p, 720/50p, NTSC, PAL |
| Resolution | More than 1000TVL (Center) |
| Minimum illumination | 0.006 lx F1.2 (AGC HIGH=72dB, Shutter=OFF) 0.0004 lx F1.2 (AGC HIGH=72dB, Shutter=x15) |
| S/N | More than 55dB (AGC OFF=0dB, γ=1.0) |
| Function Settings | OSD : Remote Controller, RS-232 (Pelco-D, Pelco-P) / Communication: RS-232 (Pelco-D, Pelco-P, Visca) |
| AE Mode | Fixed - x2, x3, x4, x5, x6, x7, x8, x9, x10, x12, x15 (frame) 1/30, 1/60, 1/120, 1/180, 1/240, 1/300 (sec.) ※1 -- 1/25, 1/50, 1/100, 1/150, 1/200, 1/250 (sec.)※2 -- 1/500, 1/1000, 1/2000, 1/5000, 1/10000 (sec.) EI - 1/30 - 1/10000 (sec.)※1 -- 1/25 - 1/10000 (sec.)※2 x15 - 1/10000 (sec.) |
| White Balance | ATW, MWB, PWB |
| AGC | ON - 0 - 72dB (MAX:0 - 72dB) OFF - |
| MGC | 0 - 72dB (5dB step) |
| Day/Night | - |
| Gamma Characteristics | γ≒USER (Level Adjustable) |
| Noise Reduction | 3DNR OFF/ON Level adjustable, 2DNR OFF/ON Level adjustable, 3D+2DNR ON Level adjustable |
| Wide Dynamic Range | WDR OFF/ON Level adjustable, D-WDR OFF/ON Level adjustable |
| Lens Iris | DC |
| Back Light Compensation | BLC, HSBLC |
| White Blemish Correction | Up to 2046 pixels |
| Sharpness | Level Adjustable |
| Defog | Level Adjustable |
| Digital Zoom | ZOOM (x1.01 - x6.00), PAN/TILT |
| Privacy Mask | 8 masks |
| Mirror Image | OFF, V-FLIP, H-FLIP, HV-FLIP |
| Freeze | OFF/ON |
| Motion Detection | OFF/ON 4 areas arbitrarily configurable |
| Neg. Image | OFF/ON |
| Interface | BNC (3G/HD-SDI), 2P Connector (Composite Video), Power In, Auto Iris, Mini DIN8P (RC-02, RS-232) |
| Power Supply | DC+12V ±10% |
| Power Consumption | 2.4W (210mA) |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Operating/Storage Humidity | 95% RH or less (Without condensation) |
| Lens Mount | CS mount (Back focus adjustable) |
| Weight | Approx. 125g |
| Accessories | WPDC12-R (DC plug), 2P Cable, Hex. Wrench, Camera bracket, RC-02 (Remote controller) |
