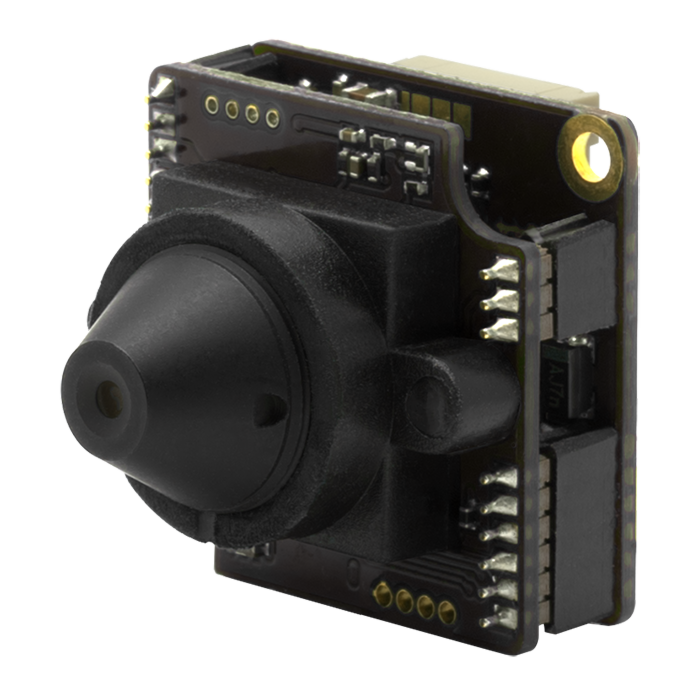

Watec WAT-1100MBD P3.3 1/3.2” High Sensitivity Miniature Day/Night Board Camera
*Please note tariff fee is included in price*
Compact 1/3.2” BSI CMOS board camera with 750TVL resolution and 0.005 lx sensitivity. Features mechanical-less ICR, 2DNR, and WDR for reliable imaging in low-light or high-contrast scenes.
The WAT-1100MBD P3.3 is an ultra-miniature high-resolution day/night camera designed for maximum adaptability and low-light performance. It uses a 1/3.2” BSI CMOS sensor with 1280×960 effective pixels and supports 750TVL horizontal resolution. The camera features mechanical-less ICR for day/night switching, 2D noise reduction, wide dynamic range, and advanced image adjustments via OSD.
Its compact 23×23×34mm form factor makes it ideal for integration into UAVs, security systems, inspection setups, and covert surveillance installations. High sensitivity (0.005 lx at F1.8, AGC 54dB) ensures excellent imaging even in near-dark conditions.
Features:
- 1/3.2” BSI CMOS image sensor, 1280×960 pixels
- 750TVL horizontal resolution
- Ultra-compact 23×23×34mm form factor
- High sensitivity: 0.005 lx F1.8 (AGC 54dB)
- Mechanical-less ICR day/night function
- 2DNR (level adjustable)
- Wide dynamic range (WDR) and ATR adjustable
- OSD controlled via optional remote controller
- Multiple AE modes: 1/60–1/100,000 sec
- DC iris lens, standard 3.3mm F2.4 M12 lens
- Privacy masks: 16 zones
- Mirror image options: Off, V-Flip, H-Flip, HV-Flip
- Defog: Off / Auto (correction level selectable)
- Power: DC 5–12V, Max 0.72W
- Operating temperature: -10°C to +50°C, storage -30°C to +70°C
- Weight: 8g
Applications:
- Security & Surveillance
- Low-Light & Low-Visibility Imaging
- Inspection & Industrial Monitoring
- UAV / POV Systems
| Pick-up element | 1/3.2 inch BSI CMOS image sensor |
| Number of effective pixels | 1280(H) × 960(V) |
| Unit cell size | 3.5μm(H)×3.5μm(V) |
| Imaging system | RGB+W array mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Video output | Composite: 1.0 V(p-p) 75Ω (Unbalanced) |
| Resolution (H) | More than 750TVL (Center) |
| Minimum illumination | 0.005 lx F1.8 (AGC=54dB) |
| S/N | More than 55dB (AGC=OFF、γ=1.0) |
| Function settings | OSD (On Screen Display) operated by remote controller |
| AE mode | Fixed: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000 sec EI: 1/60 - 1/100000 sec. |
| White balance | ATW, PUSH, USER1, USER2, MANUAL, PUSH LOCK |
| AGC | 0 - 54dB |
| MGC | MIN, 6, 12, 18, 24, 30, 36, 42, 48, MAX dB |
| Day / Night | ICR mechaless Day/Night |
| Gamma characteristics | γ≒0.45 |
| Noise reduction | 2DNR ON (Level adjustable) |
| Wide dynamic range | Mutiple exposure WDR: ON (Level selectable) / OFF ATR : ON (Level selectable) / OFF |
| Lens Iris | DC |
| Back Light Compensation | OFF / BLC / HLC |
| Defog | OFF / AUTO (Correction level selectable) |
| Privacy Mask | 16masks |
| Mirror Image | OFF / V-FLIP / H-FRIP / HV-FLIP |
| Sharpness | 0 - 255 (SHARPNESS) |
| Power Supply | DC+5V - 12V |
| Power Consumption | 0.72W (60mA) ※12V |
| Operating Temperature | -10 - +50℃ |
| Storage Temperature | -30 - +70℃ |
| Operating / Storage humidity | 95% RH or less (Without condensation) |
| Lens Mount | M12 P=0.5 |
| Standard Lens | 3324B-12P (A) (f3.3 F2.4) |
| Weight | Approx. 8g |
| Accessories | 4P cable, 2P cable |
