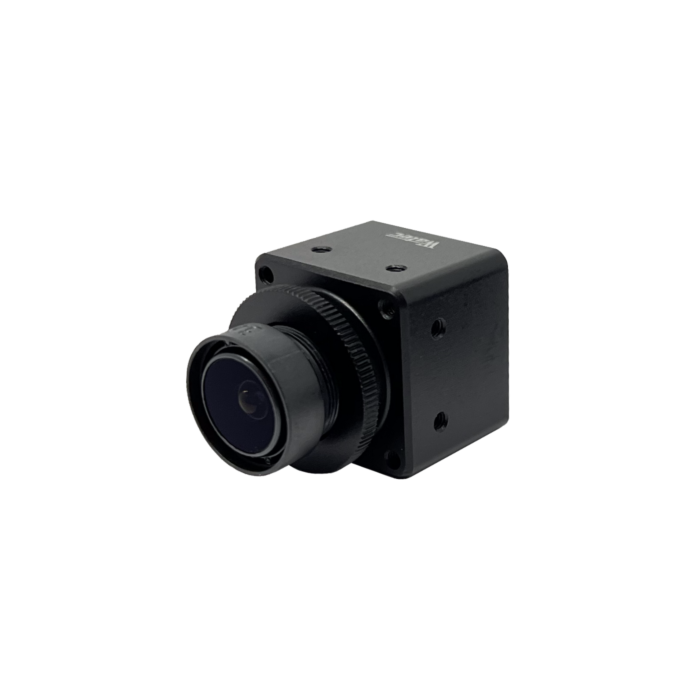

Watec WAT-09U2 G3.6 1/2.8" High Sensitivity HD-SDI USB Full HD B&W Camera
*Please note tariff fee is included in price*
Ultra-compact design enables the camera to be installed anywhere from surveillance to embedded applications
The WAT-09U2 G3.6 by Watec redefines high-performance imaging for professional and industrial use. Built with a 1/2.8-inch BSI CMOS sensor, it delivers outstanding clarity in Full HD 1080/60p through its USB interface. Designed for precise detail capture, this camera excels in applications demanding excellent visibility in extremely low-light environments.
Engineered for reliability and flexibility, the WAT09U2 G3.6 offers a compact form factor ideal for embedded and OEM integrations. Its exceptional low-light performance (down to 0.000007 lx at F1.4) allows clear imaging in near-dark conditions, making it perfect for security, machine vision, and scientific applications that depend on precision and stability.
Features:
- 1/2.8-inch BSI CMOS image sensor.
- Full HD 1080/60p video with 3G/HD-SDI or USB output.
- Minimum illumination 0.000007 lx (F1.4, AGC HIGH).
- Low-latency signal with high signal integrity.
- Compact and lightweight design (18g).
- M12 lens mount with lens fixing ring (Std lens: G3.6).
- Wide exposure range up to 1/8000 sec.
- Adjustable sharpness and gamma control.
- USB-powered (0.75W) and plug-and-play compatible.
- Operating temperature range from -10°C to +50°C.
Applications:
- Security Surveillance
- Machine Vision
- Medical Imaging
- Scientific Research
- Industrial Inspection
- Embedded Systems
- UAV Integration
| Sensor type | 1/2.8 inch CMOS image sensor |
| Number of effective pixels | 1945(H) x 1097(V) |
| Unit cell size | 2.9µm(H) x 2.9µm(V) |
| Imaging System | - |
| Synchronizing Systems | Progressive |
| Output Size | 1920x1080, 1280x720, 640x480, 320x240 |
| Max. Frame Rate | 60 fps |
| Video Compression | MJPG, YUY2 |
| Video Output | USB Video Class (Compatible) |
| Resolution | More than 800 (Center) |
| Minimum Illumination | 0.004 lx F2.0 (AGC ON=36dB, Shutter=OFF) 0.001 lx F2.0 (AGC ON=36dB, Shutter=1/7.5 sec.) |
| S/N | - |
| Function Settings | Camera Viewer |
| AE Mode | Fixed - 1/15, 1/7.5, 1/4 sec. 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 sec. EI - 1/30 - 1/8000 sec. 1/7.5 - 1/8000 sec. |
| White Balance | - |
| AGC | ON 0 - 36 dB OFF - |
| MGC | 0 - 72dB (1dB step) |
| Gamma Characteristics | y≒USER (Level adjustable) |
| Noise Reduction | - |
| Wide Dynamic Range | - |
| Lens Iris | - |
| Back Light Compensation | BLC |
| White Blemish Correction | - |
| Sharpness | Level adjustable |
| Defog | - |
| Digital Zoom | x1, x1.38, x2.25 *1 x1, x1.2, x1.5 *2 |
| Privacy Mask | - |
| Mirror Image | - |
| Freeze | - |
| Motion Detection | - |
| Neg. Image | - |
| Interface | USB (High Speed) |
| Power Supply | USB +5V |
| Power Consumption | 0.75W (150mA) |
| Operating / Storage Temperature | -10 - +50°C / -30 - +70°C |
| Operating / Storage Humidity | 95% RH or less (Without condensation) |
| Lens Mount | M12 P=0.5 |
| Standard Lens | M3620BC-12 (f3.6 F2.0) |
| Cable Length | 1.0m (Max. 3.0m) |
| Weight | Approx. 18g |
| Accessories | USB cable (USB2.0 Standard-A), M12 Lens Fixing Ring |
| Recommended System Specifications | CPU - Intel® Core TM i Series RAM - 2GB or larger Others - USB2.0 Port, 1920x1080 or better resolution display |
| Operation Confirmed OS | Windows 10 32bit/64bit, Windows 11, Android 4.0 or later |
