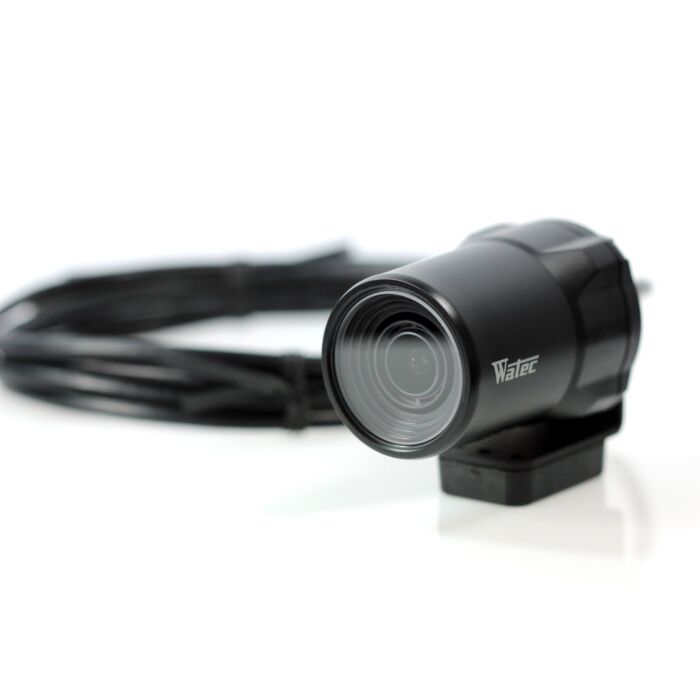

Watec WAT-07U2D 1/2.8" High Sensitivity USB2.0 Full HD Wearable B&W Camera
Added B&W version to the USB camera series
$1,362.00
Please call for pricing
SKU
Watec WAT-07U2D
Watec WAT-07U2D camera directly import the captured image to your PC and compact design specializes in the embedded application.
Features:
- Min. illumination 0.004 Ix F2.0 (AGC ON=36dB, Shutter=OFF)
- 0.001 Ix F2.0 (AGC ON=36dB, Shutter=l/7.5 sec.)
- Full HD (Max. frame rate 30fps)
- Enable the live video transmission via the smartphone or tablet by its Wi-Fi or 4G/3G
- Water resistant built for outdoor use (IPX7 compliance)
| Sensor type | 1/2.8 inch CMOS image sensor |
| Number of effective pixels | 1945(H) × 1097(V) |
| Unit cell size | 2.9μm(H) × 2.9μm(V) |
| Imaging System | - |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Output Size | 1920x1080, 1280x720, 640x480, 320x240 |
| Max. Frame Rate | 30 fps |
| Video Compression | MJPG, YUY2 |
| Video Output | USB Video Class (Compatible) |
| Resolution | More than 800lVL (Center) |
| Minimum illumination | 0.004 Ix F2.0 (AGC ON=36dB, Shutter=OFF) 0.001 Ix F2.0 (AGC ON=36dB, Shutter=l/7.5 sec.) |
| S/N | - |
| Function Settings | Camera Viewer |
| AE Mode | Fixed - 1/15, 1/7.5, 1/4 sec. Fixed -1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 sec. EI - 1/30 - 1/8000 sec. EI - 1/7. 5 - 1/8000 sec. |
| White Balance | - |
| AGC | ON - 0 - 36dB OFF - |
| MGC | 0 - 72dB (1dB step) |
| Gamma Characteristics | γ≒USER (Level Adjustable) |
| Noise Reduction | - |
| Wide Dynamic Range | - |
| Lens Iris | - |
| Back Light Compensation | BLC |
| White Blemish Correction | - |
| Sharpness | Level Adjustable |
| Defog | - |
| Digital Zoom | xl, xl.38, x2.25 *1 / xl, xl.2, xl.S *2 |
| Privacy Mask | - |
| Mirror Image | - |
| Freeze | - |
| Motion Detection | - |
| Neg. Image | - |
| Interface | USB (High Speed) |
| Power Supply | USB +5V |
| Power Consumption | 0.65W (130mA) |
| Operating Temperature | -10℃ ～ +50℃ |
| Storage Temperature | -30℃ ～ +70℃ |
| Operating/Storage Humidity | 95% RH or less (Without condensation) |
| Standard Lens | M3620BC· 12 (f3.6 F2.0) |
| Cable Length | 1.2m (Max.3.0m) |
| Weight | Approx. 85g |
| Accessories | - |
| Recommended System Specifications | CPU - Intel® Core TM i Series RAM - 2GB or larger Others - USB2.0 Port, 1920×1080 or better resolution display |
| Operation Confirmed OS | Windows 10 32bit/64bit, Android 4.0 or newer |
