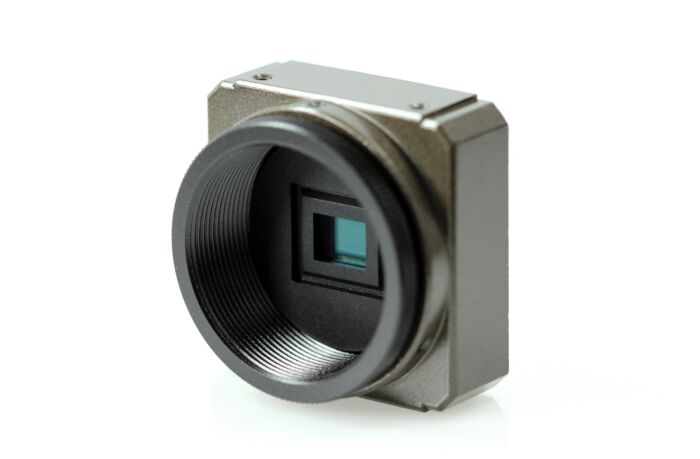

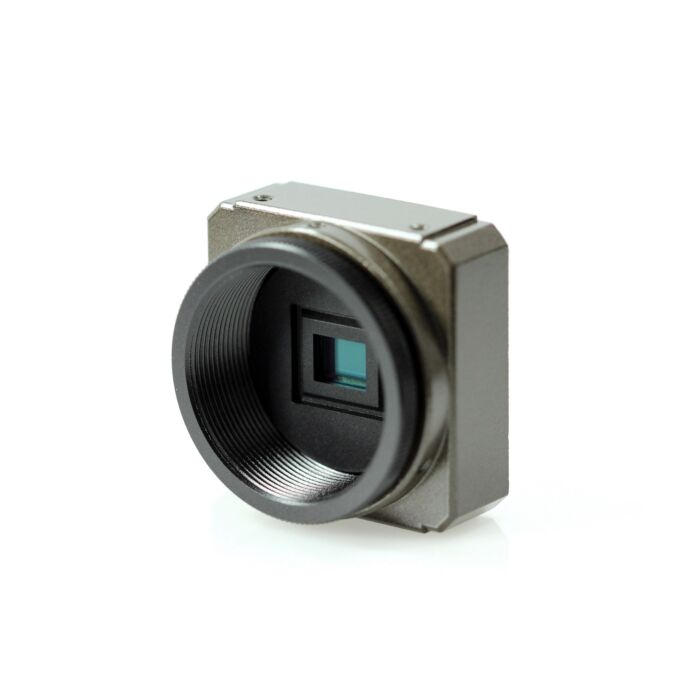

Watec WAT-06U2 1/2.8” Full HD Compact High Sensitivity USB2.0 CMOS Color Camera
*Please note tariff fee is included in price*
The WAT-06U2 USB color camera features a 1/2.8" CMOS sensor with 1080p HD output and ultra-low-light performance down to 0.07 lux, ideal for medical, scientific, and embedded vision applications.The Watec WAT-06U2 is a compact, high-sensitivity USB color camera engineered for reliable imaging in semi-low to low-light environments. Built around a 1/2.8" CMOS sensor, it delivers sharp Full HD (1920×1080) output with excellent detail and color accuracy. With ultra-low-light performance down to 0.07 lux (F2.0), the WAT-06U2 maintains usable image quality where many compact cameras struggle.
Designed for easy integration, its USB interface simplifies system setup for applications including medical imaging, scientific research, astronomy, and embedded vision systems. The WAT-06U2 combines strong low-light capability, compact form factor, and dependable performance in a versatile HD camera solution.
Features:
- 1/2.8" CMOS sensor for sharp HD imaging
- 1920×1080 (1080p) resolution output
- Ultra-low-light sensitivity to 0.07 lux (F2.0)
- USB interface for simple integration
- Compact design for embedded and space-limited systems
Applications:
- High-sensitivity 1/2.8" CMOS sensor optimized for semi-low and low-light environments
- Full HD 1080p resolution (1920×1080) for detailed image capture
- Minimum illumination of 0.3 lux (F2.0), extended to 0.07 lux with shutter control
- USB connectivity enables plug-and-play integration with PCs and embedded platforms
- Consistent color reproduction for medical, scientific, and inspection applications
- Compact, lightweight form factor for easy system integration
- Reliable performance in both controlled lighting and challenging low-light conditions
- Suitable for astronomy, microscopy, surveillance, and machine vision systems
| Sensor type | 1/2.8 inch CMOS image sensor |
| Number of effective pixels | 1945(H) × 1097(V) |
| Unit cell size | 2.9μm(H) × 2.9μm(V) |
| Imaging System | RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Output Size | 1920x1080, 1280x720, 640x480, 320x240 |
| Max. Frame Rate | 30 fps |
| Video Compression | MJPG, YUY2 |
| Video Output | USB Video Class (Compatible) |
| Resolution | More than 900TVL (Center) |
| Minimum illumination | 0.1 Ix Fl.2 (AGC ON=36dB, Shutter=OFF) 0.025 Ix Fl.2 (AGC ON=36dB, Shutter=l/7.5 sec.) |
| S/N | - |
| Function Settings | Camera Viewer |
| AE Mode | Fixed - 1/15, 1/7.5, 1/4 sec. Fixed -1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 sec. EI - 1/30 - 1/8000 sec. EI - 1/7. 5 - 1/8000 sec. |
| White Balance | ATW, MWB |
| AGC | ON - 0 - 36dB OFF - |
| MGC | 0 - 72dB (1dB step) |
| Gamma Characteristics | γ≒USER (Level Adjustable) |
| Noise Reduction | - |
| Wide Dynamic Range | - |
| Lens Iris | - |
| Back Light Compensation | BLC |
| White Blemish Correction | - |
| Sharpness | Level Adjustable |
| Defog | - |
| Digital Zoom | xl, xl.38, x2.25 *1 / xl, xl.2, xl.S *2 |
| Privacy Mask | - |
| Mirror Image | - |
| Freeze | - |
| Motion Detection | - |
| Neg. Image | - |
| Interface | USB (High speed), 2P connector (Snap shot) |
| Power Supply | USB +5V |
| Power Consumption | 0.65W (130mA) |
| Operating Temperature | -10℃ ～ +50℃ |
| Storage Temperature | -30℃ ～ +70℃ |
| Operating/Storage Humidity | 95% RH or less (Without condensation) |
| Lens Mount | CS mount (Back focus adjustable) |
| Cable Length | Shorter than 3.0m recommended |
| Weight | Approx. 35g |
| Accessories | Hex wrench, Camera bracket, EX cable, USB cable |
| Recommended System Specifications | CPU - Intel® Core TM i Series RAM - 2GB or larger Others - USB2.0 Port, 1920×1080 or better resolution display |
| Operation Confirmed OS | Windows 10 32bit/64bit |
