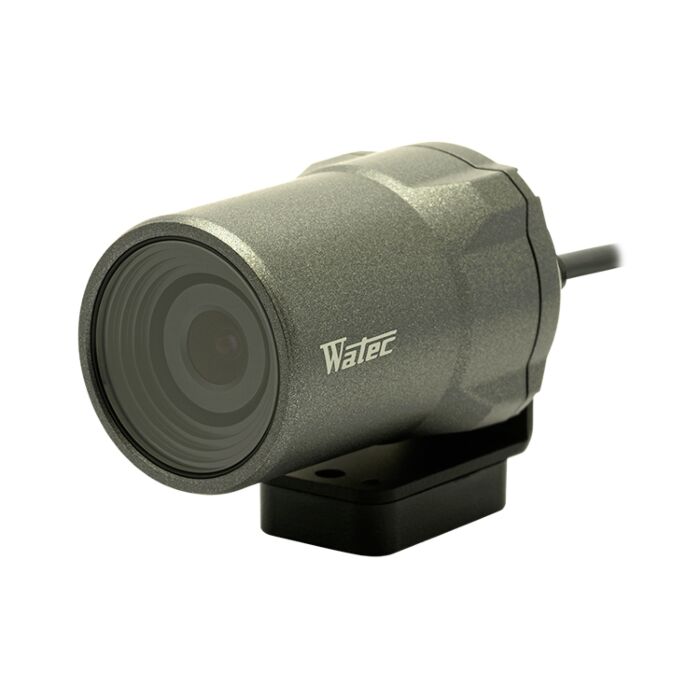

Watec WAT-03U2D 1/3" Compact HD Water-Resistant USB2.0 Color Camera
*Please note tariff fee is included in price*
The Watec WAT-03U2D is a high-sensitivity, water-resistant compact USB camera designed for industrial, scientific, and embedded imaging applications. It delivers low-noise, high-quality video performance even in low-light environments, powered entirely through USB.
The Watec WAT-03U2D is a precision-engineered compact color USB 2.0 camera built for seamless integration into industrial and embedded imaging systems. Equipped with a 1/3-inch 1.3-megapixel CMOS sensor, it delivers exceptional low-light performance—down to 0.02 lx at F1.2—making it ideal for precision imaging where clarity and reliability are critical. Featuring a progressive scan system and support for UVC (USB Video Class), setup is plug-and-play with no external power requirements, ensuring flexible deployment in tight or mobile environments.
Engineered for industrial durability, the WAT03U2D operates reliably in challenging conditions, thanks to its water-resistant housing and lightweight 35g design. Offering smooth frame rates up to 30fps (HD) and 60fps (VGA), this industrial color camera ensures high performance in applications ranging from automated inspection to robotics vision systems. Backed by Watec’s legacy of optical engineering excellence, the WAT-03U2D provides trusted reliability for precision imaging needs worldwide.
Features:
- 1/3-inch 1.3MP CMOS sensor (RGB Bayer filter)
- High sensitivity: 0.02 lx at F1.2, AGC ON (42 dB)
- Frame rate: 30 fps (HD), 60 fps (VGA)
- Progressive scan system for sharp motion imaging
- USB Video Class & USB bus-powered plug-and-play interface
- Compact and lightweight water-resistant housing
- Adjustable gamma and sharpness control
- Wide operating temperature range (-10°C to +50°C)
Applications:
- Industrial Inspection
- Quality Control
- Robotics Guidance
- PCB Inspection
- Pharmaceutical Inspection
| Sensor type | 1/3 inch CMOS image sensor |
| Number of effective pixels | 1305(H) × 977(V) |
| Unit cell size | 3.75μm(H) × 3.75μm(V) |
| Imaging System | RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Output Size | 1280×960, 1280×720, 640×480, 320×240 |
| Max. Frame Rate | 60 fps |
| Video Compression | MJPG, YUY2 |
| Video Output | USB Video Class (Compatible) |
| Minimum illumination | 0.02 lx F1.2 (AGC ON=42dB, Shutter=OFF) 0.005 lx F1.2 (AGC ON=42dB, Shutter=1/7.5 sec.) |
| S/N | - |
| Function Settings | Camera Viewer |
| AE Mode | Fixed - 1/15, 1/7.5, 1/4, 1/2, 1, 2 sec. EI - 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 sec. |
| White Balance | ATW, MWB |
| AGC | ON - 0 - 42dB OFF - |
| MGC | 0 - 72dB (1dB step) |
| Gamma Characteristics | γ≒USER (Level Adjustable) |
| Noise Reduction | - |
| Wide Dynamic Range | - |
| Lens Iris | - |
| Back Light Compensation | BLC |
| White Blemish Correction | - |
| Sharpness | Level Adjustable |
| Defog | - |
| Digital Zoom | - |
| Privacy Mask | - |
| Mirror Image | - |
| Freeze | - |
| Motion Detection | - |
| Neg. Image | - |
| Interface | USB (High Speed), 2P Connector (Snap Shot) |
| Power Supply | USB +5V |
| Power Consumption | 0.75W (150mA) |
| Operating Temperature | -10℃ ～ +50℃ |
| Storage Temperature | -30℃ ～ +70℃ |
| Operating/Storage Humidity | 95% RH or less (Without condensation) |
| Lens Mount | CS mount (Back focus adjustable) |
| Cable Length | Shorter than 3.0m recommended |
| Weight | Approx. 35g |
| Accessories | Hex. Wrench, Camera bracket, EX cable, USB cable |
| Min. System Requirements | CPU - 800MHz or faster RAM - 512MB or larger Others - USB2.0 Port |
| Recommended System Specifications | CPU - Intel® Core TM i Series RAM - 2GB or larger Others - USB2.0 Port, 1920×1080 or better resolution display |
| Operation Confirmed OS | Windows 7 32bit/64bit, Windows 8 32bit/64bit, Windows 8.1 32bit/64bit, Windows 10 32bit/64bit |
