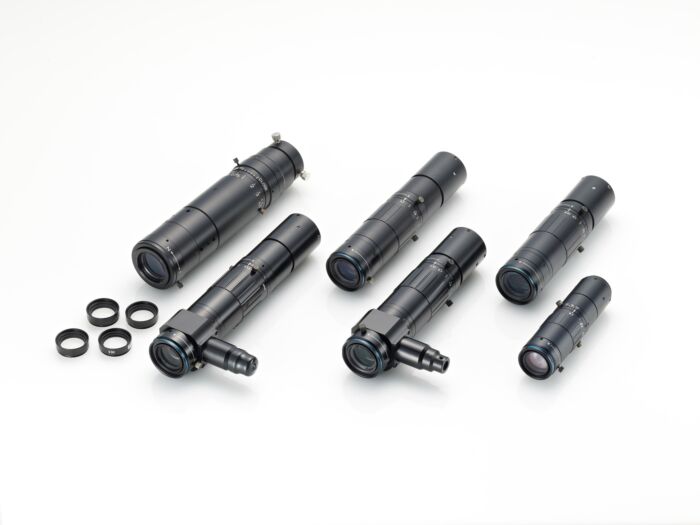

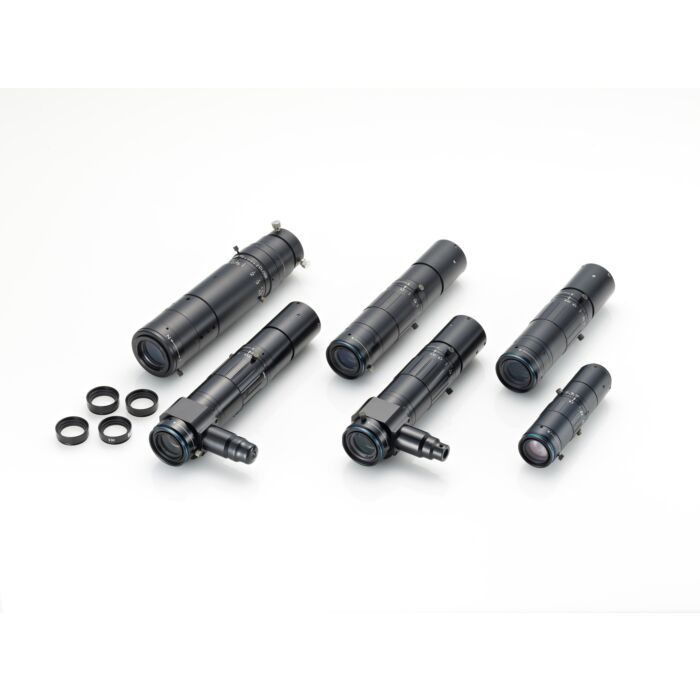

VS Technology VSZ-M0108S Macro Zoom Lenses
Enhance Your Industrial Imaging with VS Technology VSZ-M0108S Macro Zoom Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VSZ-M0108S Macro Zoom Lenses, designed to meet the rigorous demands of industrial and machine vision applications. These lenses are engineered to provide superior imaging performance with a magnification range of 0.1x to 0.8x and a working distance (WD) of 212mm. The compact design ensures ease of integration into various setups, while the long working distance allows for flexible positioning without compromising image quality.
The VSZ-M0108S features a 1:8 zoom ratio and co-axial lighting, making it ideal for detailed inspections and precise measurements. Its compatibility with 1/2" to 2/3" sensors and C-Mount ensures seamless adaptability across different systems. The adjustable zoom and variable magnification capabilities cater to diverse industrial needs, from electronic component inspection to material analysis.
With its robust construction and high-precision optics, the VS Technology VSZM0108S Macro Zoom Lens is perfect for applications requiring consistent and reliable imaging performance. Whether used in automated inspection systems, quality control, or research and development, this lens offers unparalleled versatility and efficiency. Experience enhanced imaging solutions with the VSZ-M0108S, exclusively available at Aegis Electronic Group Inc.
Features:
- Magnification range: 0.1x - 0.8x
- Working distance: 212mm
- Compact design
- 1:8 zoom ratio
- Co-axial lighting
- C-Mount compatibility
- Supports 1/2" to 2/3" sensors
- High-precision optics
- Adjustable zoom
- Robust construction
Applications:
- Electronic component inspection
- Material analysis
- Quality control
- Automated inspection systems
- Research and development
- Precision measurement
- Industrial imaging solutions
- Automated manufacturing processes
| Optical Mag. Range | x 0.1 ～ x 0.8 | ||
| Optical Mag. | x 0.1 x 0.4 x 0.8 | ||
| FOV (V x H) | 2/3" - N/A 1/2" - 48.0 x 64.0 mm 12.0 x 16.0 mm 6.0 x 8.0 mm 1/3" - 36.0 x 48.0 mm 9.0 x 12.0 mm 4.5 x 6.0 mm | ||
| WD | 213 mm ± 6 | ||
| O/I (Object & Imager distance) | 340.9 mm | ||
| Working F/# *Value at Iris open | 7.8 7.8 8.8 | ||
| NA | 0.006 0.026 0.045 | ||
| DOF at PCoC φ0.04mm | 62.4 mm 3.9 mm 1.1 mm | ||
| TV Distortion (Super 35mm) | -0.16 % 0.03% 0.05% | ||
| Relative Illuminance (Y=17.6) | 80% 82% 73% | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size | 1/2" | ||
| Co-Axial Prism | - | ||
| Filter Thread | M 27 P= 0.5 | ||
| Weight (approx.) | 134 g | ||
| Dimension | Ø 32 (max.) x L = 110.4 mm | ||
