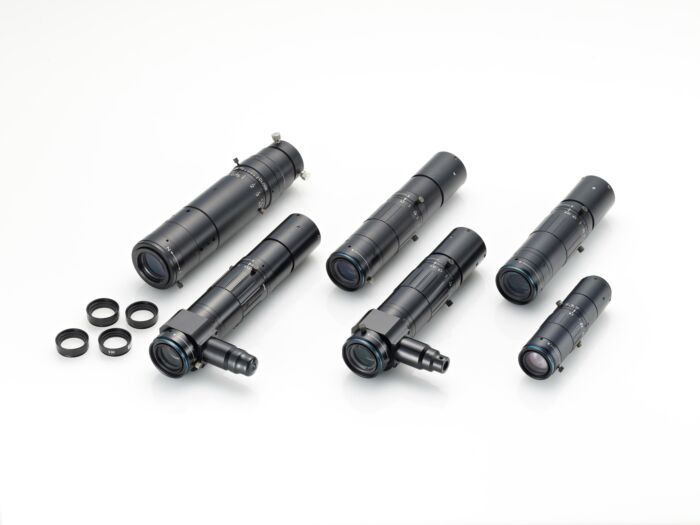

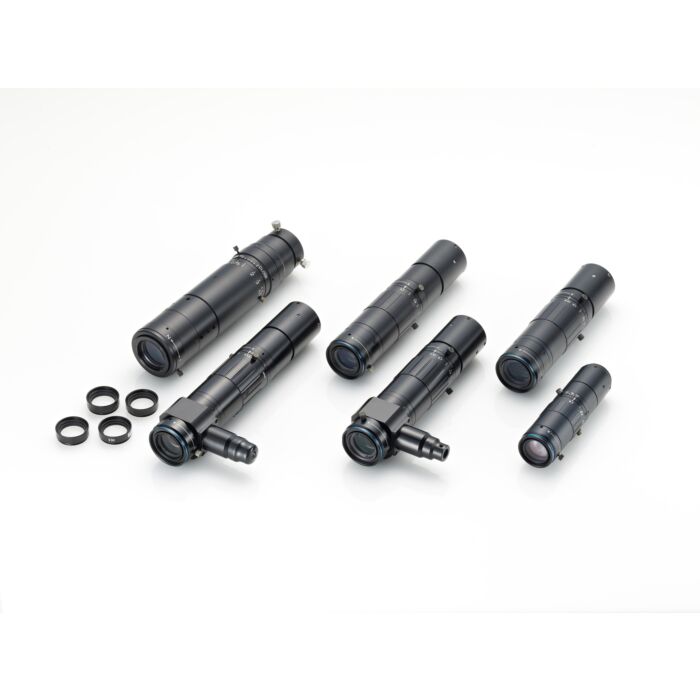

VS Technology VSZ-10100COL Macro Zoom Lenses
Enhance Precision with VS Technology VSZ-10100COL Macro Zoom Lenses
VS Technology’s VSZ-10100COL Macro Zoom Lens is a state-of-the-art optical solution tailored for high precision in industrial and machine vision applications. Renowned for its compact design and impressive versatility, this lens offers a magnification range from 0.1x to 10.0x, ensuring it meets a variety of inspection and imaging requirements. The long working distance of 95mm to 213mm allows users to maintain a consistent setup while adjusting magnification, thus increasing efficiency and reducing setup times.
The co-axial lighting feature enhances image clarity by providing even illumination, crucial for detailed inspections. This lens supports 1/2" to 2/3" sensors, making it adaptable to various imaging systems. Its C-Mount compatibility further ensures easy integration with existing equipment.
Designed with industrial use in mind, the VSZ-10100COL excels in environments requiring precise, repeatable measurements and high-quality imaging. Applications benefiting from this lens include semiconductor inspection, electronics manufacturing, quality control, and research and development. By choosing the VSZ-10100COL, customers invest in reliability, superior image quality, and flexibility, all critical for staying competitive in the fast-paced world of industrial automation and machine vision.
Features:
- Magnification range: 0.1x - 10.0x
- Working distance: 95mm - 213mm
- Co-axial lighting for enhanced clarity
- Compact design
- Supports 1/2" to 2/3" sensors
- C-Mount compatibility
- Zoom ratio of 1:10
Applications:
- Semiconductor inspection
- Electronics manufacturing
- Quality control
- Research and development
- Precision measurement systems
| Optical Mag. Range | x 1.0 ～ x 10.0 | ||
| Optical Mag. | x 1.0 x 4.0 x 10.0 | ||
| FOV (V x H) | 2/3" - 7.1 x 8.4 mm 1.8 x 2.1 mm 0.7 x 0.8 mm 1/2" - 4.8 x 6.4 mm 1.2 x 1.6 mm 0.5 x 0.6 mm 1/3" - 3.6 x 4.8 mm 0.9 x 1.2 mm 0.4 x 0.5 mm |
||
| WD | 97.0 mm | ||
| O/I (Object & Imager distance) | 408.0 mm | ||
| Working F/# *Value at Iris open | 13.3 15.4 36.7 | ||
| NA | 0.038 0.130 0.136 | ||
| DOF at PCoC φ0.04mm | 1.1 mm 0.08 mm 0.03 mm | ||
| TV Distortion (Super 35mm) | 0.16 % -0.01% 0.02% | ||
| Relative Illuminance (Y=17.6) | 86% 67% 100% | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size | 2/3" | ||
| Co-Axial Prism | Built-In | ||
| Filter Thread | M 43 P= 0.75 | ||
| Weight (approx.) | 1210 g | ||
| Dimension | Ø 46 (max.) x L = 293.5 mm | ||
