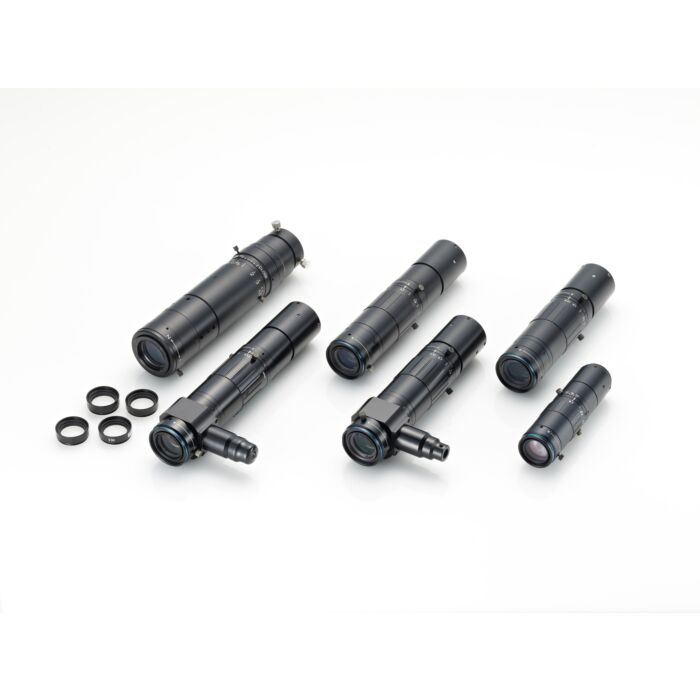

VS Technology VSZ-10100 Macro Zoom Lenses
Unlock Precision with VS Technology VSZ-10100 Macro Zoom Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VSZ-10100 Macro Zoom Lenses, designed for excellence in industrial and machine vision applications. These lenses are renowned for their compact design and versatility, featuring a magnification range from 0.1x to 10.0x. With a working distance (WD) ranging from 95mm to 213mm, they provide the flexibility needed for various inspection tasks without changing the working distance. The 1:10 zoom ratio ensures precise and detailed imaging, making them ideal for tasks that require variable magnification.
VS Technology lenses support 1/2" to 2/3" sensors, ensuring compatibility with a wide range of cameras. The co-axial lighting integration enhances image clarity by providing uniform illumination, critical for high-precision inspection and measurement. Their robust design and superior optics make these lenses perfect for applications in electronics inspection, semiconductor manufacturing, and quality control processes.
Customers can benefit from the detailed Field of View (FOV) and extension tube length specifications provided in the comprehensive view table, ensuring they select the perfect configuration for their needs. Elevate your imaging capabilities with VS Technology VSZ-10100 Macro Zoom Lenses, delivering unmatched precision and reliability for your most demanding projects.
Features:
- Magnification range: 0.1x - 10.0x
- Working distance: 95mm - 213mm
- Compact design
- 1:10 zoom ratio
- Supports 1/2" to 2/3" sensors
- Co-axial lighting integration
- C-Mount compatibility
- Detailed WD, FOV, and extension tube length specifications
Applications:
- Electronics inspection
- Semiconductor manufacturing
- Quality control processes
- Detailed imaging in industrial environments
- High-precision measurement tasks
| Optical Mag. Range | x 1.0 ～ x 10.0 | ||
| Optical Mag. | x 1.0 x 4.0 x 10.0 | ||
| FOV (V x H) | 2/3" - 7.1 x 8.4 mm 1.8 x 2.1 mm 0.7 x 0.8 mm 1/2" - 4.8 x 6.4 mm 1.2 x 1.6 mm 0.5 x 0.6 mm 1/3" - 3.6 x 4.8 mm 0.9 x 1.2 mm 0.4 x 0.5 mm |
||
| WD | 213 mm ± 6 | ||
| O/I (Object & Imager distance) | 363.2 mm | ||
| Working F/# *Value at Iris open | 23.2 24.5 26.0 | ||
| NA | 0.006 0.024 0.046 | ||
| DOF at PCoC φ0.04mm | 20.6 mm 1.4 mm 0.4 mm | ||
| TV Distortion (Super 35mm) | 0.02 % 0.05% 0.04% | ||
| Relative Illuminance (Y=17.6) | 99% 99% 99% | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size | 1/2" | ||
| Co-Axial Prism | - | ||
| Filter Thread | M 27 P= 0.5 | ||
| Weight (approx.) | 165 g | ||
| Dimension | Ø 32 (max.) x L = 132.7 mm | ||
