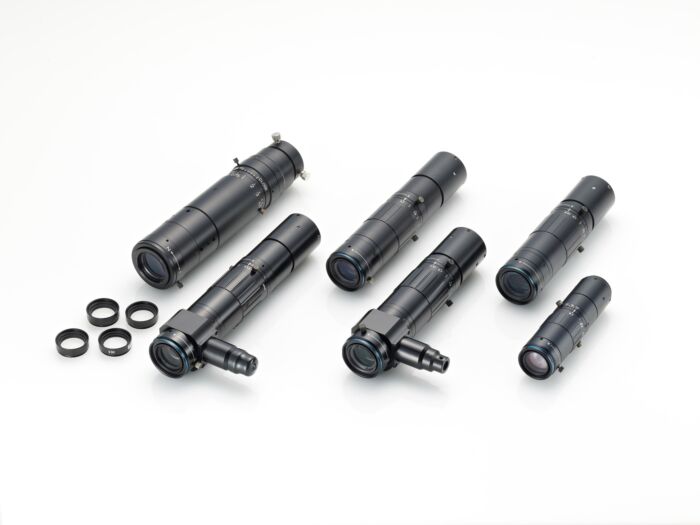

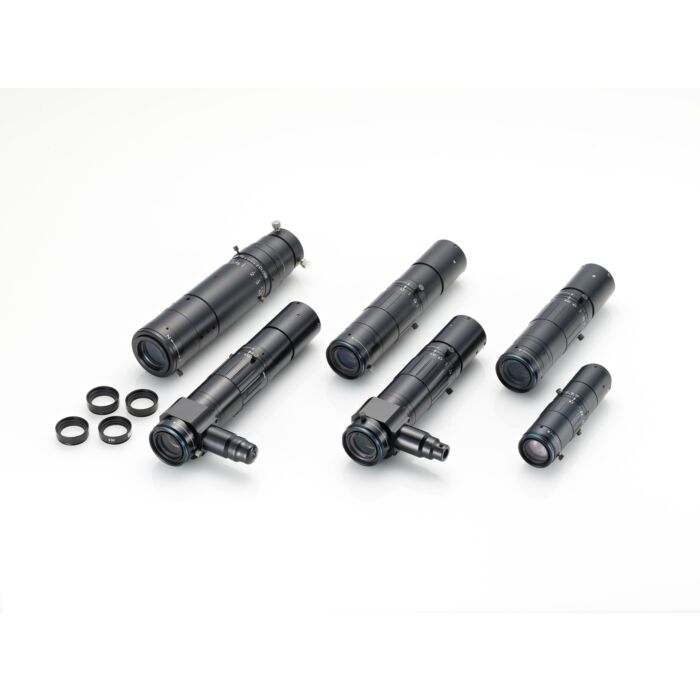

VS Technology VSZ-0745CO Macro Zoom Lenses
Unleash Precision with VS Technology VSZ-0745CO Macro Zoom Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VSZ-0745CO Macro Zoom Lenses, an epitome of innovation and precision in the realm of machine vision and industrial lenses. Designed to cater to a wide range of applications, these lenses feature a magnification range of 0.7x to 4.5x with a working distance (WD) of 100mm, making them ideal for variable magnification requirements. The VSZ series is known for its compact size, ensuring ease of integration into various setups without compromising on performance.
The lenses support 1/2" to 2/3" sensors and offer a zoom ratio of 1:6, making them versatile for diverse imaging needs. The inclusion of co-axial lighting enhances image clarity and precision, essential for intricate inspections and quality control processes. With a working distance range of 95mm to 213mm and magnification capabilities from 0.1x to 10.0x, these lenses are perfect for applications demanding high-resolution imagery and variable zoom.
Industries such as electronics, semiconductor inspection, biomedical imaging, and material science can greatly benefit from the advanced features of the VSZ0745CO Macro Zoom Lenses. Aegis Electronic Group Inc. ensures that each lens is engineered to deliver exceptional optical performance, contributing to enhanced productivity and accuracy in industrial and machine vision applications.
Features:
- Magnification range: 0.7x - 4.5x
- Working distance: 100mm
- Compact design
- Co-axial lighting
- C-Mount compatibility
- Supports 1/2" to 2/3" sensors
- Zoom ratio: 1:6
- Magnification range: 0.1x - 10.0x
- Working distance range: 95mm - 213mm
Applications:
- Electronics inspection
- Semiconductor inspection
- Biomedical imaging
- Material science analysis
- Quality control processes
- Precision measurement and inspection
- Surface defect detection
- Micro-assembly verification
| Optical Mag. Range | x 0.7 ～ x 4.5 | ||
| Optical Mag. | x 0.7 x 1.8 x 4.5 | ||
| FOV (V x H) | 2/3" - 10.1 x 12.0 mm 3.9 x 4.7 mm 1.6 x 1.9 mm 1/2" - 6.9 x 9.1 mm 2.7 x 3.6 mm 1.1 x 1.4 mm 1/3" - 5.1 x 6.9 mm 2.0 x 2.7 mm 0.8 x 1.1 mm | ||
| WD | 100.0 mm ± 3 | ||
| O/I (Object & Imager distance) | 313.6 mm | ||
| Working F/# *Value at Iris open | 10.3 13.8 29.0 | ||
| NA | 0.034 0.065 0.078 | ||
| DOF at PCoC φ0.04mm | 1.7 mm 0.3 mm 0.1 mm | ||
| TV Distortion (Super 35mm) | -0.03 % 0.09% 0.08% | ||
| Relative Illuminance (Y=17.6) | 71% 87% 99% | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size | 2/3" | ||
| Co-Axial Prism | Built-in | ||
| Weight (approx.) | 340 g | ||
| Dimension | Ø 44.5 (max.) x L = 196.1 mm | ||
