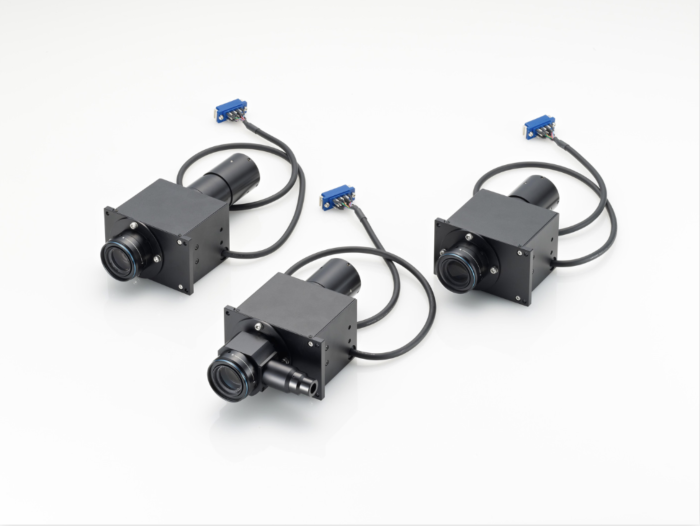

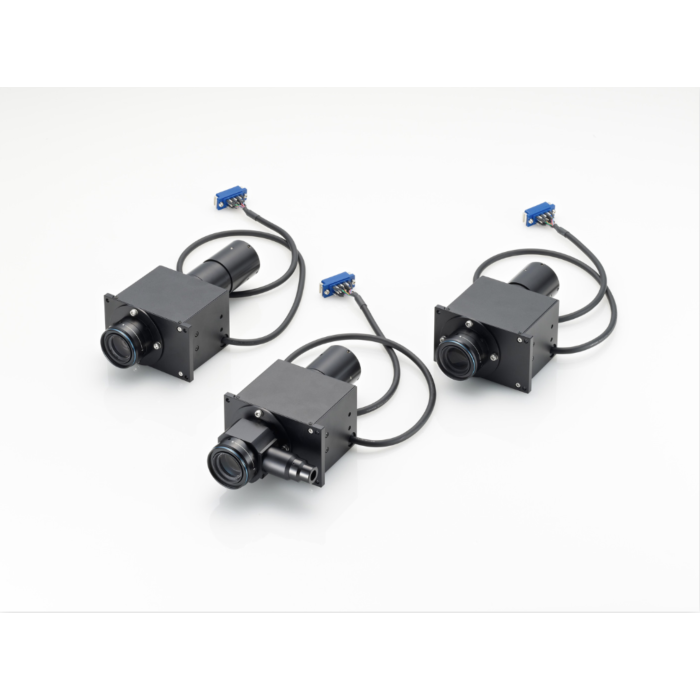

VS Technology VSZ-0745CO-MR Motorized Zoom Lens
Experience precision with the VS Technology VSZ-0745CO-MR Motorized Zoom Lens. Achieve unparalleled imaging clarity and flexibility in industrial applications. Elevate your vision with Aegis Electronic Group.
SKU
VSZ-0745CO-MR
Unveiling the Precision of VS Technology VSZ-0745CO-MR Motorized Zoom Lens
Delve into the advanced world of industrial imaging with the VS Technology VSZ-0745CO-MR Motorized Zoom Lens offered by Aegis Electronic Group. This C-Mount lens boasts a remarkable 1:6.5 zoom ratio, providing unparalleled flexibility in capturing precise images. Its long working distance of 100mm allows for versatile placement in various industrial and machine vision applications.
The lens features a ±3mm focus adjustment system, ensuring meticulous image clarity and sharpness. With a motorized zoom mechanism, users can effortlessly control and optimize the focal length to meet specific imaging requirements. The lens is designed to accommodate C-Mount, offering compatibility with a wide range of industrial cameras.
Features:
- 1:6.5 Zoom Ratio
- Long Working Distance (100mm)
- ±3mm Focus Adjustment
- Motorized Zoom Mechanism
- C-Mount Compatibility
Applications:
- Industrial Automation
- Machine Vision Systems
- Precision Imaging
- Optical Inspection
- Quality Control
| Optical Mag. Range | 0.7x ~ 4.5x | ||
| Optical Mag. | x 0.7 | x 1.8 | x 4.5 |
| FOV (V x H) | 2/3" - 10.1 x 12.0 | 3.9 x 4.7 | 1.6 x 1.9 1/2" - 6.9 x 9.1 | 2.7 x 3.6 | 1.1 x 1.4 1/3" - 5.1 x 6.9 | 2.0 x 2.7 | 0.8 x 1.1 |
||
| WD | 100.0 mm ± 3 | ||
| O/I (Object & Imager distance) | 313.6 mm | ||
| Working F/# *Value at Iris open | 10.3, 13.8, 29.0 | ||
| NA | 0.034, 0.065, 0.078 | ||
| DOF at PCoC Ø 0.04mm2.5 | 1.7 mm, 0.3 mm, 0.1 mm | ||
| TV Distortion (1/1.8") | -0.03% | 0.09% | 0.08% |
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Co-Axial Prism | Built-in | ||
| Weight (approx.) | 680 g | ||
| Dimension | 54 x 93 (max.) x L = 196.1 mm | ||
