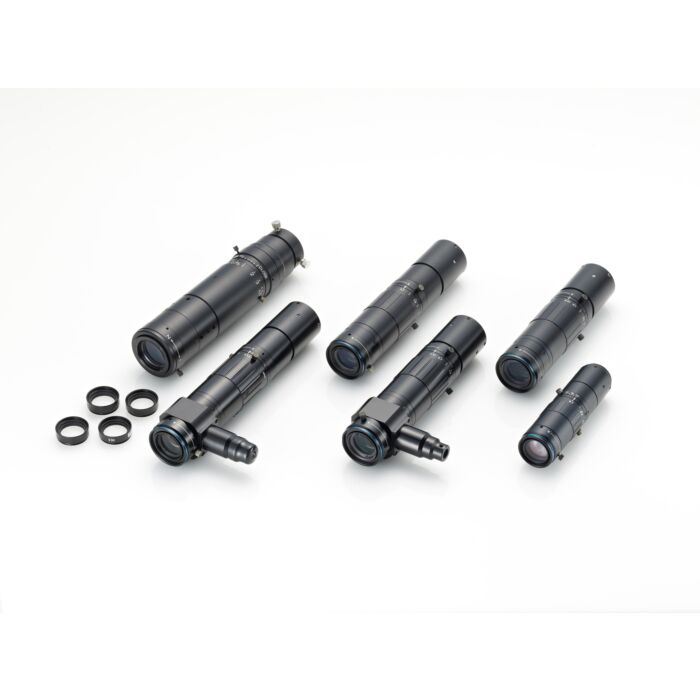

VS Technology VSZ-0745 Macro Zoom Lenses
Enhance Your Machine Vision Capabilities with VS Technology VSZ-0745 Macro Zoom Lenses
Aegis Electronic Group Inc. proudly offers the VS Technology VSZ-0745 Macro Zoom Lenses, specifically designed to meet the diverse needs of the industrial and machine vision sectors. These lenses feature a magnification range from 0.7x to 4.5x and a working distance (WD) of 100mm, making them ideal for applications requiring variable magnification without changing the working distance. With a compact design, these lenses support 1/2" to 2/3" sensors and provide excellent image quality across various magnifications.
The VSZ-0745 Macro Zoom Lenses are equipped with co-axial lighting and a C-mount, ensuring seamless integration with existing systems. Their zoom ratio of 1:6 allows for precise imaging, crucial for inspection and quality control applications. The wide magnification range from 0.1x to 10.0x and working distances between 95mm and 213mm make these lenses versatile for numerous industrial applications.
These lenses are perfect for industries requiring detailed imaging, such as electronics manufacturing, semiconductor inspection, and materials research. The ability to maintain a long working distance while adjusting magnification enhances efficiency and accuracy in critical tasks. Choose VS Technology VSZ-0745 Macro Zoom Lenses to elevate your machine vision systems and achieve unparalleled precision in your applications.
Features:
- Magnification: 0.7x - 4.5x
- Working Distance: 100mm
- Zoom Ratio: 1:6
- Co-axial lighting
- C-Mount
- Supports 1/2" to 2/3" sensors
- Compact design
- Variable zoom range: 0.1x - 10.0x
- Working distances: 95mm - 213mm
Applications:
- Electronics manufacturing inspection
- Semiconductor inspection
- Materials research
- Precision imaging tasks
- Quality control processes
- Industrial automation
- Machine vision systems
| Optical Mag. Range | x 0.7 ～ x 4.5 | ||
| Optical Mag. | x 0.7 x 1.8 x 4.5 | ||
| FOV (V x H) | 2/3" - 10.1 x 12.0 mm 3.9 x 4.7 mm 1.6 x 1.9 mm 1/2" - 6.9 x 9.1 mm 2.7 x 3.6 mm 1.1 x 1.4 mm 1/3" - 5.1 x 6.9 mm 2.0 x 2.7 mm 0.8 x 1.1 mm | ||
| WD | 100.0 mm ± 3 | ||
| O/I (Object & Imager distance) | 291.6 mm | ||
| Working F/# *Value at Iris open | 10.3 13.8 29.0 | ||
| NA | 0.034 0.065 0.078 | ||
| DOF at PCoC φ0.04mm | 1.7 mm 0.3 mm 0.1 mm | ||
| TV Distortion (Super 35mm) | -0.03 % 0.09% 0.08% | ||
| Relative Illuminance (Y=17.6) | 71% 87% 99% | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size | 2/3" | ||
| Co-Axial Prism | - | ||
| Weight (approx.) | 260 g | ||
| Dimension | Ø 38 (max.) x L = 174.1 mm | ||
