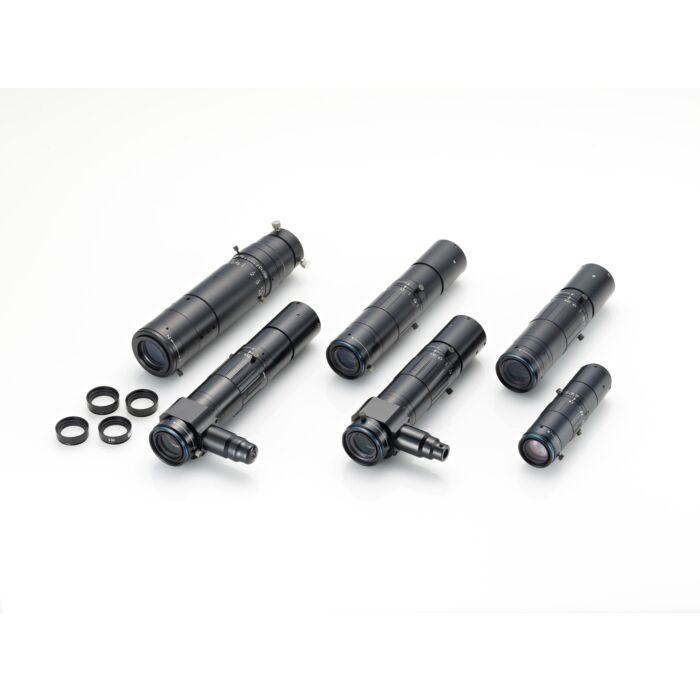

VS Technology VSZ-0530CO Macro Zoom Lenses
Unlock Precision with VS Technology VSZ-0530CO Macro Zoom Lenses
The VS Technology VSZ-0530CO Macro Zoom Lens, available from Aegis Electronic Group Inc., is a standout choice for professionals in the machine vision and industrial sectors. Designed with precision and versatility in mind, this lens offers a magnification range of 0.47x to 3.0x and supports 1/2" to 2/3" sensors, making it ideal for a wide array of imaging applications. Its compact design and long working distance (WD) of 95 to 213mm provide flexibility without compromising on performance. The C-Mount compatibility ensures seamless integration with various imaging systems.
One of the key features of the VSZ-0530CO is its co-axial lighting, which enhances image clarity and detail, crucial for tasks requiring high precision. This makes it perfect for applications such as quality control, automated inspection, and precision measurement. Industries such as electronics manufacturing, pharmaceutical production, and automotive assembly will particularly benefit from the enhanced imaging capabilities this lens provides.
With its variable zoom and magnification, the VSZ-0530CO allows for detailed examination at different scales, making it a versatile tool in any industrial setup. Trust Aegis Electronic Group Inc. to deliver top-tier optical solutions that elevate your machine vision systems.
Features:
- Magnification range: 0.47x - 3.0x
- Working distance: 95mm - 213mm
- Co-axial lighting for enhanced clarity
- Compact design
- Supports 1/2" to 2/3" sensors
- C-Mount compatibility
- Variable zoom and magnification
Applications:
- Quality control inspections
- Automated inspection systems
- Precision measurement tasks
- Electronics manufacturing
- Pharmaceutical production
- Automotive assembly
- High-resolution imaging tasks
| Optical Mag. Range | x 0.47 ～ x 3.0 | ||
| Optical Mag. | x 0.47 x 1.2 x 3.0 | ||
| FOV (V x H) | 2/3" - 11.5 x 15.1 mm 4.5 x 5.9 mm 1.8 x 2.4 mm 1/2" - 10.2 x 13.6 mm 4.0 x 5.3 mm 1.6 x 2.1 mm 1/3" - 7.7 x 10.2 mm 3.0 x 4.0 mm 1.2 x 1.6 mm | ||
| WD | 100.0 mm ± 3 | ||
| O/I (Object & Imager distance) | 289.8 mm | ||
| Working F/# *Value at Iris open | 6.9 9.3 19.8 | ||
| NA | 0.034 0.065 0.076 | ||
| DOF at PCoC φ0.04mm | 2.5 mm 0.5 mm 0.2 mm | ||
| TV Distortion (Super 35mm) | -0.09 % 0.12% 0.11% | ||
| Relative Illuminance (Y=17.6) | 51% 77% 99% | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size | 1/1.8" | ||
| Co-Axial Prism | Built-in | ||
| Weight (approx.) | 320 g | ||
| Dimension | Ø 44.5 (max.) x L = 172.3 mm | ||
