VS Technology VSZ-0530CO-MR Motorized Zoom Lens
Elevate your industrial imaging with the VSZ-0530CO-MR Motorized Zoom Lens. Precision optics, versatile zoom, and C-Mount design for unrivaled clarity. Explore now for cutting-edge machine vision.
SKU
VSZ-0530CO-MR
Revolutionizing Vision: Explore the VSZ-0530CO-MR Motorized Zoom Lens

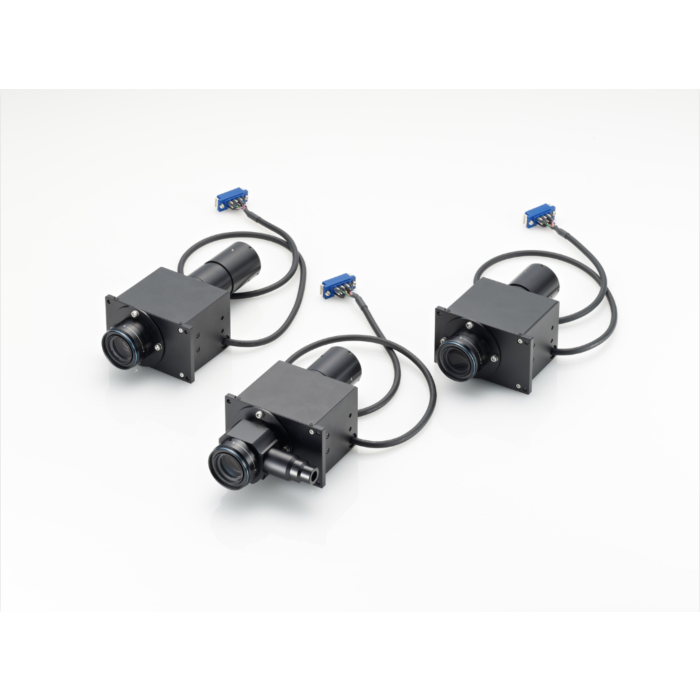

The VSZ-0530CO-MR Motorized Zoom Lens from VS Technology is a pinnacle in industrial imaging optics, catering specifically to machine vision applications. With a remarkable zoom ratio of 1:6.5 and a long working distance of 100mm, this lens offers unparalleled precision and clarity in capturing intricate details. Its ±3mm focus adjustment system ensures adaptability to varying imaging requirements, providing flexibility in industrial setups.
Designed with a C-Mount, this lens seamlessly integrates into industrial camera systems, offering ease of installation and compatibility. The motorized zoom feature enhances operational efficiency, allowing users to dynamically adjust focal lengths for optimal imaging.
Features:
- Motorized zoom with 1:6.5 ratio
- Long working distance of 100mm
- ±3mm focus adjustment system
- C-Mount compatibility
Applications:
| Optical Mag. Range | 0.47x ~ 3.0x | ||
| Optical Mag. | x 0.47 | x | x 3.0 |
| FOV (V x H) | 1/1.8" - 11.5 x 15.1 | 4.5 x 5.9 | 1.8 x 2.4 1/2" - 10.2 x 13.6 | 4.0 x 5.3 | 1.6 x 2.1 1/3" - 7.7 x 10.2 | 3.0 x 4.0 | 1.2 x 1.6 |
||
| WD | mm ± 3 | ||
| O/I (Object & Imager distance) | mm | ||
| Working F/# *Value at Iris open | 6.9, 9.3, 19.8 | ||
| NA | 0.034, 0.065, 0.076 | ||
| DOF at PCoC Ø 0.04mm2.5 | 2.5 mm, 0.5 mm, 0.2 mm | ||
| TV Distortion (1/1.8") | -0.09% | 0.12% | 0.11% |
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 1/1.8" | ||
| Co-Axial Prism | Built-in | ||
| Weight (approx.) | 660 g | ||
| Dimension | 54 x 93 (max.) x L = 172.3 | ||
