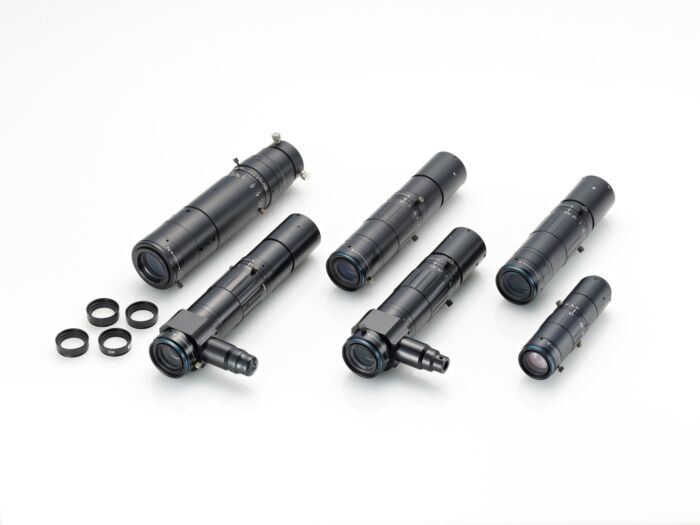

VS Technology VSZ-0530 Macro Zoom Lenses
Explore the Versatile VS Technology VSZ-0530 Macro Zoom Lenses

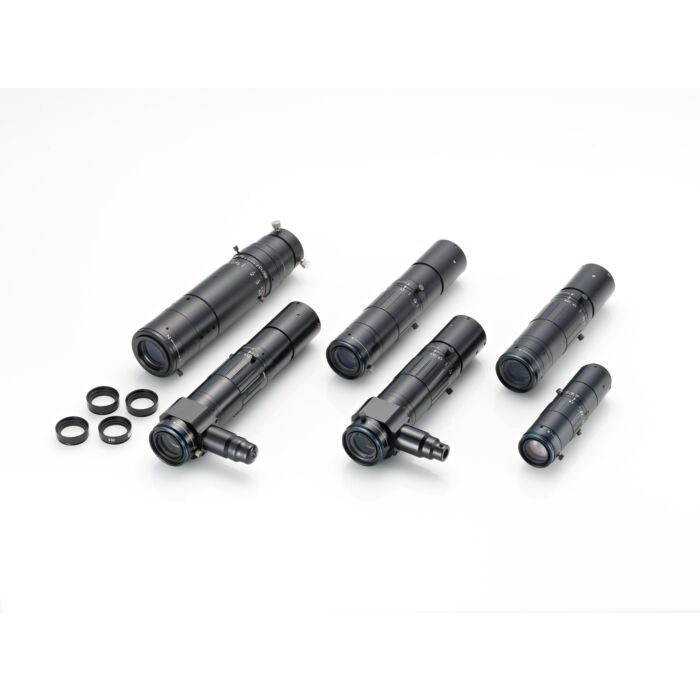

VS Technology's VSZ-0530 Macro Zoom Lenses are a pinnacle of precision and versatility in the field of industrial and machine vision applications. These lenses, part of the VSZ series, are designed with a compact form factor, making them ideal for installations where space is at a premium. With a magnification range of 0.47x to 3.0x and a working distance of 100mm, these lenses offer flexibility and high-resolution imaging without the need to change the working distance.
The lenses support sensors from 1/2" to 2/3", catering to a wide range of imaging needs. The VSZ-0530 features a 1:6 zoom ratio and variable zoom, providing users with the ability to adapt to different inspection requirements quickly. Additionally, the incorporation of co-axial lighting ensures uniform illumination, which is crucial for high-precision imaging tasks.
Applications that benefit from these lenses include quality control, automated inspection systems, and precision measurement in manufacturing environments. The robust design and exceptional optical performance make the VSZ-0530 an invaluable tool for engineers and technicians looking to enhance their imaging capabilities. With the VS Technology VSZ0530 Macro Zoom Lenses, you can achieve unparalleled clarity and detail, ensuring that your industrial and machine vision applications are executed with the highest level of accuracy.
Features:
- Compact and robust design
- Magnification range: 0.47x - 3.0x
- Working distance: 100mm
- Supports 1/2" to 2/3" sensors
- Zoom ratio: 1:6
- Variable zoom for flexible imaging
- Co-axial lighting for uniform illumination
- C-mount compatibility
Applications:
- Quality control inspections
- Automated inspection systems
- Precision measurement
- Manufacturing process monitoring
- High-resolution imaging tasks
- Detailed component analysis
- Scientific research and development
| Optical Mag. Range | x 0.47 ～ x 3.0 | ||
| Optical Mag. | x 0.47 x 1.2 x 3.0 | ||
| FOV (V x H) | 2/3" - 11.5 x 15.1 mm 4.5 x 5.9 mm 1.8 x 2.4 mm 1/2" - 10.2 x 13.6 mm 4.0 x 5.3 mm 1.6 x 2.1 mm 1/3" - 7.7 x 10.2 mm 3.0 x 4.0 mm 1.2 x 1.6 mm | ||
| WD | 100.0 mm ± 3 | ||
| O/I (Object & Imager distance) | 267.8 mm | ||
| Working F/# *Value at Iris open | 6.9 9.3 19.8 | ||
| NA | 0.034 0.065 0.076 | ||
| DOF at PCoC φ0.04mm | 2.5 mm 0.5 mm 0.2 mm | ||
| TV Distortion (Super 35mm) | -0.09 % 0.12% 0.11% | ||
| Relative Illuminance (Y=17.6) | 51% 77% 99% | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size | 1/1.8" | ||
| Co-Axial Prism | - | ||
| Weight (approx.) | 230 g | ||
| Dimension | Ø 38 (max.) x L = 150.3 mm | ||
