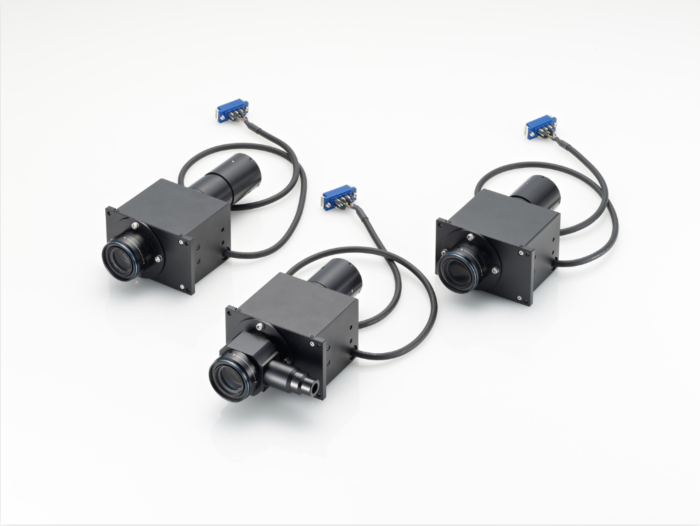

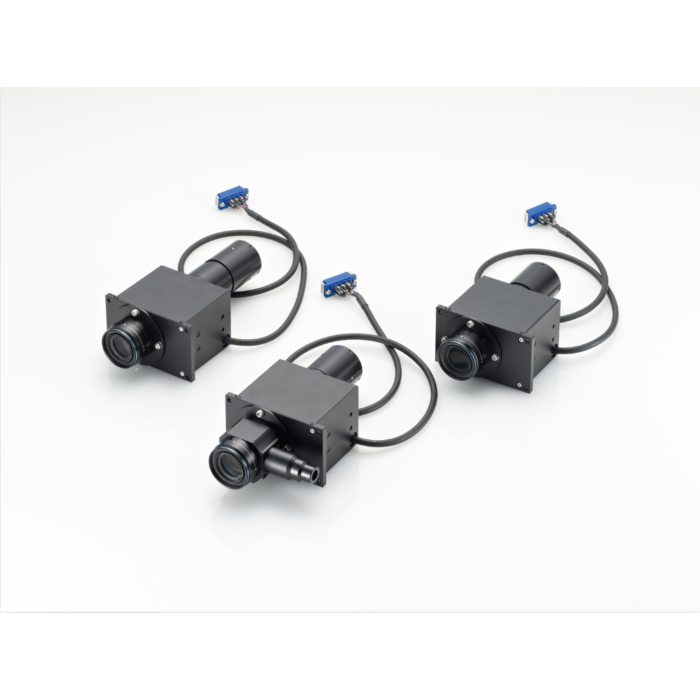

VS Technology VSZ-0530-MR Motorized Zoom Lens
SKU
VSZ-0530-MR
Quick Overview
Experience unrivaled precision in industrial imaging with the VSZ-0530-MR Motorized Zoom Lens. Achieve optimal focus and clarity for your machine vision applications. Explore the future of industrial optics today.
Unlock Precision Vision with VSZ-0530-MR Motorized Zoom Lens
Enhance your industrial and machine vision applications with the VS Technology VSZ-0530-MR Motorized Zoom Lens. This cutting-edge lens is designed for precision and versatility, featuring a remarkable zoom ratio of 1:6.5 and a long working distance of 100mm. The motorized zoom functionality allows seamless adjustments, ensuring optimal focus in diverse imaging scenarios.
The VSZ-0530-MR incorporates a ±3mm focus adjustment system, providing unprecedented control over the focal point. Its C-Mount compatibility makes it adaptable to various camera setups, enhancing flexibility in deployment. This lens excels in automation and industrial inspection, offering high-performance vision solutions for demanding applications.
Features:
- Motorized zoom with 1:6.5 ratio
- Long working distance (100mm)
- ±3mm focus adjustment system
- C-Mount compatibility
- Precision optics for high-performance vision
Applications:
- Industrial automation
- Machine vision systems
- Quality inspection
- Robotics vision
- Optical measurement tasks
| Optical Mag. Range | 0.47x ~ 3.0x | ||
| Optical Mag. | x 0.47 | x 1.2 | x 3.0 |
| FOV (V x H) | 1/1.8" - 11.5 x 15.1 | 4.5 x 5.9 | 1.8 x 2.4 1/2" - 10.2 x 13.6 | 4.0 x 5.3 | 1.6 x 2.1 1/3" - 7.7 x 10.2 | 3.0 x 4.0 | 1.2 x 1.6 | ||
| WD | 100.0 mm ± 3 | ||
| O/I (Object & Imager distance) | 267.8 mm | ||
| Working F/# *Value at Iris open | 6.9, 9.3, 19.8 | ||
| NA | 0.034, 0.065, 0.076 | ||
| DOF at PCoC Ø 0.04mm2.5 | 2.5 mm, 0.5 mm, 0.2 mm | ||
| TV Distortion (1/1.8") | -0.09% | 0.12% | 0.11% |
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 1/1.8" | ||
| Co-Axial Prism | Built-in | ||
| Weight (approx.) | 560 g | ||
| Dimension | 54 x 93 (max.) x L = 150.3 | ||
