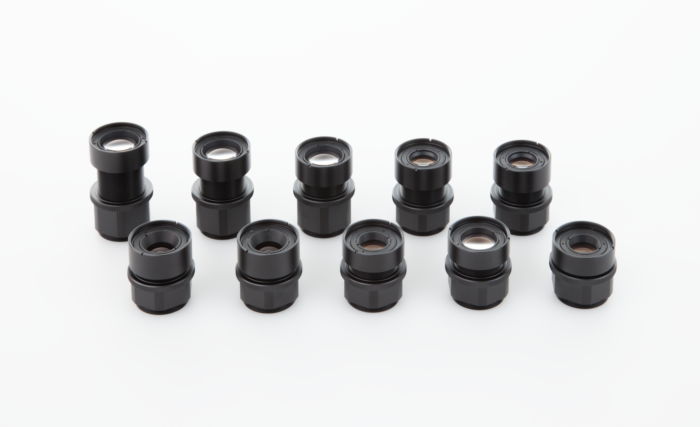

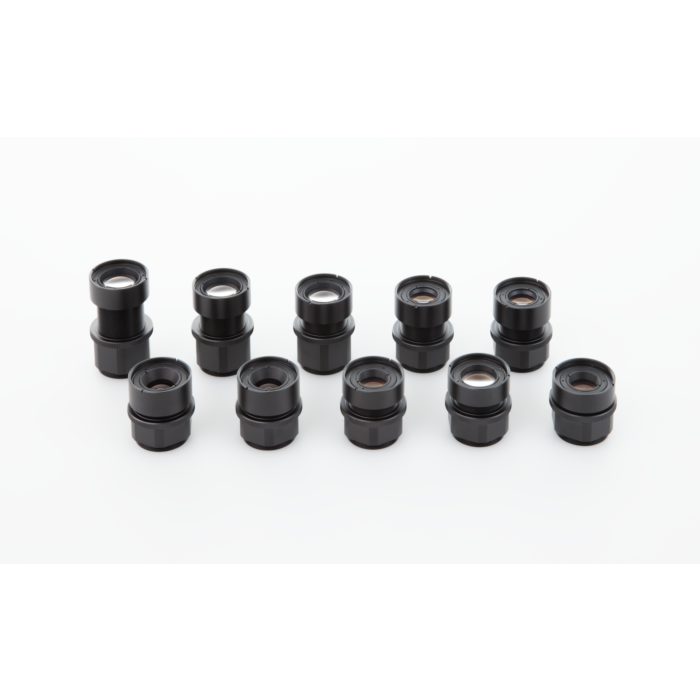

VS Technology VS-MCA75 Vibration Resistant Distortionless Macro Lens
Precision in Every Detail: VS-MCA75 Vibration Resistant Macro Lens
Unleash the power of imaging precision with the VS Technology VS-MCA75 Vibration Resistant Distortionless Macro Lens Series, a pinnacle in the industrial camera lens domain. This lens series boasts a focal range from 4mm to 75mm, offering versatility for a range of applications. The torque body design facilitates easy mounting control, ensuring seamless integration into any vision system while optimizing limited spaces.
Engineered for rugged environments, these lenses are vibration-resistant, providing stability for demanding industrial settings. The fixed iris enhances image quality, making it an ideal choice for machine vision applications where accuracy is paramount. The C-Mount compatibility further extends its flexibility in various setups.
Whether used for quality control, inspection, or automation, the VS-MCA75 series elevates industrial imaging solutions to new heights. Experience distortionless optics and high resolution, ensuring unparalleled clarity in every detail. This lens series is not just a component; it's a technological advancement, setting a new standard for precision in industrial and machine vision applications.
Features:
- Focal Range: 4mm - 75mm
- Torque Body for Easy Mounting
- Vibration Resistant and Ruggedized
- Fixed Iris for Enhanced Image Quality
- C-Mount Compatibility
Applications:
| Focal Length | 75mm | ||
| Maximum Aperture Ratio | 1: 3.8 | ||
| Optical Mag. Range | 0.14x ~ 0.62x | ||
| Optical Mag. | x 0.14 | x 0.4 | x 0.62 |
| FOV (V x H) | 2/3" - 50.7 x 60.0 | 178 x 21.0 | 11.5 x 13.6 1/2" - 34.3 x 45.7 | 12.0 x 16.0 | 7.7 x 10.3 1/3" - 25.7 x 34.3 | 9.0 x 12.0 | 5.8 x 7.7 |
||
| WD | 562.9 mm | 219.5 mm | 153.8 mm |
| O/I (Object & Imager distance) | 650.4 mm | 326.2 mm | 276.8 mm |
| Aperture | 3.8, 5.6, 8, 3.8, 5.6, 8, 3.8, 5.6, 8 | ||
| Working F/# *Value at Iris open | 4.1, 7.0, 10.1, 4.8, 9.7, 13.9, 6.2, 12.0, 17.2 | ||
| TV Distortion (2/3") | 0.03% | -0.01% | -0.02% |
| Operation of Iris & Zoom | Manual | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Filter Thread | M 27 P= 0.5 | ||
| Weight (approx.) | 80 g | ||
| Dimension | Ø 31 (max.) x L = 70 (x0.14) ~ 105.5 (x0.62) mm | ||
