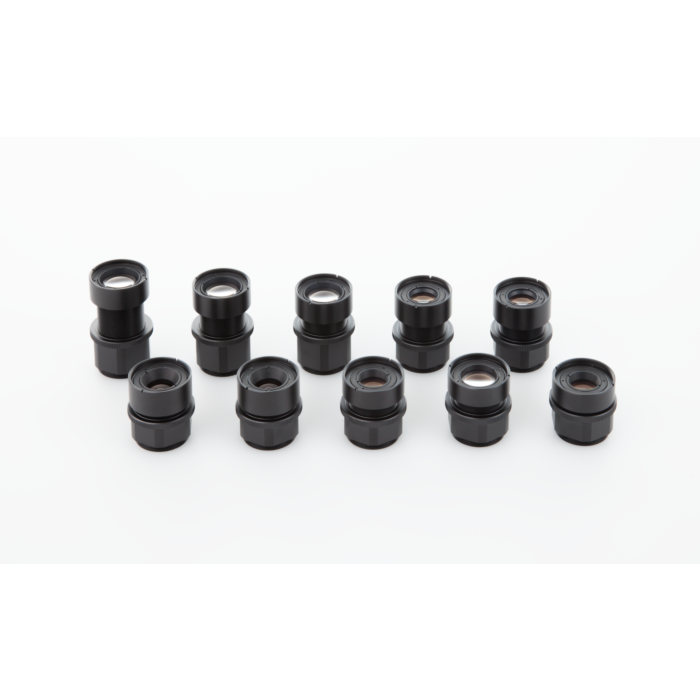

VS Technology VS-MCA75 Front Angled Group View

VS Technology VS-MCA75 Vibration Resistant Distortionless Macro Lens

VS Technology VS-MCA4 Vibration Resistant Distortionless Macro Lens

Explore the VS-MCA4 Vibration Resistant Macro Lens series by VS Technology for distortionless, high-resolution imaging in industrial applications. Ruggedized and compact design.
SKU
VS-MCA4

Precision Imaging Redefined: VS-MCA4 Vibration Resistant Macro Lens Series

Unveil the unparalleled imaging capabilities of the VS-MCA4 Vibration Resistant Distortionless Macro Lens Series by VS Technology. With a focal range from 4mm to 75mm across 10 meticulously crafted models, these lenses are engineered for optimal performance in industrial and machine vision applications. The torque body ensures easy mounting control, facilitating seamless integration into any vision system while freeing up valuable space.

Designed for rugged environments, the VS-MCA4 series boasts vibration-resistant technology, ensuring consistent and reliable imaging in challenging conditions. The fixed iris adds to the precision, allowing for stable aperture settings. The C-Mount compatibility ensures versatility across various imaging setups.


Features:

  • Vibration-resistant and distortionless imaging
  • Focal range: 4mm to 75mm with 10 models
  • Torque body for easy mounting control
  • Compact C-Mount design
  • Ruggedized for challenging environments
  • Fixed iris for stable aperture settings


Applications:

  • Industrial automation
  • Machine vision systems
  • Precision manufacturing
  • Robotics and assembly lines
  • Quality control and inspection
Focal Length 4mm
Maximum Aperture Ratio 1: 2.0
Optical Mag. Range 0.01x ~ 0.04x
Optical Mag. x 0.01  x 0.02  x 0.04
FOV (V x H) 2/3"
1/2" - 480.0 x 640.0 | 240.0 x 320.0  | 120.0 x 160.0
1/3" - 360.0 x 480.0 | 180.0 x 240.0 | 90.0 x 120.0
WD 403.2 mm 196.2 mm 92.7 mm
O/I (Object & Imager distance) 449.7 mm 242.8 mm 139.4 mm
Aperture 2, 5.6, 8, 2, 5.6, 8, 2, 5.6, 8
Working F/# *Value at Iris open 2.1, 5.7, 8.1, 2.1, 5.7, 8.2, 2.1, 5.8, 8.3
TV Distortion (1/2") -0.23% -0.23% -0.24%
Operation of Iris & Zoom Manual
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1/2"
Filter Thread M 27 P= 0.5
Weight (approx.) 44 g
Dimension Ø 31 (max.) x L = 29 (x0.15) ~ 29.2 (x0.04) mm
