VS Technology VS-MCA35 Vibration Resistant Distortionless Macro Lens
Unleashing Precision with VS-MCA35 Vibration Resistant Macro Lenses

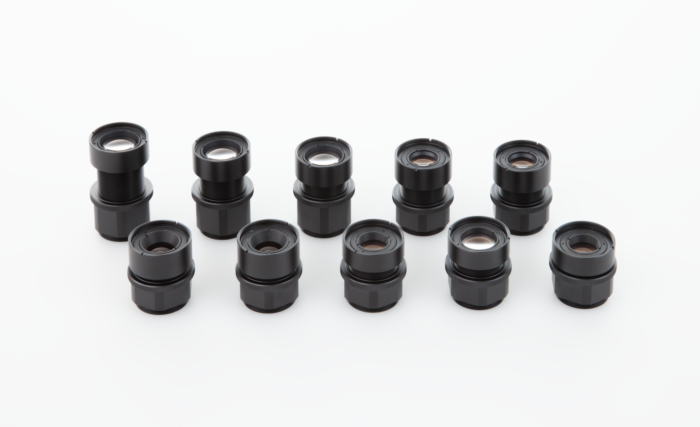

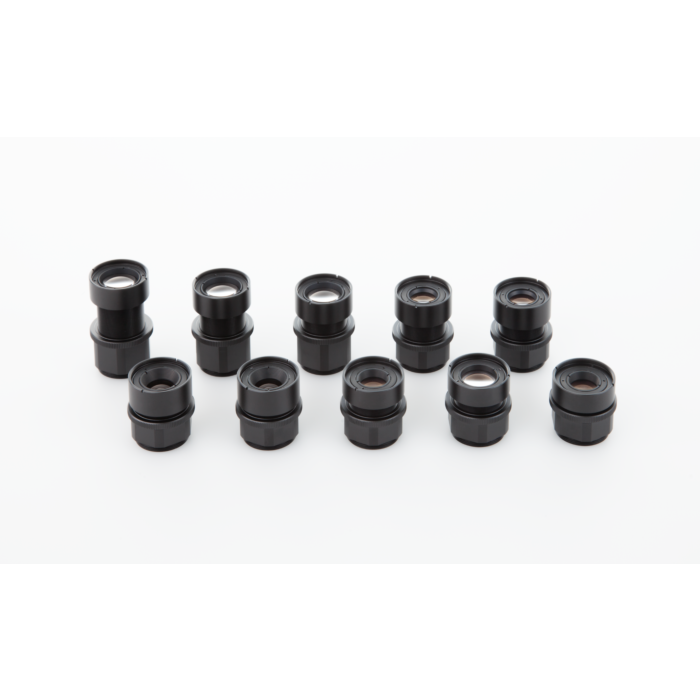

Elevate your industrial imaging experience with the VS-MCA35 Vibration Resistant Distortionless Macro Lens Series by VS Technology. With focal lengths ranging from f4mm to f75mm, this lens series offers 10 models tailored for diverse machine vision applications. The torque body design ensures easy mounting control, allowing seamless integration into vision systems while optimizing limited spaces.
Crafted with ruggedization and vibration resistance in mind, these lenses guarantee stability in challenging industrial environments. The fixed iris enhances reliability, ensuring consistent performance in varying lighting conditions. The C-Mount compatibility further enhances versatility, facilitating convenient installations in a wide array of vision setups.
The VS-MCA35 series caters to the demands of industrial and machine vision applications, providing unparalleled precision. Whether inspecting intricate components, monitoring production lines, or facilitating quality control processes, these lenses deliver distortionless imaging, allowing for meticulous analysis and enhanced decision-making. Elevate your industrial imaging capabilities with VSMCA35, where cutting-edge technology meets robust design.
Features:
- Vibration-resistant and ruggedized design
- Torque body for easy mounting control
- Focal lengths from f4mm to f75mm (10 models)
- Fixed iris for consistent performance
- Compact C-Mount for versatile installations
Applications:
| Focal Length | 35mm | ||
| Maximum Aperture Ratio | 1: 1.9 | ||
| Optical Mag. Range | 0.26x ~ 0.65x | ||
| Optical Mag. | x 0.26 | x 0.45 | x 0.65 |
| FOV (V x H) | 2/3" - 27.3 x 32.3 | 15.8 x 18.7 | 10.9 x 12.9 1/2" - 18.5 x 24.6 | 10.7 x 14.2 | 7.4 x 9.9 1/3" - 13.9 x 18.5 | 8.0 x 10.7 | 5.5 x 7.4 | ||
| WD | 163.9 mm | 107.0 mm | 83.1 mm |
| O/I (Object & Imager distance) | 213.4 mm | 163.2 mm | 146.3 mm |
| Aperture | 1.9, 5.6, 8, 1.9, 5.6, 8, 1.9, 5.6, 8 | ||
| Working F/# *Value at Iris open | 2.5, 7.1, 10.1, 3.0, 8.1, 11.6, 3.5, 9.2, 13.2 | ||
| TV Distortion (2/3") | 0.03% | 0.00% | 0.01% |
| Operation of Iris & Zoom | Manual | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Filter Thread | M 27 P= 0.5 | ||
| Weight (approx.) | 43 g | ||
| Dimension | Ø 31 (max.) x L = 32 (x0.26) ~ 45.7 (x0.65) mm | ||
