VS Technology VS-MCA30 Vibration Resistant Distortionless Macro Lens

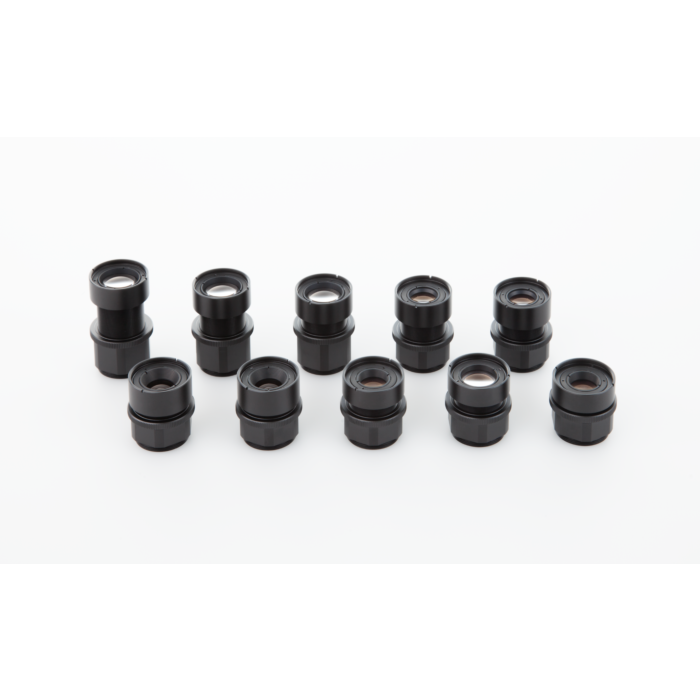

Unveiling the VS-MCA30 Vibration Resistant Distortionless Macro Lens Series
Discover the pinnacle of industrial imaging with the VS-MCA30 Vibration Resistant Distortionless Macro Lens Series from VS Technology. Engineered for precision, this lens series offers focal lengths ranging from 4mm to 75mm across 10 meticulously crafted models. The torque body ensures easy mounting control, and the fixed iris provides consistent optical performance.
Designed with a C-Mount, these lenses are perfect for integration into vision systems, freeing up valuable space in industrial setups. The ruggedized construction guarantees durability in challenging environments, making it ideal for machine vision applications where reliability is paramount. The vibration-resistant feature further enhances stability, ensuring distortionless imaging even in dynamic conditions.
Features:
- Focal lengths: 4mm to 75mm
- Torque body for easy mounting
- C-Mount for versatile integration
- Ruggedized, vibration-resistant design
- Fixed iris for consistent performance
Applications:
| Focal Length | 30mm | ||
| Maximum Aperture Ratio | 1: 2.0 | ||
| Optical Mag. Range | 0.06x ~ 0.45x | ||
| Optical Mag. | x 0.06 | x 0.25 | x 0.45 |
| FOV (V x H) | 2/3" - 118.3 x 140.0 | 28.4 x 33.6 | 15.8 x 18.7 1/2" - 80.0 x 106.7 | 19.2 x 25.6 | 10.7 x 14.2 1/3" - 60.0 x 80.0 | 14.4 x 19.2 | 8.0 x 10.7 |
||
| WD | 513.5 mm | 133.5 mm | 80.1 mm |
| O/I (Object & Imager distance) | 555.5 mm | 181.2 mm | 133.8 mm |
| Aperture | 2, 5.6, 8, 2, 5.6, 8, 2, 5.6, 8 | ||
| Working F/# *Value at Iris open | 2.4, 5.9, 8.5, 2.9, 7.0, 10.0, 3.3, 8.1, 11.6 | ||
| TV Distortion (2/3") | 0.11% | -0.07% | -0.09% |
| Operation of Iris & Zoom | Manual | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Filter Thread | M 27 P= 0.5 | ||
| Weight (approx.) | 39 g | ||
| Dimension | Ø 31 (max.) x L = 24.5 (x0.06) ~ 36.2 (x0.45) mm | ||
