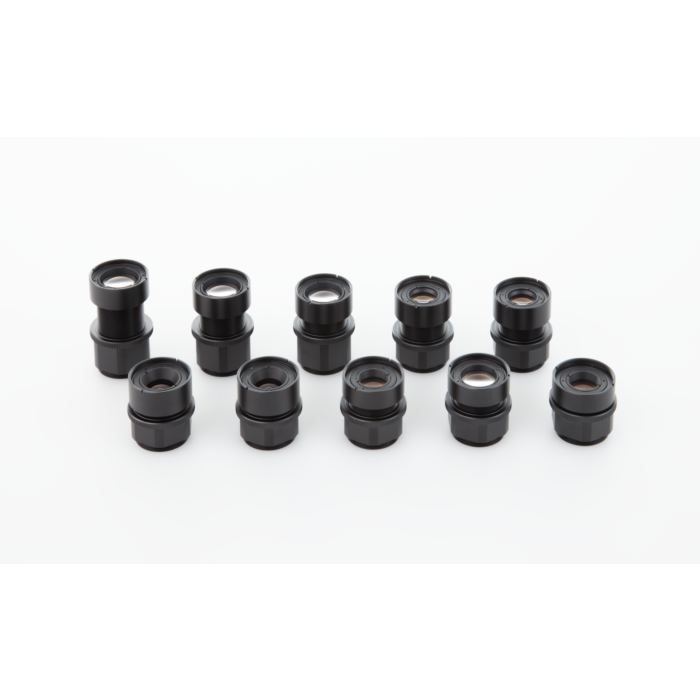

VS Technology VS-MCA25 Vibration Resistant Distortionless Macro Lens
Enhance Industrial Imaging with VS-MCA25 Vibration Resistant Macro Lens
Immerse yourself in the cutting-edge imaging technology with the VS-MCA25 Vibration Resistant Distortionless Macro Lens Series, available exclusively at Aegis Electronic Group. These lenses, ranging from f4mm to f75mm across 10 models, redefine industrial camera capabilities. The torque body ensures precise mounting control, enabling seamless integration into any vision system while conserving valuable space.
Crafted with a ruggedized and vibrations-resistant design, the VS-MCA25 series guarantees optimal performance in demanding industrial environments. The fixed iris enhances image stability, providing distortionless macro imaging with unparalleled clarity. The C-Mount compatibility ensures versatile application possibilities across various systems.
Features:
- Vibration Resistant Design
- Distortionless Macro Imaging
- Torque Body for Precise Mounting
- Ruggedized Construction
- Fixed Iris for Image Stability
- C-Mount Compatibility
Applications:
- Machine Vision Systems
- Industrial Automation
- Quality Control
- Robotics
- Manufacturing Processes
| Focal Length | 25mm | ||
| Maximum Aperture Ratio | 1: 2.0 | ||
| Optical Mag. Range | 0.05x ~ 0.5x | ||
| Optical Mag. | x 0.05 | x 0.25 | x 0.5 |
| FOV (V x H) | 2/3" - 142.0 x 168.0 | 28.4 x 33.6 | 14.2 x 16.8 1/2" - 96.0 x 128.0 | 19.2 x 25.6 | 9.6 x 12.8 1/3" - 72.0 x 96.0 | 14.4 x 19.2 | 7.2 x 9.6 |
||
| WD | 514.6 mm | 106.6 mm | 55.6 mm |
| O/I (Object & Imager distance) | 559.1 mm | 156.3 mm | 111.6 mm |
| Aperture | 2, 5.6, 8, 2, 5.6, 8, 2, 5.6, 8 | ||
| Working F/# *Value at Iris open | 2.1, 5.9, 8.4, 2.5, 7.0, 10.0, 3.0, 8.4, 12.0 | ||
| TV Distortion (2/3") | 0.06% | -0.06% | -0.12% |
| Operation of Iris & Zoom | Manual | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Filter Thread | M 27 P= 0.5 | ||
| Weight (approx.) | 38 g | ||
| Dimension | Ø 31 (max.) x L = 27 (x0.05) ~ 38.5 (x0.5) mm | ||
