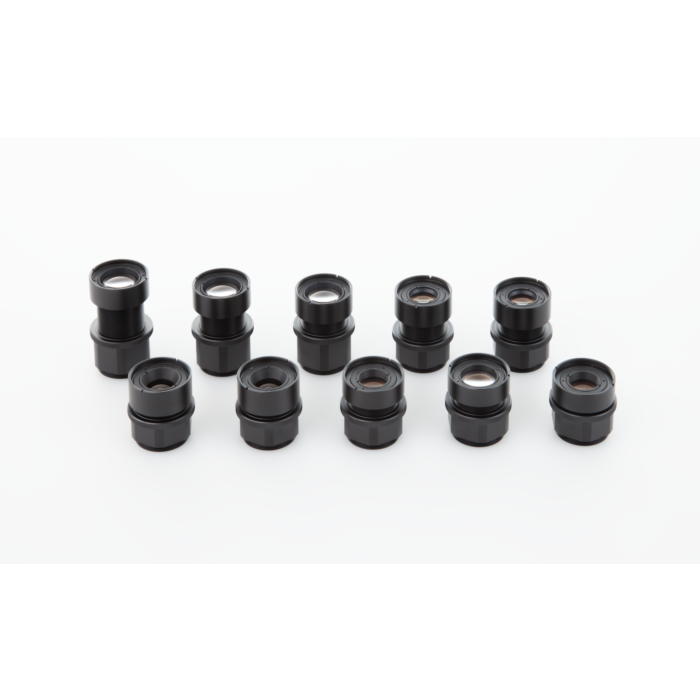

VS Technology VS-MCA15 Vibration Resistant Distortionless Macro Lens
Precision Optics Redefined: VS-MCA15 Vibration Resistant Macro Lens
Unlock unparalleled precision with the VS Technology VS-MCA15 Vibration Resistant Distortionless Macro Lens Series. This series, offering focal lengths from 4mm to 75mm across 10 meticulously designed models, delivers exceptional imaging solutions for industrial and machine vision applications. The torque body ensures easy mounting control, allowing seamless integration into your vision system while optimizing limited spaces. Its ruggedized construction and vibration-resistant features make it a reliable choice in demanding environments. With a fixed iris, the VS-MCA15 provides consistent performance for your imaging needs.
The C-Mount compatibility further enhances flexibility, making it compatible with a wide range of industrial cameras. Elevate your industrial automation processes with this lens series, experiencing distortionless imaging that is crucial for precise inspections and measurements. Whether you are in automotive, electronics, or pharmaceuticals, the VS-MCA15 caters to diverse applications, ensuring unmatched image quality and reliability. Trust in our lens technology to bring clarity to your machine vision endeavors.
Features:
- Vibration-resistant and ruggedized design
- Torque body for easy mounting control
- Fixed iris for consistent performance
- C-Mount compatibility
- Focal lengths from 4mm to 75mm
Applications:
- Industrial Automation
- Automotive Inspection
- Electronics Manufacturing
- Pharmaceutical Quality Control
| Focal Length | 15mm | ||
| Maximum Aperture Ratio | 1: 2.0 | ||
| Optical Mag. Range | 0.03x ~ 0.3x | ||
| Optical Mag. | x 0.03 | x 0.2 | x 0.3 |
| FOV (V x H) | 2/3" - 236.7 x 280.0 | 35.5 x 42.0 | 23.7 x 28.0 1/2" - 160.0 x 213.3 | 24.0 x 32.0 | 16.0 x 21.3 1/3" - 120.0 x 160.0 | 18.0 x 24.0 | 12.0 x 16.0 |
||
| WD | 490.7 mm | 65.4 mm | 40.3 mm |
| O/I (Object & Imager distance) | 536.1 mm | 113.4 mm | 89.8 mm |
| Aperture | 2, 5.6, 8, 2, 5.6, 8, 2, 5.6, 8 | ||
| Working F/# *Value at Iris open | 2.1, 5.8, 8.2, 2.4, 6.7, 9.6, 2.6, 7.3, 10.4 | ||
| TV Distortion (2/3") | -0.01% | -0.13% | -0.22% |
| Operation of Iris & Zoom | Manual | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Filter Thread | M 27 P= 0.5 | ||
| Weight (approx.) | 42 g | ||
| Dimension | Ø 31 (max.) x L = 27.9 (x0.03) ~ 32 (x0.3) mm | ||
