VS Technology VS-MCA10 Vibration Resistant Distortionless Macro Lens

Experience precision like never before with the VS-MCA10 Vibration Resistant Macro Lens Series. Elevate your industrial imaging with distortionless optics. Explore now!
SKU
VS-MCA10

Unlock Precision with VS-MCA10 Vibration Resistant Distortionless Macro Lens

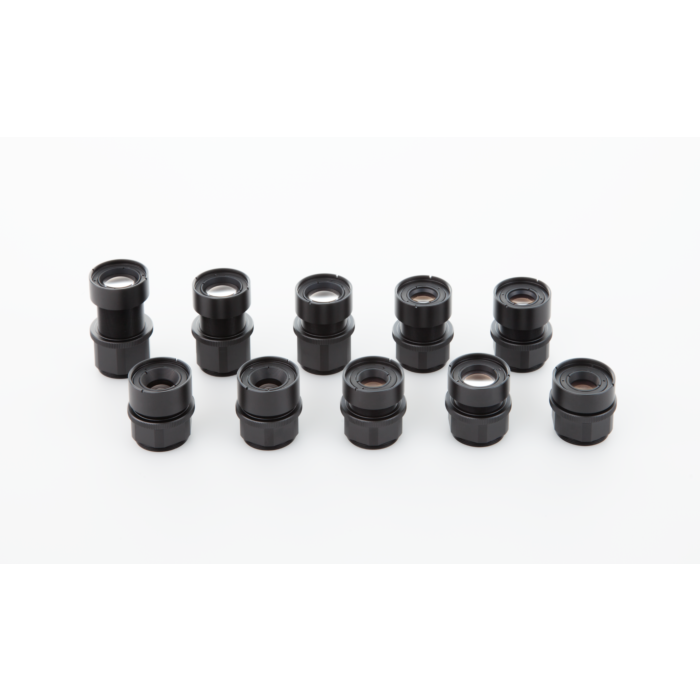

Immerse yourself in the cutting-edge world of industrial imaging with the VS-MCA10 Vibration Resistant Distortionless Macro Lens Series from VS Technology. Featuring a range from f4mm to f75mm across 10 models, these lenses redefine precision in machine vision applications. The torque body design ensures seamless mounting control, providing users with unparalleled flexibility. Ideal for vision systems, these lenses are compact and free up limited spaces, making them essential for constrained environments.

Crafted with ruggedized and vibration-resistant attributes, the VS-MCA10 series guarantees durability in challenging industrial settings. The fixed iris enhances stability, ensuring consistent performance. With a C-Mount design, these lenses seamlessly integrate into your existing vision equipment.

The VS-MCA10 series caters to diverse industrial and machine vision applications, offering distortionless optics for high-quality imaging. The lenses find their place in tasks demanding precision, accuracy, and reliability. Whether deployed in quality control, robotics, or inspection systems, these lenses empower users to achieve superior results. Elevate your industrial imaging experience with Aegis Electronic Group's VS-MCA10 Vibration Resistant Distortionless Macro Lens Series.


Features:

  • Vibration-resistant and ruggedized
  • Torque body for easy mounting control
  • Compact C-Mount design
  • Fixed iris for stability
  • Range from f4mm to f75mm


Applications:

  • Quality control and inspection systems
  • Robotics and automation
  • Limited space environments
  • High-performance machine vision setups
Focal Length 10mm
Maximum Aperture Ratio 1: 2.2
Optical Mag. Range 0.02x ~ 0.15x
Optical Mag. x 0.02  x 0.1  x 0.15
FOV (V x H) 2/3"
1/2" - 240.0 x 320.0 | 48.0 x 64.0  | 32.0 x 42.7
1/3" - 180.0 x 240.0 | 36.0 x 48.0 | 24.0 x 32.0
WD 504.1 mm 94.0 mm 59.9 mm
O/I (Object & Imager distance) 545.8 mm 136.5 mm 102.9 mm
Aperture 2, 5.6, 8, 2, 5.6, 8, 2, 5.6, 8
Working F/# *Value at Iris open 2.3, 5.7, 8.2, 2.4, 6.2, 8.8, 2.6, 6.4, 9.2
TV Distortion (2/3") 0.04% -0.04% -0.07%
Operation of Iris & Zoom Manual
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1/2"
Filter Thread M 27 P= 0.5
Weight (approx.) 40 g
Dimension Ø 31 (max.) x L = 24.2 (x0.02) ~ 25.5 (x0.15) mm
