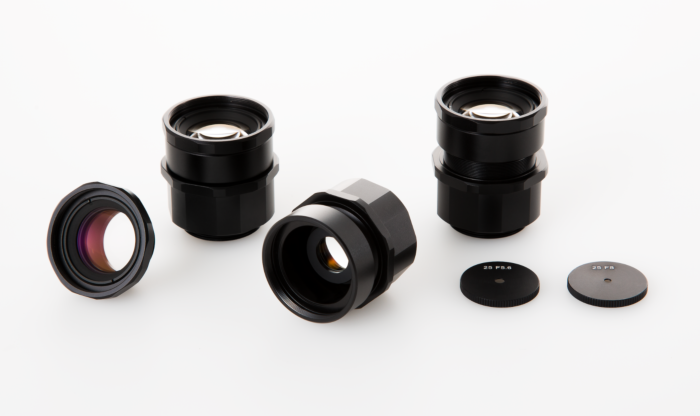

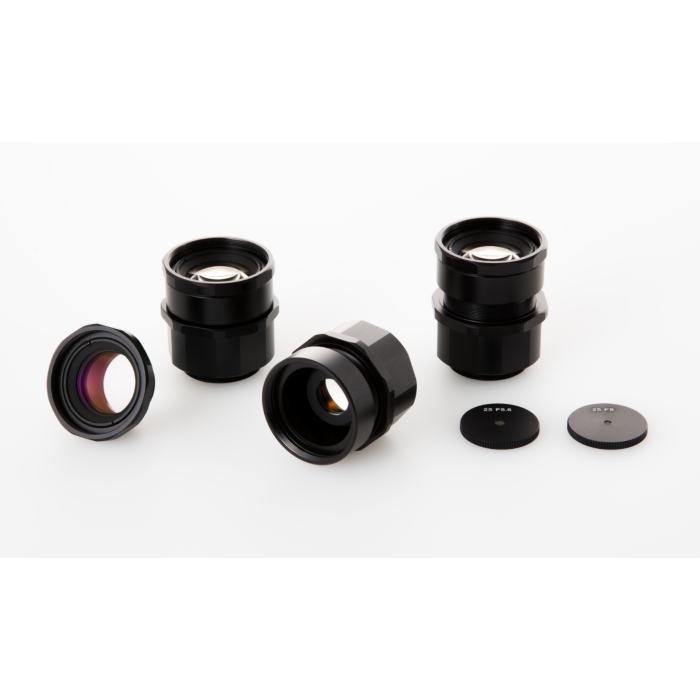

VS Technology VS-MC35H1 High Resolution Ruggedized Lens
Unleash Precision with VS-MC35H1 High-Resolution Ruggedized Lens
The VS Technology VS-MC35H1 is a cutting-edge high-resolution ruggedized lens tailored for 1" format industrial cameras. Boasting a versatile focal length range from f8mm to f50mm across six models, it incorporates a changeable iris plate system with options of Fno 1.4, 5.6, and 8. The threaded iris plate system not only facilitates easy adjustment but also locks securely in place, preventing dust generation from vibrations. The torque body ensures seamless mounting control, contributing to stable imaging in demanding industrial environments.
Connections are optimized for 1" support, offering unmatched optical precision. This ruggedized lens excels in applications where high-resolution imaging is paramount, providing clarity and accuracy. Its robust design is vibration-resistant, making it ideal for challenging environments. Whether in manufacturing, quality control, or machine vision applications, the VS-MC35H1 delivers unparalleled performance, ensuring your industrial imaging needs are met with precision and reliability.
Features:
- 1" format support
- F8mm - F50mm focal length range
- Changeable iris plate system (Fno 1.4/5.6/8)
- Threaded iris plate system for secure adjustment
- Torque body for easy mounting control
- Vibration-resistant design
Applications:
- Industrial imaging
- Machine vision
- Manufacturing
- Quality control
- Challenging environments
| Focal Length | 35mm |
| Maximum Aperture Ratio | 1: 1.4 |
| Angle Of View (1") | 18.3° x 18.3° (Diagonal: 25.8°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | -0.31 % |
| Operation | Manual |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 30.5 P= 0.5 |
| Weight (approx.) | 72 g |
| Dimension | Ø 36.5 (max.) x L = 35 mm |
