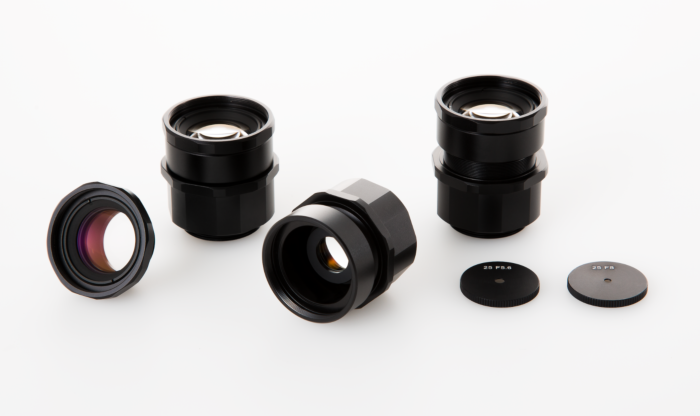

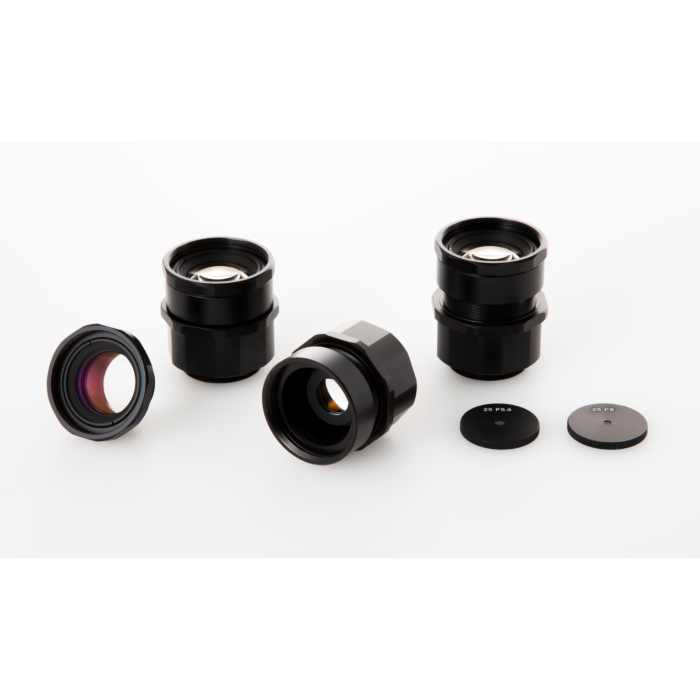

VS Technology VS-MC25H1 High Resolution Ruggedized Lens
Discover the Versatile VS-MC25H1 Lens for Industrial Imaging
Unleash the power of precision with the VS Technology VS-MC25H1 High-Resolution Ruggedized Lens, designed for 1" format industrial cameras. This lens series boasts six models covering an impressive focal range from F8mm to F50mm, catering to diverse imaging needs. The innovative Changeable Iris plate system offers F-number options of 1.4, 5.6, and 8, ensuring adaptability to varying lighting conditions.
Ensuring stability in imaging environments, the lens features a Threaded Iris plate system that locks the iris securely, preventing dust generation from vibrations. The Torque body facilitates easy mounting control, allowing users to optimize positioning effortlessly.
This lens is a game-changer for industrial and machine vision applications, providing unmatched clarity and resolution. The 1" support enhances compatibility with a wide range of cameras, while the ruggedized design ensures durability in challenging conditions. Ideal for robotics, quality control, and inspection systems, the VS-MC25H1 lens sets a new standard for industrial imaging.
Features:
- 1" format support
- F8mm to F50mm focal range
- Changeable Iris plate system
- Threaded iris plate system for dust resistance
- Torque body for easy mounting control
Applications:
- Robotics
- Quality control
- Inspection systems
- Industrial imaging
| Focal Length | 25mm |
| Maximum Aperture Ratio | 1: 1.4 |
| Angle Of View (1") | 25.1° x 25.1° (Diagonal: 35.4°) |
| M.O.D | 300 mm |
| TV Distortion (1.1") | -0.46 % |
| Operation | Manual |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1" |
| Filter Thread | M 30.5 P= 0.5 |
| Weight (approx.) | 66 g |
| Dimension | Ø 36.5 (max.) x L = 33.5 mm |
