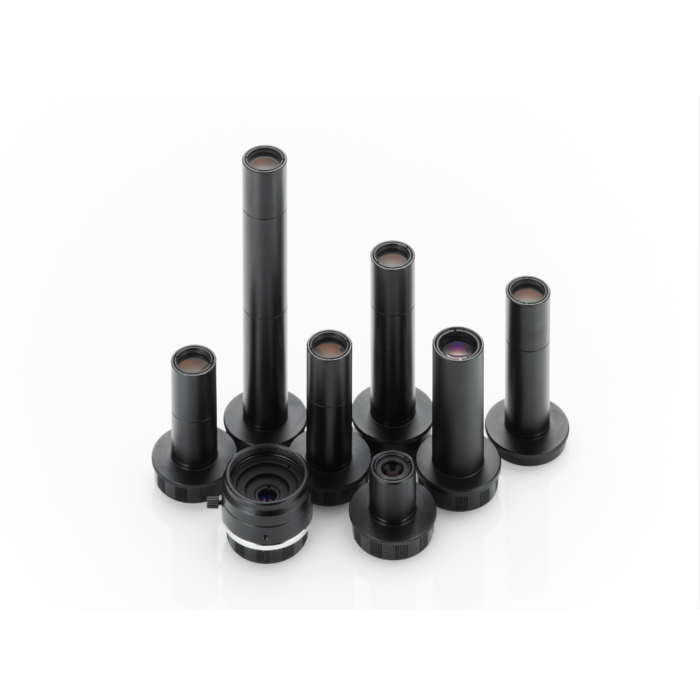

VS Technology VS-MC2-60 Fixed & Variable Magnification Macro Lens
Revolutionize Industrial Imaging with VS Technology VS-MC2-60 Macro Lenses
Unlock unparalleled precision in industrial imaging with the VS Technology VS-MC2-60 Macro Lens, available at Aegis Electronic Group. Engineered for 2/3" support, this lens series boasts 15 models with fixed magnification (0.1x-2.0x Φ16) and 2 models with variable magnification (0.24x-1.0x Φ16). The lens's advanced optical connectivity ensures high-resolution vision, making it a standout choice for machine vision applications.
The VS-MC2-60 Macro Lens is designed to meet the demands of industrial automation, providing crystal-clear imaging for inspection, quality control, and production processes. Its versatile magnification options cater to diverse applications, from detailed inspections of small components to broader overviews. The lens's precision optics guarantee sharp and accurate imaging, empowering businesses with the visual acuity needed for critical decision-making.
Features:
- 15 models with fixed magnification (0.1x-2.0x Φ16)
- 2 models with variable magnification (0.24x-1.0x Φ16)
- 2/3" sensor support
- Precision optics for high-resolution vision
- Versatile magnification options for diverse applications
Applications:
- Industrial Automation
- Quality Control
- Inspection Processes
- Production Line Monitoring
- Detailed Component Inspection
| Focal Length | 43.9mm | ||
| Optical Mag. | x 2 ± 5 % | ||
| FOV (V x H) | 2/3" - 3.6 x 4.2 1/2" - 2.4 x 3.2 1/3" - 1.8 x 2.4 |
||
| WD | 57.5 mm ± 2 | ||
| O/I (Object & Imager distance) | 198.8 mm | ||
| Working F/# *Value at Iris open | 12.1 | ||
| NA | 0.083 | ||
| DOF at PCoC Ø 0.04mm | 0.2 mm | ||
| TV Distortion (2/3") | 0.00% | ||
| Relative Illuminance (Y=5.5) | 99 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 34 g | ||
| Dimension | Ø 30 (max.) x L = 123.8 mm | ||
